- Description
- 2 HP wheel spindle motor
- Fine graduation on travels
- High precision cartridge wheel spindle
- High precision and smooth roller way table
- Auto lubrication on leadscrews and ways
- Fine grain high tensile casting construction
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Tool box
- Hoisting set
- Leveling Pads
- Coolant/Dust system
- Standard permanent magnet chuck
- Manufacturer
- Specifications
- Custom Freight

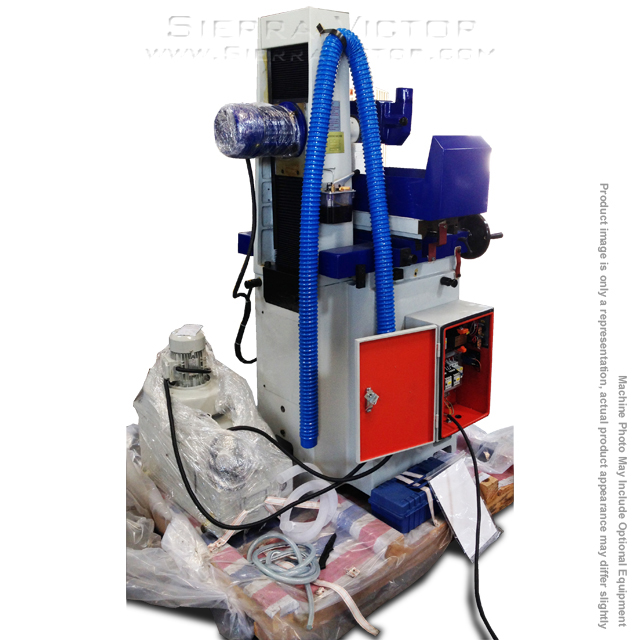

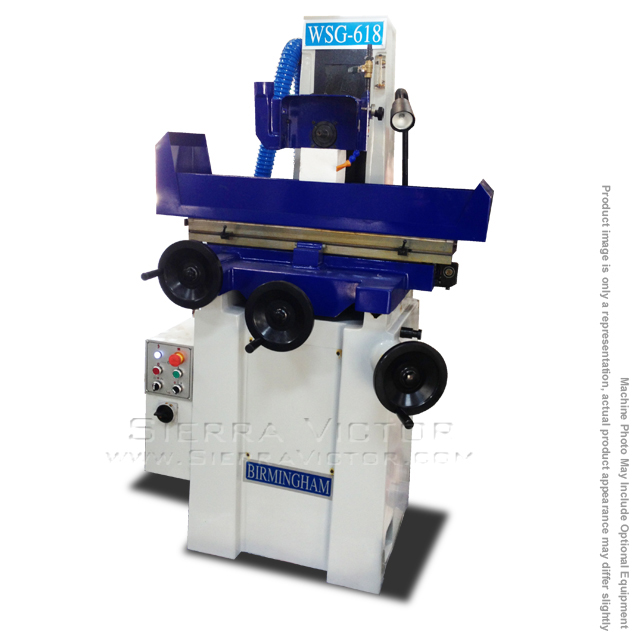

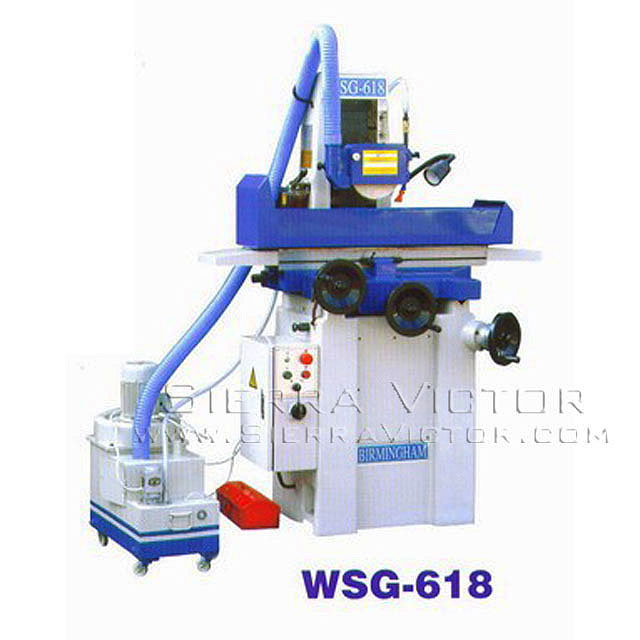

BIRMINGHAM 6" x 18" Manual Surface Grinder WSG-618
STANDARD EQUIPMENT:
ITEM: 6" x 18" Manual Surface Grinder
MANUFACTURER: BIRMINGHAM
MODEL: WSG-618
Manufacturer:
Birmingham
Machine Type
Machine Category:
Grinders - Surface
Control:
Manual
|
MODEL
|
WSG-618
|
|
Table size
|
6" x 18"
|
|
Max. Length to be ground
|
18.5"
|
|
Max. width to be ground
|
6.5"
|
|
Max. Height to be ground
|
14"
|
|
Max. distance from spindle center to table
|
15-3/4"
|
|
Max. Longitudinal travel
|
19"
|
|
Max. cross travel
|
7"
|
|
Longitudinal travel per revolution
|
4-1/8"
|
|
Cross Travel per revolution
|
0.2"
|
|
Cross travel per graduation
|
0.0008"
|
|
Vertical travel per revolution
|
0.05"
|
|
Vertical travel per graduation
|
0.00025"
|
|
Peripheral speed of wheel
|
110 ft/s
|
|
Spindle speed
|
3,600 RPM
|
|
Grinding Wheel Size
|
8" x 1/2" x 1-1/4"
|
|
Spindle Motor
|
2 HP
|
|
Dust Collector Motor
|
1/2 HP
|
|
Coolant Pump
|
0.05 HP
|
|
Lubrication Pump
|
0.02 HP
|
|
Net Weight
|
1,600 lbs.
|
|
Overall Dimensions (L x W x H)
|
55" x 39" x 71"
|
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
