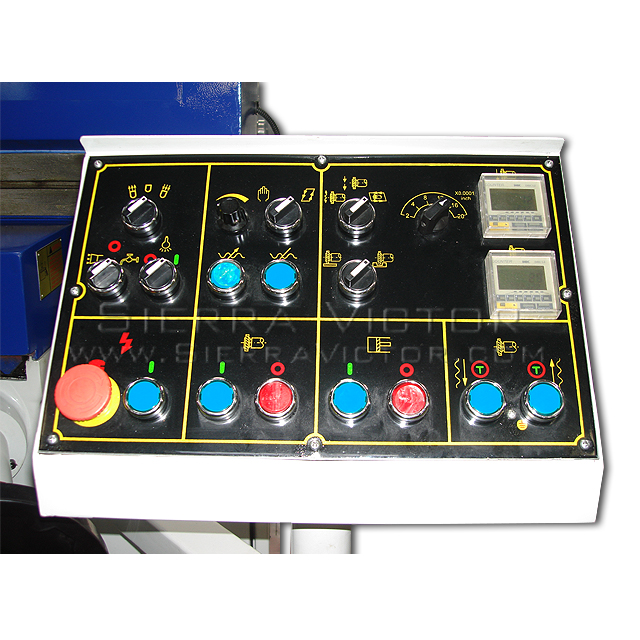

- Precision 3-Axis Auto, Surface Grinder with Chuck, Coolant
- AHD means: Auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.
- COLUMN: Enlarged, Double wall, Strong ribbed column, especially suitable for heavy duty grinding
- CONSTRUCTION: Construction of table, saddle and base is casted with high grade casting iron, strongly ribbed.
- SPINDLE: Enlarged spindle set is supported by 4 pieces of preloaded precision angular contact ball bearings for heavy duty
- SLIDEWAYS: Vertical, cross (double vees) and longitudinal (one vee & one flat) slideways are coated with Turcite-B, provides stable movement and durable accuracy
- AUTOMATIC CONTINUOUS LUBRICATION SYSTEM: All slideways and screws are fully oiled by automatic continuous lubrication system to eliminate wears on slideways & screws.
- CROSS FEED: Ball screw for cross travel, powered by AC Motor
- VERTICAL FEED: Powered by servo motor
- HYDRAULIC TABLE: Table speed ranges 5-25m/min. with rack and pinion table drive for hand operation
- PROXIMITY SWITCH: Provide built-in-type (hidden) proximity switch, features safe and easy operation
- TABLE SPEED CONTROL: Presettable hydraulic table speed control allows operator to pre set speed rate, enable to get same speed rate when engaging hydraulic table everytime.
- HAND WHEELS: Zero-setting slip rings with vernier on vertical hand wheel and vernier on crossfeed hand wheel.
- Grinding Wheel
- Grinding Wheel Flange
- Wheel Balance Stand
- Wheel Balance Arbor
- Diamond Wheel Dresser
- Wheel Flange Extractor
- Working Light System
- Lubrication System
- Coolant System
- Full Length Splash Guard
- Manufacturer
- Specifications
- Custom Freight
- Video

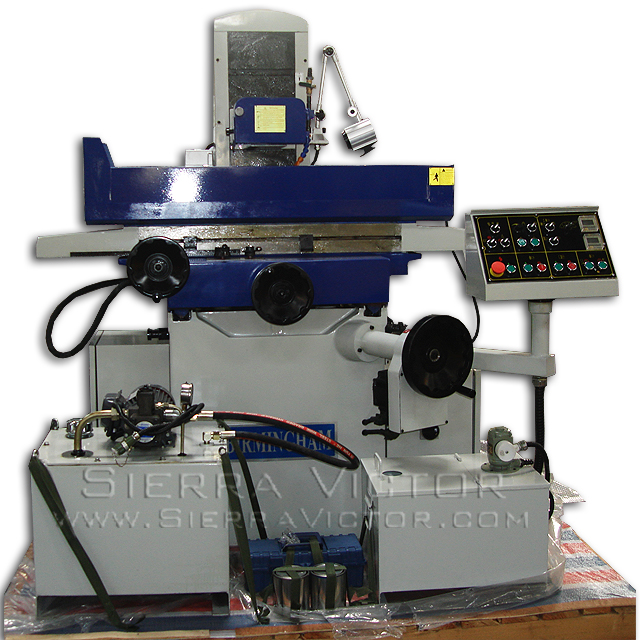

BIRMINGHAM 16" x 40" Precision 3-Axis Auto Surface Grinder WSG-1640AHD
STANDARD EQUIPMENT:
ITEM: 16" x 40" Precision 3-Axis Auto Surface Grinder
MANUFACTURER: BIRMINGHAM
MODEL: WSG-1640AHD
Manufacturer:
Birmingham
Machine Type
Machine Category:
Grinders - Surface
Control:
Automatic
|
MODEL
|
WSG-1640AHD
|
|
|
Table Size
|
16" x 40"
|
|
|
Max. longitudinal travel
|
44.49"
|
|
|
Max. Cross Travel
|
17.72"
|
|
|
Max. distance from spindle center to table
|
22.84"
|
|
|
Magnetic chuck size
|
15.75" x 39.37"
|
|
|
Speed of table longitudinal movement (in/min)
|
275" - 905"
|
|
|
Table transverse movement
|
Auto feed (in/min)
|
0.004" - 0.3"
|
|
Rapid speed (in/min)
|
39"
|
|
|
Feed of handwheel (in/div.)
|
0.0008"
|
|
|
Wheelhead vertical movement
|
Auto feed (in/stroke)
|
0.0002" - 0.002"
|
|
Rapid speed (in/min)
|
9.45"
|
|
|
Feed of handwheel (in/div.)
|
.0002"
|
|
|
Grinding Wheel
|
Speed (60 Hz)
|
1750 RPM
|
|
Size (OD X W X ID)
|
13.8" x 1.6" x 5"
|
|
|
Motor of spindle
|
7.5 HP
|
|
|
Max. loading capacity of table
(include magnetic chuck) |
1,300 lbs.
|
|
|
Height of machine
|
75"
|
|
|
Floor space (L x W)
|
175" x 95"
|
|
|
Gross weight
|
8,820 lbs.
|
|
|
Package dimensions (L x W x H)
|
117" x 90" x 87"
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
