** FREE SHIPPING TO COMMERCIAL ADDRESS THAT CAN OFFLOAD**
SHIPPING IS TO LOWER 48 STATES ONLY. OTHER AREAS PLEASE EMAIL FOR FREIGHT QUOTES.
- Description
- ** FREE SHIPPING TO COMMERCIAL ADDRESS THAT CAN OFFLOAD**
- ACCURACY
Every Betenbender machine is thoroughly inspected and tested.
1.Parallelism is maintained between bed and ram or at preset angle by using precision automatic leveling controls. Parallelism is maintained at +/-.002" in low speed.
2.The ram bottom reversal point is controlled by precise limit switches referenced off the bed. This isolates housing deflections, which can interfere with its accuracy. - ENHANCED PRODUCTIVITY
Return speed and rapid advance facilitates high cycle rates. Operator control is simplified by slow and press speed, thus work
spoilage is avoided. Rapid advance with automatic change. The point of speed change is fully adjustable by electric limit switch.

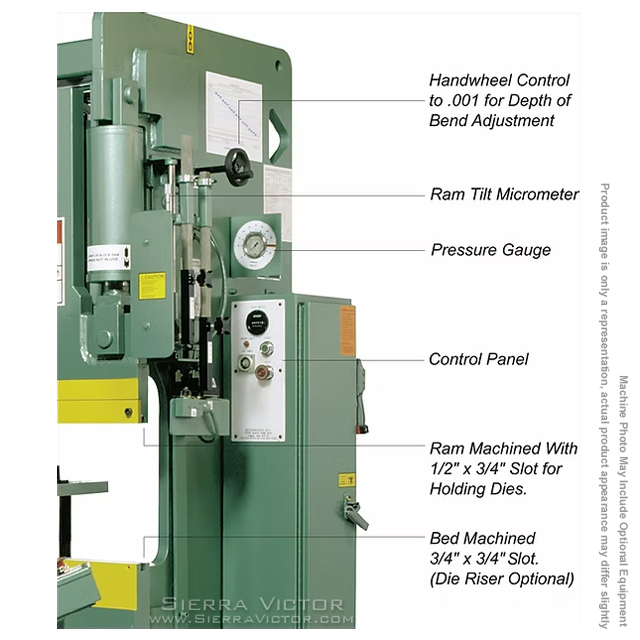

Micrometer type tilt adjustment is graduated in .001" increments permitting ram tilt adjustments up to 1/2" in either direction. - ELECTRO MECHANICAL STROKE CONTROL is bed referenced.
Bottom limit is manually set with a lead screw and displayed by an mechanical readout calibrated in .001" increments. - VERSATILITY
BETENBENDER'S press brakes have long full tonnage strokes, adjustable length and selectable speed combinations, adjustable height for short stroke, 2-speed standard and the optional 3- speed for adjustable low speed to prevent whip - ELECRICAL EQUIPMENT
Meets requirements of NFPA no.79, JIC and construction requirements of the latest ANSI B-11.3 Standards. Includes drip-proof, continuous duty 45 degree Celsius ambient hydraulic pump motor wired for 230 or 460 volt, 3 phase 60 hertz. - DEPENDABILITY
Self-lubricating replaceable non-metallic ways prevent galling and provide long service life. Cylinders are high-strength, all steel. To minimize wear and provide a superior oil seal, inside cylinder surfaces are honed to a mirror finish.
Compact, precision machined aluminum manifold incorporates off-the shelf components, minimizes piping and consolidates "O" ring mounted valves.
Quiet, vane type, constant volume pumps. In keeping with good hydraulic design practice, these energy efficient pumps are located outside the reservoir.
Filtration of contaminants as small as 10 microns is accomplished with intake and discharge filters. A built-in magnetic trap and air breather filter provides added protection against contaminants. Reservoir of large capacity facilitates effective heat dissipation. A fluid level gauge is provided. - CONTROL
Main Control Cabinet - NEMA 12 enclosures mounted in the right housing containing: magnetic non-reversing motor starter and 120 volt circuit.
Main motor START button and STOP button are illuminated.
RAM UP and RAM DOWN buttons.
RUN/JOG Switch.
Fusible disconnect. - MAINTENANCE
Clevis mounted cylinders eliminate cylinder binding by reducing the possibility of oil leaks from cylinder binding.
(Pins & bushings do not rotate under load, this reduces excessive wear) - MADE IN USA
- Clamp Type Back-gauge-Manual Adjustable X,Y,Z
- NEMA Electrics
- All Hydraulic Fluid Included
- American Made Motor
- Three Speed (95T and Larger)
- Hour Meter
- Lifetime Telephone Support @ No Charge
- Bottom Time Delay

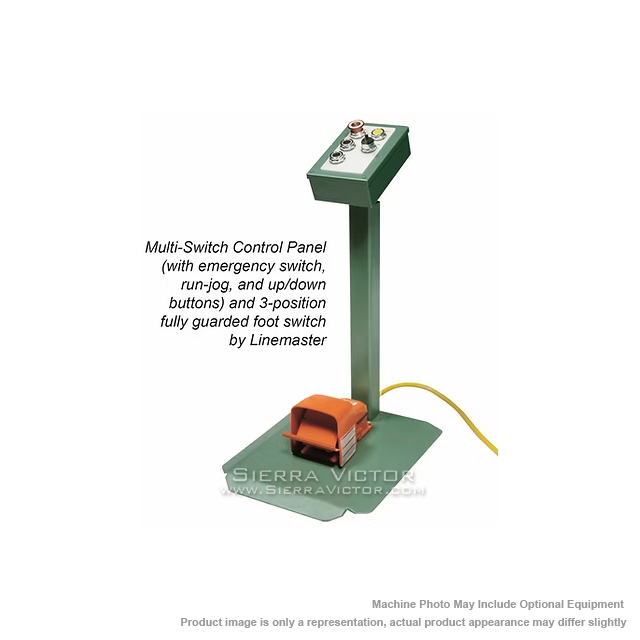

- Three Position Foot Pedal
- Depth Stop w/Digital Readout
- All Steel Construction
- Disconnect Switch
- Two-Speed Ram
- All Components Available from Local Suppliers
- Manufacturer
- Specifications
- Options/Accessories

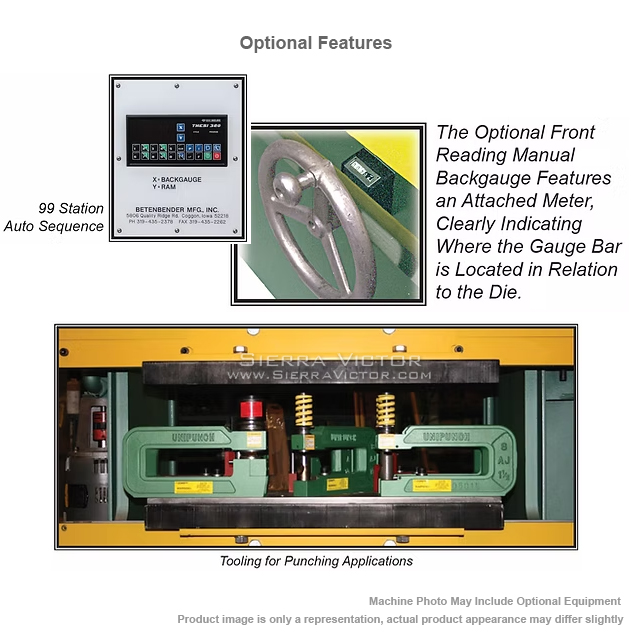

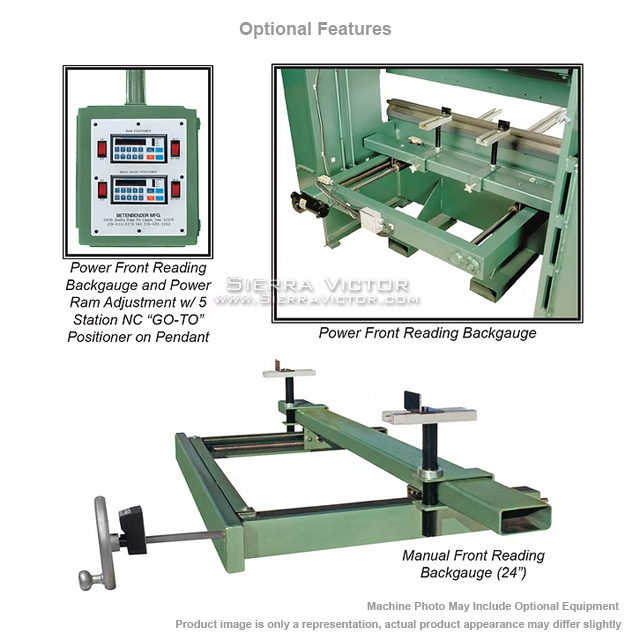

- *Manual Front Reading Backgauge (24") w/Mechanical Readout
- Power Front Reading Backgauge w/5 Station NC "Go To" Controller on Pendant
- Power Ram Adjustment w/5 Station NC "Go To" Controller on Pendant
- Extra Length on Backgauge
- Micrometer Precision Gauge Unit (2 Required)
- CNC Ram Stop
- CNC Backgauge

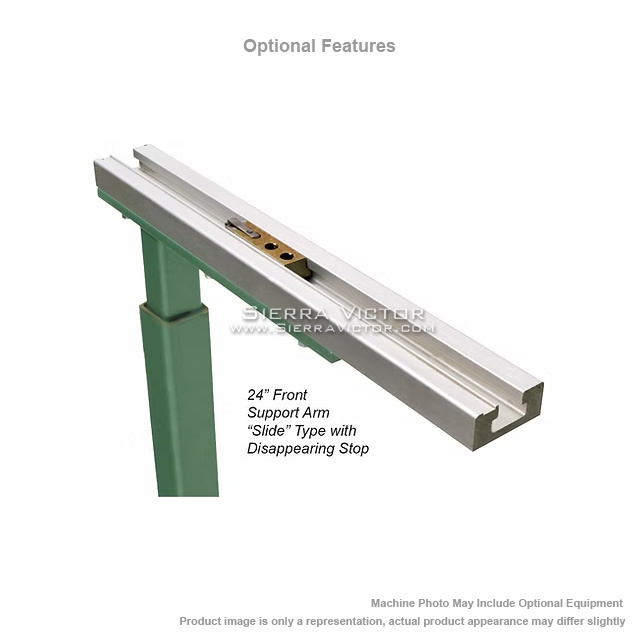

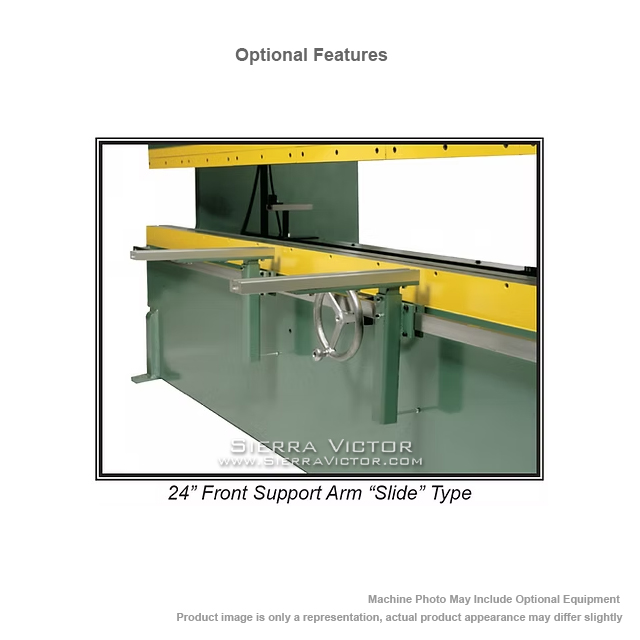

- *24" Support Arms "Slide" Type
- Extend Support Arms (each)
- Disappearing Stops
- *Work Light
- *Variable Tonnage Control
- *One Shot Lubrication
- Automatic Lubrication
- Oil Cooler

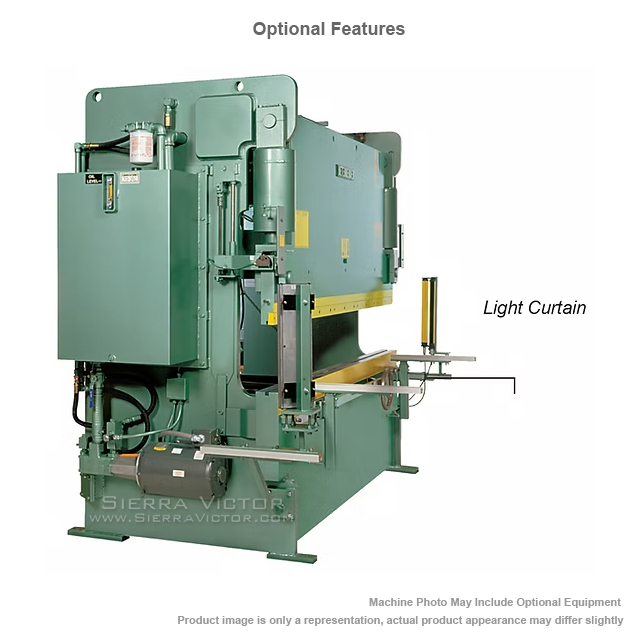

- *Light Curtain w/Full Fence

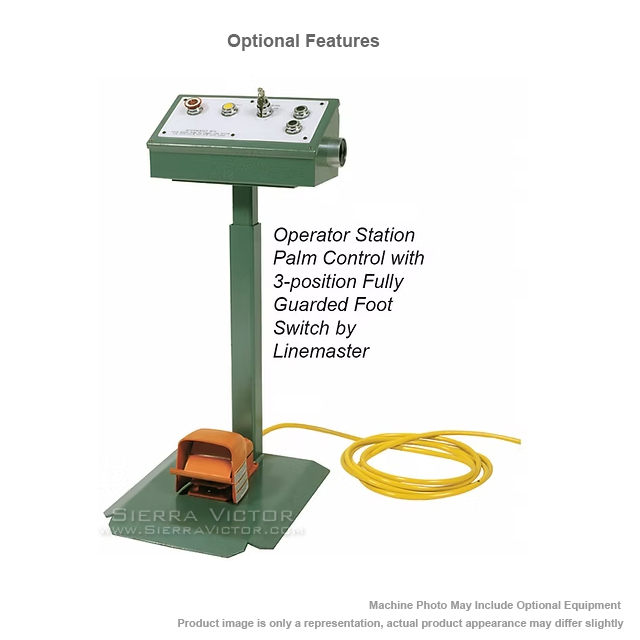

- *Operator Station Palm Control
- Additional Foot Pedal w/Key Lock
- Palm Buttons/Foot Control System (Hand buttons to preset height, stop and hold, foot to continue to shut height.)
- Dove Tails or T-Slots
- Ram Machining
- Bed Machining Angle Brackets
- Angle Brackets (Plates) for Top (4"x4") 18" Shorter than Bed
- Angle Brackets (Plates) for Bottom (4"x4") 18" Shorter than Bed
- Increase Throat Gap or Increase Open Height
- Increase Stroke Length
- Keylock Switch
- Die Rollover Bars (Recommended for 4/Way Dies)
- Air Lift (Recommended for 4/Way Dies)
- Dual Calibration
- 208V
- Crating Charge (Not An Export Crate) Still Requires Tarping
- Special Paint Colors
- Bolt/Shim Kit for Leveling
- Ram Stop Control (1/4" Above Die)
- Rigging, Lagging, Leveling & Electrical Hook Up is Customers Responsibility
- NOTE: DIE RISERS NOT FURNISHED
- ASK ABOUT OPTIONS NOT LISTED.
- ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.
- *RECOMMENDED OPTIONS
- Custom Freight
- Video
BETENBENDER Hydraulic Press Brake Model 6-120 6ft x 120 Ton
STANDARD EQUIPMENT:
ITEM: 6' x 120 Ton Hydraulic Press Brake
MANUFACTURER: BETENBENDER
MODEL: 6-120
Manufacturer:
Betenbender
Machine Type
Machine Category:
Press Brakes
Power Source:
Hydraulic
Metalworking
Pressure:
120+ Tons
Material Length:
6 ft (72 in.+)
Maximum Tonnage
|
120 Tons
|
|
Maximum Bending Length
|
72"
|
|
Maximum Stroke Length
|
8"
|
|
Closed Height
|
6"
|
|
Open Height
|
14"
|
|
Throat Depth
|
8"
|
|
Distance Between Housings
|
54-1/2"
|
|
Ram Repeatability
|
+/- .002"
|
|
Hydraulic Pressure
|
2,500 lbs.
|
|
Hydraulic Oil Capacity
|
65 gallons
|
|
Motor Horsepower
|
20
|
|
Machine Weight
|
17,000 lbs.
|
|

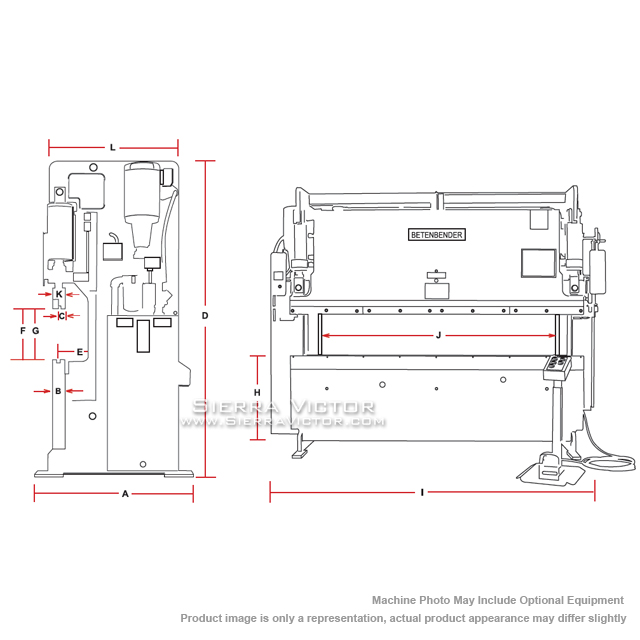

Machine Dimensions:
|
Overall Height
|
103"
|
Overall Length
|
100"
|
|
Overall Width
|
56.5"
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
