- Description

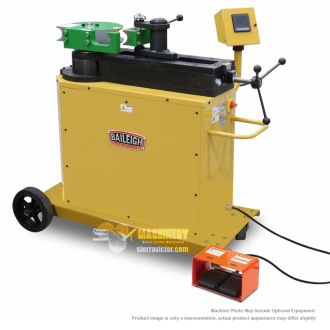

- Designed to be a workhorse in any shop for decades, the RDB-325 programmable tube/pipe bender can tackle a huge capacity of 2" schedule 80 pipes (mild steel T.S. 64,000 PSI) and 3" round tubing.
- 16" maximum centerline radius depending on material OD
- Runs on 220-volt single-phase power, so it will work in almost any fabrication setting
- Rotates up to 360° degrees in either direction, ideal for rod applications if you use our optional universal bending plate
- Comes standard with a simple-to-use touchscreen controller.
- Internal storage holds up to 170 programs of up to 10 bends per program.
- Also accepts memory cards (standard 2CB SD card, max) to store programs.

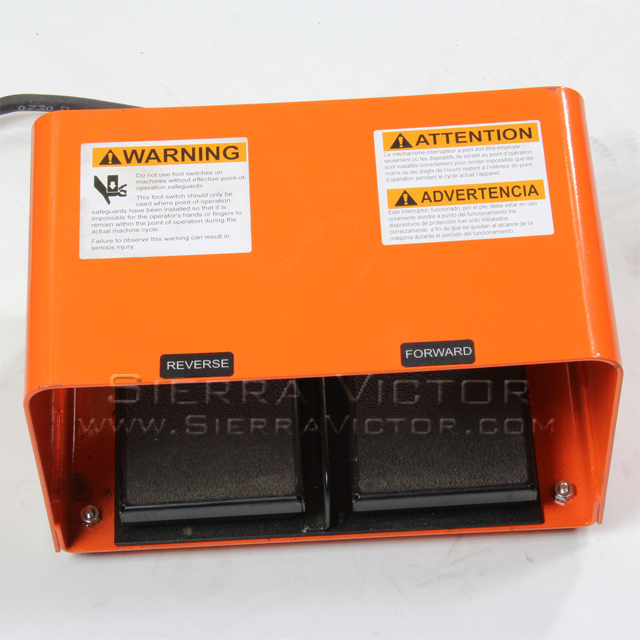

- Convenient foot pedal controls let you stop and start the machine while leaving your hands free.

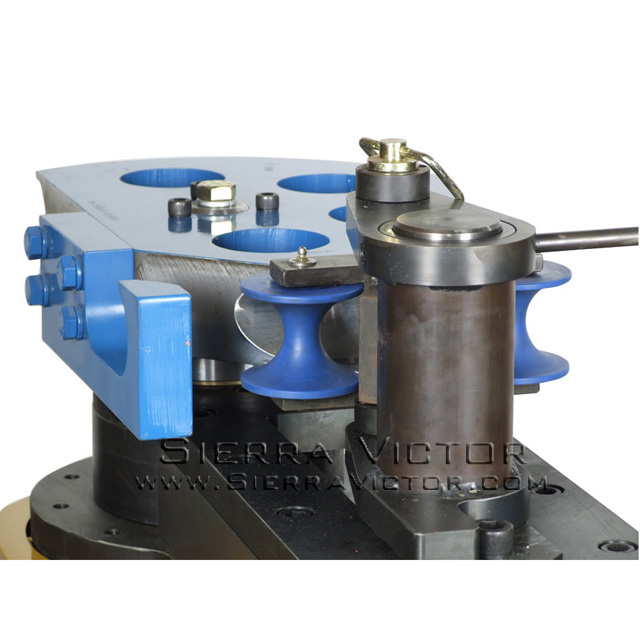

- Swing-away counter die system helps you save valuable time on tooling changes and increase your production.
- Compatible with over 5,000 optional die and tooling sets available from Baileigh Industrial. There’s sure to be one that can fit your application!
- You can add an optional indexing table to bend on varying planes and easily duplicate complex bends.
- Manufacturer
- Specifications
BAILEIGH 2 in. Programmable Pipe Bender RDB-325
ITEM: 2 in. Programmable Pipe Bender
MANUFACTURER: BAILEIGH
MODEL: RDB-325
PART# BA9-RDB325220
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Benders
Machine Sub-Category:
Tube & Pipe
Pipe Capacity |
2 in. |
Round Tube Capacity |
2 in. (.120) |
Round Stock Capacity |
1.25 in. |
Chromoly Round Tube |
3 in. (.083) |
Mild Steel Pipe Schedule 80 |
2 in. |
Aluminum Pipe Schedule 40 |
2.5 in. (.156) |
Center Line Radius |
16.5 in. |
Center Line Radius Min CLR |
0.5 in. |
Minimum OD |
0.25 in. |
Power |
220v, Single phase |
Weight |
1,100 lbs. |
Shipping Dimensions |
60 x 44 x 77 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
