- Description

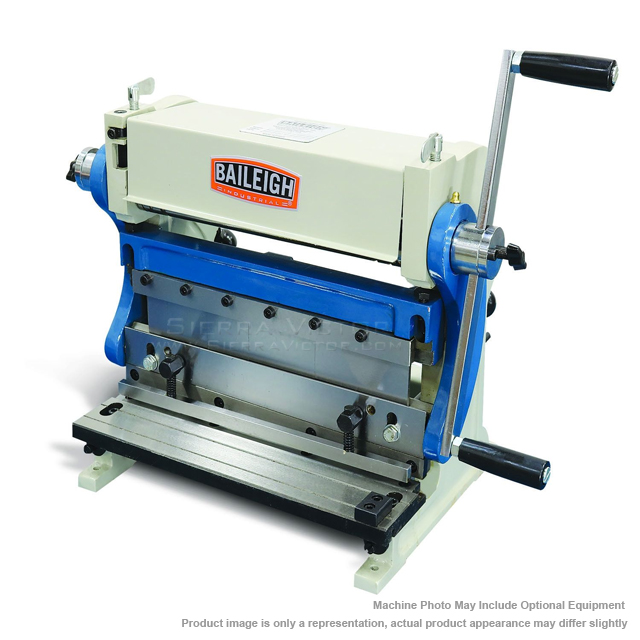

- The SBR-1220 is a manual shear, press brake, and slip roll all in one. Great for hobbyists, maintenance, and R&D shops, this combination machine saves space.
- Maximum capacity of 20 gauge mild steel for all functions.
- Handles material up to 12” wide, just right for those small jobs.

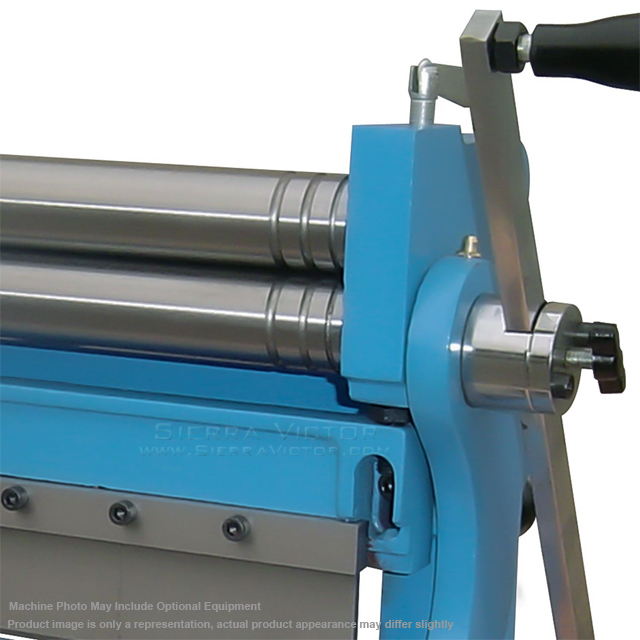

- Slip roll portion on top has hardened and polished shafts for long life.
- Minimum rolling diameter of 1.54”.
- 3 grooves in the roll let you form wire perfectly.
- Adjustable fingers on the top beam can make boxes of varying sizes with.
- Press brake portion in the middle gives you a maximum bend angle of 90° for perfect corners.
- You can tighten or loosen the frame and adjust the camber of the tooling for consistent bending across the material.

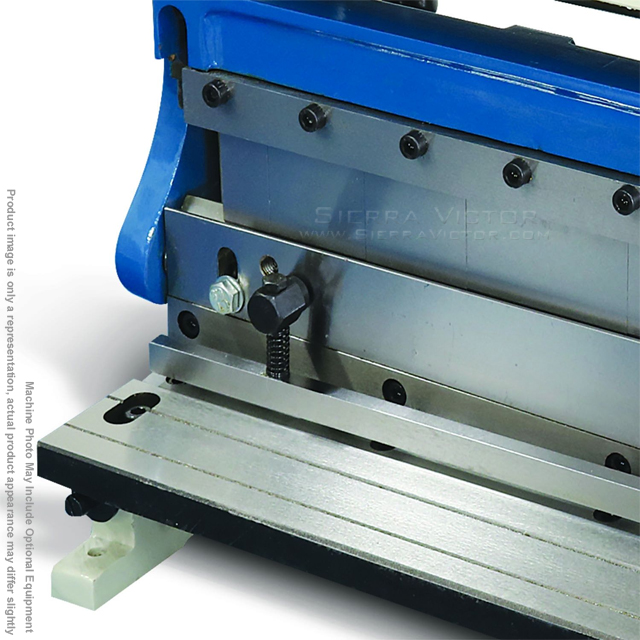

- Shear station uses hardened, reversible blades that stay sharp over a long lifetime of us.

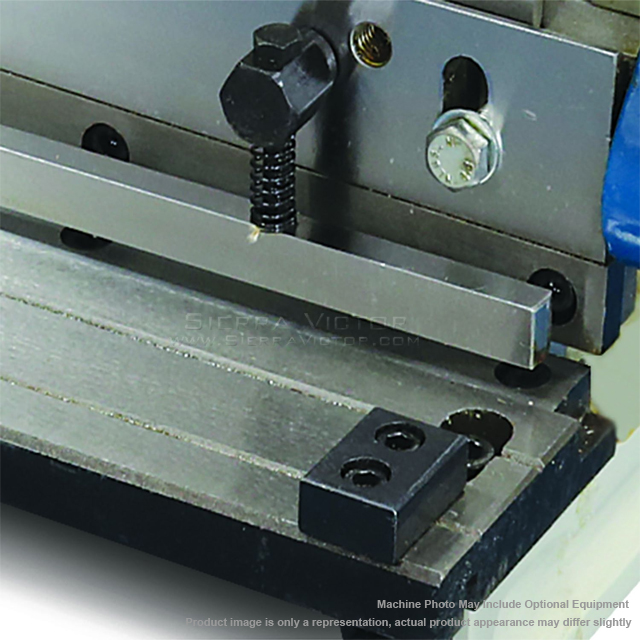

- Spring-loaded hold-down will save a time and waste when you’re shearing.
- Large, double-sided handles allow 2 operators to apply force.

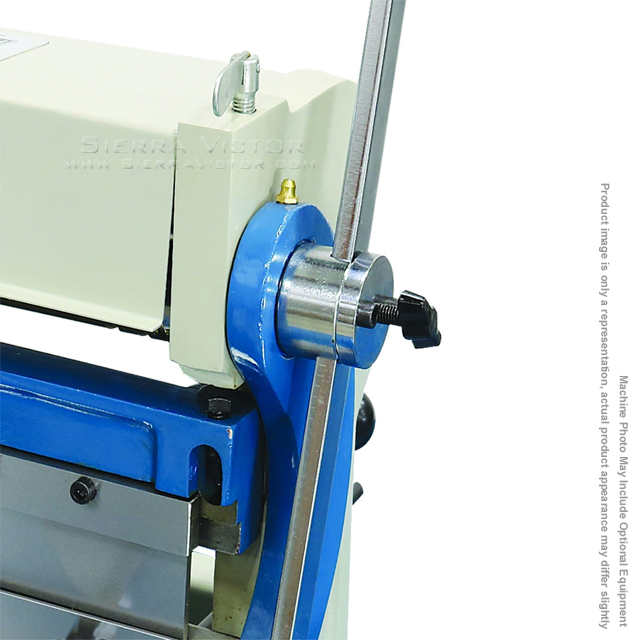

- You get one full up-down cycle out of each tool with one 360° turn of the handle.

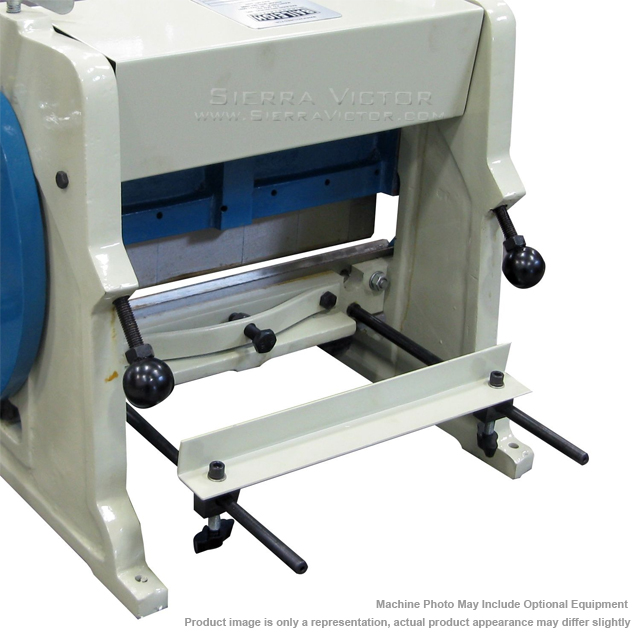

- Manual back gauge ensures repeatability on shear and brake projects.
- Weighs 125 lbs. with a powerful steel frame that maintains accuracy.
- Covered by a 1-year parts warranty.
- Comes with lifetime technical support by phone from our team of knowledgeable reps.
- Manufacturer
- Specifications
- Custom Freight
BAILEIGH 20 gauge Shear Brake Roll SBR-1220
ITEM: 12" x 20 ga. Shear, Brake & Roll
MANUFACTURER: BAILEIGH
MODEL: SBR-1220
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Shear/Brake/Roll - Combo
Control:
Manual
Metalworking
Material Length:
1 ft (12 in.+)
Mild Steel Capacity:
20 ga
Max. Material Thickness |
.019" |
Rolling Capacity |
20 ga. (.036”) |
Shear Capacity |
20 ga. |
Min. Rolling Dia. |
1.54" |
Bed Width |
12" |
Bending Capacity |
20 ga. (.036”) |
Maximum Bend Angle |
90° |
Power |
Manual |
Finger Lengths |
1", 2@2-1/8", 3-1/8", 4-1/8" |
Finger Thickness |
3/16" |
Shipping Dimensions (LxWxH) |
20" x 13" x 17" |
Shipping Weight |
125 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
