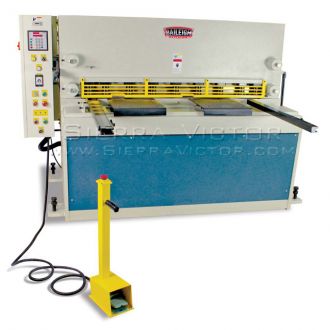

BAILEIGH 4' x 3 gauge Heavy Duty Metal Cutting Shear SH-5203-HD-NC

• Built for years of heavy cutting, this numerically controlled shear makes industrial production runs more efficient. Blade gap and rake angle adjustment ensure high cut quality.

• These hydraulic sheet metal shears cut up to 52”-wide sheet metal.
• Maximum capacity of ¼” mild steel.
• 15 hp motor runs on 220-volt 3-phase power.
• Upper blade carriage that rides in a 3-axis bearing housing.
• Heavy-duty precision ground and hardened rail system gives you unbeatable accuracy and long blade life.

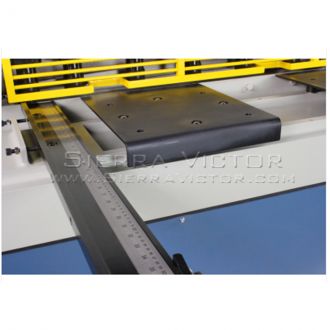

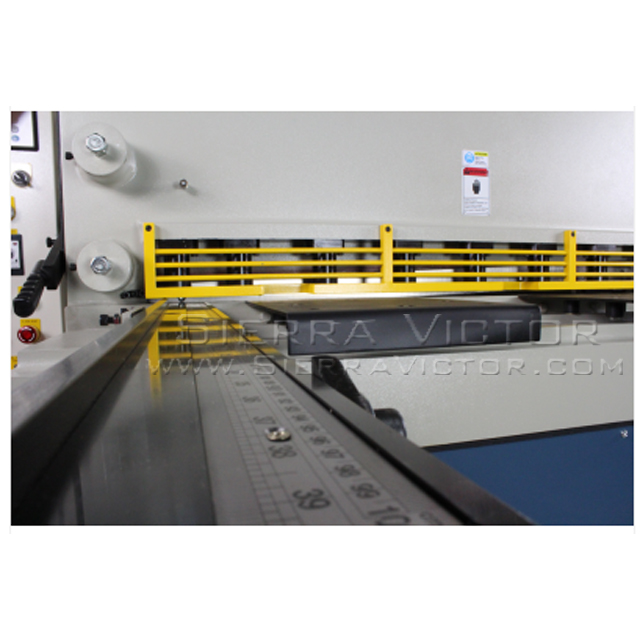

• Front and rear supports and side guides help you keep material square to the blade.
• Roller infeed table makes it easy to maneuver heavy plate steel for the next cut.

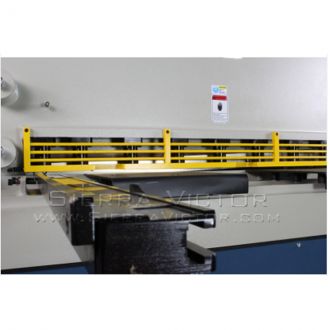

• 8 hydraulic hold-downs provide 3.2 tons of pressure each, preventing sheet metal from lifting.

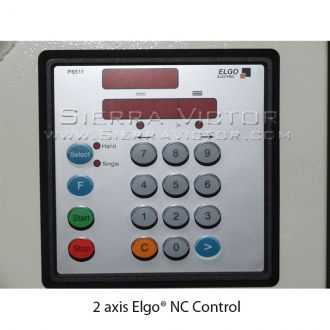

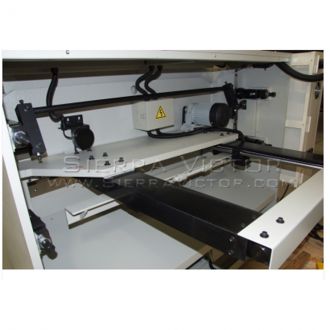

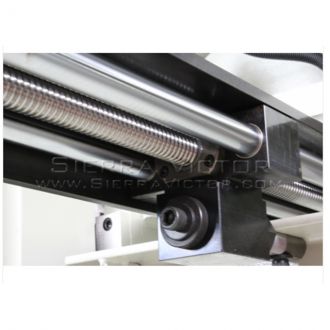

• Programmable quick-change backgauge rides on a screwball rail system with a positioning encoder.
• Switch between 3 modes as needed:
  • Jog mode: Inching the blade down to the material.
  • Single cycle mode: One cut for one pedal push.
  • Automatic cycling mode: Continuously cutting for production runs.
• Piece counter makes it simpler to do production runs.
• Remote operator control pendant houses an E-Stop button and foot pedal controls.
• Simple handle lets you adjust the blade gap in seconds to avoid crimping or folding, particularly with thinner material.

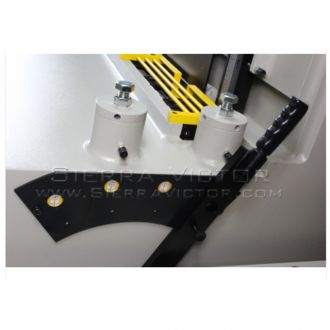

• Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics.
• It’s simple to set the rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle.
• High carbon chromium blades that have several edges (2 on top, 4 on bottom), so you can flip them several times before you need to resharpening.
• Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements.
• Fully welded plate steel framework maintains stability, reduces flex, and minimizes burr.
• Covered by a 1-year parts warranty.
• We stock blades and replacement parts at our Wisconsin warehouse; we can ship them out quickly.
