- Description
- This variable-speed manual cold saw will make burr-free cuts in larger pieces of material. The cast iron base and flood coolant system help the saw stay accurate for many years.
- Recommended for:
- Marine rails
- Playground equipment
- Hand railings
- Various chassis applications
- Other fabrication cutting jobs
- Marine rails
- Features include: Standard 14" blade (included), 4.7" round tube capacity at 90°, and runs on 220-volt single-phase power which will work in almost any shop

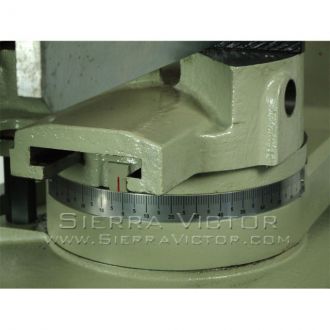

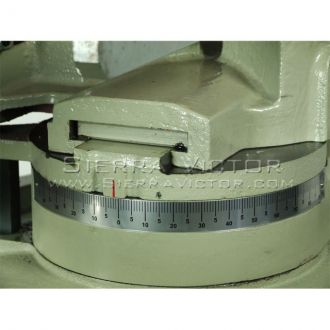

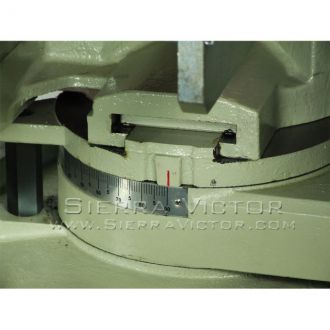

- Miters 45° left and right and can slot perpendicular to the material
- Cold saw machine cuts through solids, tubing, and pipe
- Fine-tune the variable speed from 24 to 120 rpm to improve cut quality

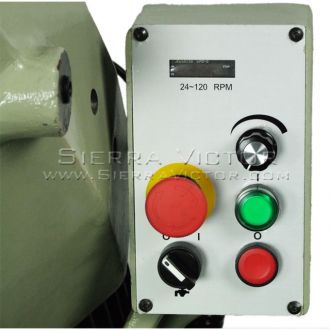

- Inverter-driven motor lets you adjust the blade speed with a digital readout that shows the blade speed to assist with repeatability
- 3 hp motor, coupled to a direct-drive gearbox, allows the blade to cut through the material chatter-free, so that blades last longer
- European-style vise helps increase production with a taper lock system that speeds up clamping and unclamping
- Vise clamps on both sides of the cut to reduce chatter and increase blade life while the serrated jaws provide maximum hold on the material
- Thick cast iron base, mounted on a heavy steel stand, stabilizes the saw to ensure accurate cutting for many years
- Flood coolant system allows for mill-like cuts, prolongs blade, and saw lifespan, and reduces operator effort while the powerful coolant pump lubricates the blade and washes metal chips away
- Manufacturer
- Specifications

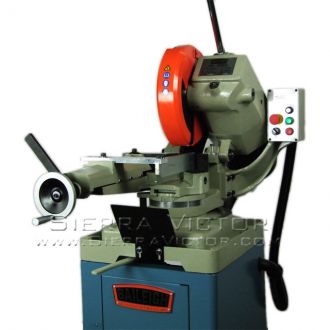

BAILEIGH 14 in. Variable Speed Circular Cold Saw CS-350EU
ITEM: 14 in. Variable Speed Circular Cold Saw
MANUFACTURER: BAILEIGH
MODEL: CS-350EU
PART# BA9-1002535
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Control:
Manual
Metalworking
Saw Capacity:
4"+
Max. Blade Diameter |
14 in. |
Tubing Round at 90° |
4.7 in. |
Solid Round at 45° |
3 in. |
Solid Round at 90° |
3.5 in. |
Tubing Rectangle at 45° |
3.5 x 2.8 in. |
Tubing Rectangle at 90° |
6.3 x 3.5 in. |
Tubing Square at 45° |
3.5 3.5 in. |
Tubing Square at 90° |
4.7 in. |
Vice Style |
Single Action with Cam Lock |
Blade Speed |
variable speed 24 to 120 rpm |
Motor |
3 HP |
Power |
220v, 1-phase |
Weight |
750 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
