- Description

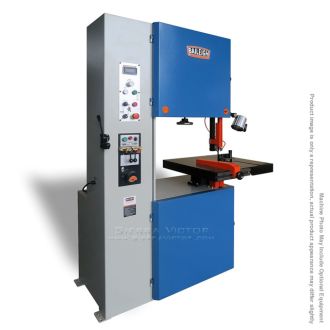

- The BSV-24VS-V2 is the largest non-mitering vertical bandsaw in our line up, this metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.
- 3 hp motor runs on 220-volt three phase power.
- Wide 23.6" throat depth.
- 12.2” maximum cutting thickness.
- Accepts standard 1/8” to 5/8” blades.
- Cast iron table can pivot left to right.

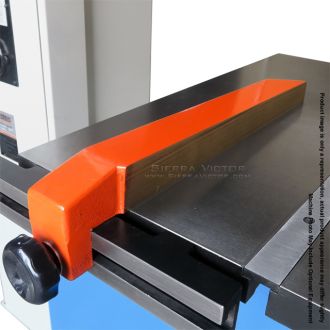

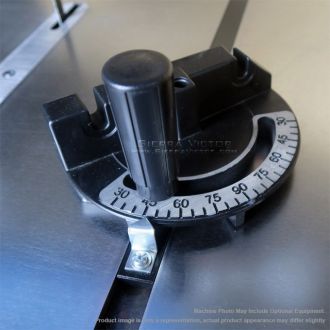

- Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
- Inverter controlled variable speeds from 85 to 2200 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
- DRO lets you see the blade speed, so you can choose the right settings for your material and extend blade life.
- This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
- Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
- Manufacturer
- Specifications
BAILEIGH 24 in. Vertical Band Saw BSV-24VS
ITEM: 24" Vertical Bandsaw
MANUFACTURER: BAILEIGH
MODEL: BSV-24VS-V2
STOCK# BA9-1230391
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Bandsaws
Control:
Variable Speed
Position:
Vertical
Material Type:
Metal
Metalworking
Saw Capacity:
24"+
Table Size (In.) |
24 x 24 in. (cast) & 7.8 x 24 in. (steel) |
Blade Size (In.) |
0.118 in. (13mm) x 14T |
Blade Length (In.) |
177.95 -179.13 in. (4520-4550mm) |
Blade Thickness |
0.032 |
Height (In.) |
86.22 |
Input Power |
220V - 3-Phase |
Motor (HP) |
3 hp |
Table Tilt (Deg.) |
15° Left, 45° Right |
Throat Depth (In.) |
23.6 |
Welder Capacity |
0.74 |
Speed Control |
Inverter |
Shipping Dimensions (L x W x H) (In.) |
53.54 x 33.46 x 85.43 in. |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
