- Description
- Need to cut at multiple angles in both directions? This dual-mitering band saw has a cast iron head and bow that can swivel 60° right and 45° left
- 10.5” round capacity at 90°.
- Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere.
- 2 hp motor, driven by an AC inverter, makes the machine reliable.
- Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts!
- Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market.
- 1” blade width.
- Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application.
- Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life.

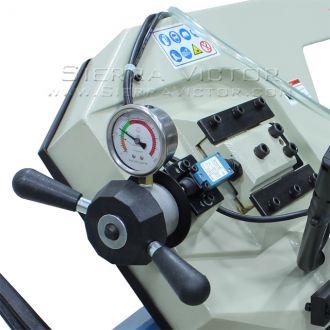

- Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension.
- Comes standard with a flood coolant system to wash away metal chips and help blades last longer.
- Modes of operation:
- Choose between 2 modes of operation, manual or hydraulic descent, depending on your preference and project.
- Manual descent mode:
- For small production runs.
- Perfect for small or medium sized fabricators’ needs.
- Turn on the machine via a trigger switch in the descent handle.
- Manually guide the band saw blade through the material.
- Hydraulic descent mode:
- For larger production runs.
- Increases blade life and reduces operator fatigue.
- Downfeed adjustment for feed pressure.
- Warranty and support:
- We cover this horizontal band saw with a 1-year parts warranty.
- Both the saw and replacement parts are typically in stock for fast deliveries.
- Includes lifetime technical support by phone. Call up our team of experienced reps any time for troubleshooting or project advice.
- Manufacturer
- Specifications
BAILEIGH 10.5 inch Dual Miter Band Saw BS-350M
ITEM: 10.5" Dual Miter Bandsaw
MANUFACTURER: BAILEIGH
MODEL: BS-350M
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Dual Miter
Position:
Horizontal
Metalworking
Saw Capacity:
10"+
Motor Hp |
2 |
Return |
Manual |
Miter Adjustment |
Dual Swivel Head |
Miter Angle |
0 – 60°, 45°L |
Motor |
High Torque 1.5Kw (AC) |
Capacity Round 90 x 45 x 60 x 45L |
10.63" x 9.45" x 6.3" x 8.28" |
Capacity Rectangular 90 X 45 X 45L |
13.77" x 8.66" x 9.45" x 6.3" 7.3" x 4.33" |
Capacity Square 90 x 45 x 60 x 45L |
10.24" x 8.66" x 5.9" x 7.09" |
Table Height |
35" |
Blade Guide |
Carbide x Roller |
Blade Speed (fpm) |
66–280 Variable |
Descent Control |
Hydraulic |
Drive |
Gear |
Power |
220V / 1-phase |
Shipping Dimensions |
69" x 29" x 44" |
Shipping Weight
|
864 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
