- Description
- You can control the descent of the BS-210M horizontal band saw in 2 ways: manually (with a trigger switch) or with a hydraulic descent features—usually seen only on more expensive models.
- With a good mix of features at an economical price, this horizontal metal bandsaw is ideal for small-to-medium machine shops or even garage or home shops.
- 1.5 hp motor requires only 110 volts to run, so you can use it anywhere.
- 6.75” round maximum capacity at 90°.
- Swivel head miters up to 60° and doesn’t compromise the holding power of the vise.
- Cast iron saw head and bow reduce vibrations and help to produce clean, accurate cuts.
- Accepts standard .75" blades.

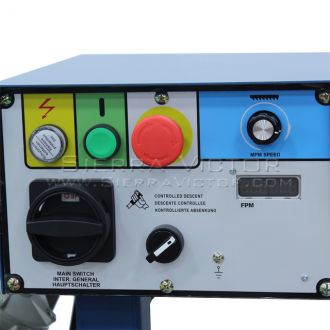

- You can adjust the infinitely variable blade speed from 66 to 280 fpm, controlled by an inverter, to produce quality cuts and prolong blade life.

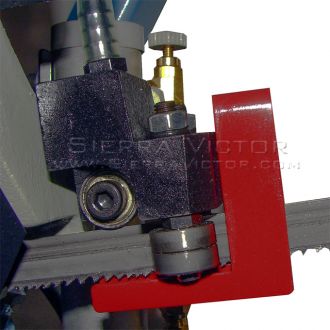

- Adjustable blade guides, attached to sealed ball bearings, get as close to the material as possible to keep alignment straight and prolong blade life.

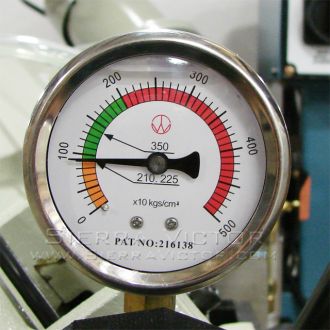

- Control the hydraulic descent pressure and choose the right speed to make a perfect cut for a given application.
- No need to monitor the machine! You can walk away; the blade will automatically stop once it’s done cutting the metal.
- Fully-welded steel plate frame stabilizes the machine and gives it the structural strength to cut at maximum capacity without straining.
- Baileigh covers this metal band saw with a 1-year parts warranty.
- Both the saw and replacement parts are usually in stock for fast deliveries.
- Lifetime technical support by phone lets you call our knowledgeable reps up whenever you need troubleshooting or advice on applications.
- Manufacturer
- Specifications
- Video

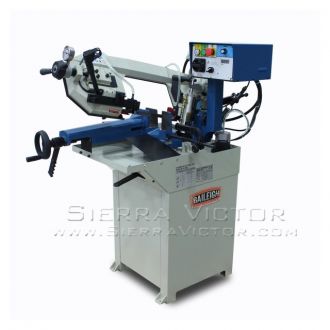

BAILEIGH 6.75 inch Horizontal Bandsaw BS-210M
ITEM: 7" x 8-1/4" Single Miter Horizontal Bandsaw
MANUFACTURER: BAILEIGH
MODEL: BS-210M
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Bandsaws
Control:
Variable Speed
Position:
Horizontal
Metalworking
Saw Capacity:
6"+
Country of Manufacture |
Taiwan |
Motor Hp |
1 |
Return |
Manual |
Miter Adjustment |
Swivel Head |
Miter Angle |
0 – 60° |
Motor |
High Torque .75Kw (AC) |
Capacity Rectangular 90° x 45° |
8.26" x 6.69" |
Capacity Round 90°/ 45° / 60° |
7" x 4.72" x 2.75" |
Capacity Square 90°/ 45° / 60° |
7" x 4.33" x 2.36" |
Table Height |
35" |
Blade Guide |
Carbide x Roller |
Blade Speed (fpm) |
66–280 Variable |
Descent Control |
Hydraulic |
Drive |
Gear |
Power |
110V |
Shipping Dimensions |
60" x 44" x 48" |
Shipping Weight
|
444 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
