- Description
- We built this semi-automatic band saw with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort.
- Maximum capacity of 13” OD round at 90°.
- Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
- Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.
- Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
- You can fine-tune the speed for materials like mild steel, bronze, or aluminum.

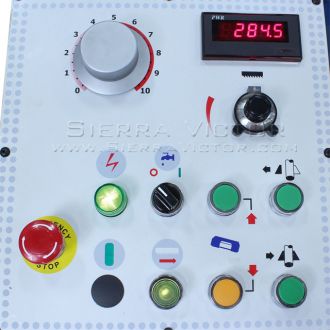

- Digital readout (DRO) allows you to reproduce settings with ease.
- Available in 220-volt or 440-volttriple-phase models (440-volt is a special order).
- Cast iron bow resists vibrations and helps to ensure a high-quality cut.

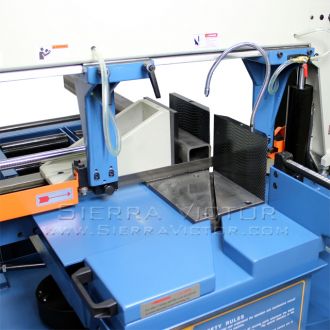

- Hydraulic vise, downfeed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest.
- You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life.
- Cutting head return position can be altered for faster cycle times between cuts on smaller pieces.
- Comes with heavy-duty infeed and outfeed tables for easier material handling.

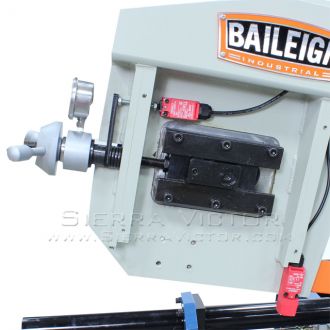

- Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge.
- Electro-welded steel framegives the machine structural strength to maintain accuracy.
- Compact floor plan conserves space in your shop.

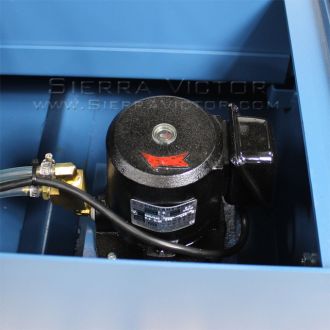

- High-pressure flood coolant system washes away metal chips and helps blades last longer.
- We typically keep this horizontal band saw and its parts in stockfor fast deliveries.
- Covered by a 1-year parts warranty.
- You can count on lifetime technical support by phone. Talk to a Baileigh rep with hands-on machine experience whenever if you need help.
- Manufacturer
- Specifications
BAILEIGH 13 inch Band Saw BS-20SA-DM
ITEM: 13" Dual Mitering Semi-Auto Band Saw
MANUFACTURER: BAILEIGH
MODEL: BS-20SA-DM
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Dual Miter
Control:
Semi-Automatic
Position:
Horizontal
Metalworking
Saw Capacity:
13"+
Country of Manufacture |
Taiwan |
Return |
Hydraulic |
Miter Adjustment |
Dual Miter Swivel Head |
Miter Angle |
0 – 60°, 45°L |
Motor |
3 HP |
Capacity Rectangle 90° |
13" x 18" / 13" x 10.6" / 12.4" x 7.7" |
Capacity Round 90°/ 45° / 60° |
13" x 12" x 8.5" |
Capacity Square 90°/ 45° / 60° |
13" x 12" x 8.5" |
Blade Guide |
Carbide / Roller |
Blade Speed (fpm) |
60 - 306 Inverter Driven |
Descent Control |
Pressure Assist Hydraulic |
Drive |
Inverter Direct |
Power |
220V or 440V 3-Phase (440V special order) |
Shipping Dimensions |
88.6" x 35.5" x 61.4" |
Shipping Weight |
2,156 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
