- Description
- The PR-514 metal plate roller is perfect for small and medium applications. It comes standard with time-saving features, like a DRO, foot pedal controls, and an additional hydraulic motor.
- 5' working width.
- 14 gauge mild steel capacity across its full width.
- 2 hp 220-volt single-phase motor transfers power directly to the driven rolls.
- Second hydraulic motor controls the movement of the back roll.
- Remote control pedestal includes foot pedal controls and buttons for advancing or retracting the back roll position.
- Digital readout displays back roll position so you can repeat bends easily.
- DRO is positioned at the head of the machine, giving you a good line of sight no matter where you’re standing.
- Rigid steel frame, machined to exacting tolerances, helps prevent deflection.
- Covered by a 1-year parts warranty.
- Includes lifetime technical support by phone from our team of reps with hands-on metalworking experience.
- Manufacturer
- Specifications
- Required products

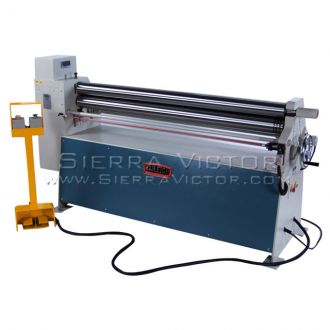

BAILEIGH 5' x 14 ga. Plate Roller PR-514
ITEM: 5' x 14 ga Hydraulic Plate Roll
MANUFACTURER: BAILEIGH
MODEL: BA9-1006546
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Plate Bending Rolls
Power Source:
Hydraulic
Metalworking
Material Length:
5 ft (60 in.+)
Mild Steel Capacity:
14 ga
Forming Width
|
60"
|
Roll Speed
|
6 rpm.
|
Upper Roll Dia.
|
3.50"
|
Roll Adjustment Back
|
Hydraulic
|
Minimum Forming Dia
|
5.25"
|
Motor
|
2 HP
|
Wire Grooves
|
Yes
|
Capacity (Mild Steel)
|
14 ga. (.075")
|
Power
|
220V / 1-phase
|
Shipping Dimensions (L / W / H)
|
89" x 29" x 56"
|
Shipping Weight
|
1,243 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
