- Description
- A true workhorse and a staple of Baileigh’s plate roll line, the PR-503 was built for small to medium fabrication shops. Its welded steel frame maintains accuracy.
- Maximum 61” forming width.
- Rolls up to 3 gauge (¼”) mild steel sheet metal across its full width.
- 5 hp motor runs on 220-volt 3-phase power.
- 3 driven rolls let you shape more material faster and increase productivity.
- Completely hydraulically driven for durability and reliability.
- Digital readout comes standard, so you can track the position of the back roll for increased accuracy and less waste.
- Quick-release mechanism on the top roll makes it simple to remove work that’s wrapped around roll.
- Dual emergency stop cables that are located on both the front and back of the machine.
- Heavy steel frame helps prevent flex for longer machine life.
- Comes with a 1-year parts warranty.
- Includes lifetime technical support by phone from our team of knowledgeable reps, all of whom have experience with our machines.
- Optional coning attachment (sold separately) can create conical bends without marring the frame of the roller.
- Manufacturer
- Specifications
- Required products

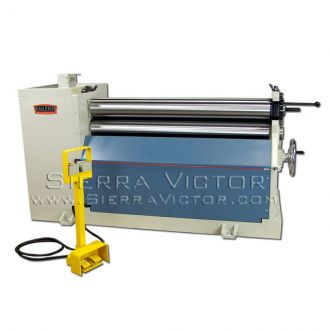

BAILEIGH 5' x 1/4" Plate Roll PR-503
ITEM: 5' x 1/4" Hydraulic Plate Roll
MANUFACTURER: BAILEIGH
MODEL: BA9-1006531
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Plate Bending Rolls
Power Source:
Hydraulic
Metalworking
Material Length:
5 ft (60 in.+)
Mild Steel Capacity:
3 ga (1/4")
Forming Width
|
61"
|
Roll Speed
|
5 rpm.
|
Upper Roll Dia.
|
7"
|
Roll Adjustment Back
|
Hydraulic
|
Minimum Forming Dia
|
10.500"
|
Motor
|
5 HP
|
Power
|
220V / 3-phase
|
Shipping Dimension (L/W/H)
|
98" x 36" x 56"
|
Shipping Weight
|
6,380 lbs.
|
WARRANTY: 1 YEAR – Parts
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
