- Description
- Our most powerful hydraulic shop press, the HSP-200M-C can deliver 200 tons of pressure on the main ram, but also includes a smaller 15 ton hydraulic arbor press attachment. A .375” cast steel framework makes this press one of the best values on the market.
- Unique two station design.
- 200-ton capacity on main press.

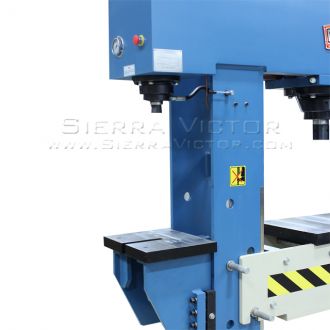

- 20-ton capacity on side press.
- 48” working width.
- 11”-diameter cylinder with 11.8” stroke.
- 10 hp motor runs on 220-volt 3-phase power.
- Stand-alone hydraulic system with a piston-style pump.
- Cylinder can move left and right within the frame, ideal for off-center projects.
- Pressure gauge comes standard.
- Includes a 2-piece V-block set.
- Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty.
- Lifetime technical support by phone means you can call our experienced team whenever you need help or project tips.
- Manufacturer
- Specifications

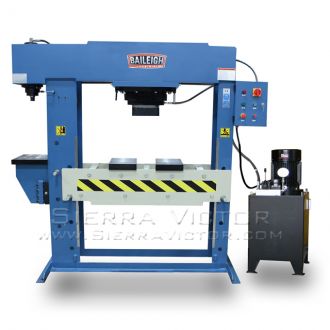

BAILEIGH 200 Ton Two Station Hydraulic Press HSP-200M-C
ITEM: 200 Ton Two Station Hydraulic Press
MANUFACTURER: BAILEIGH
MODEL: BA9-1019291
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Presses
Machine Sub-Category:
Shop/H-Frame
Power Source:
Hydraulic
Metalworking
Pressure:
200+ Tons
|
Return Speed
|
.228" / sec.
|
|
Motor
|
10 HP
|
|
Piston Head Diameter
|
6.125" (Main), 1.77" (Side)
|
|
Pump Speed
|
4 gal/min
|
|
Oil Capacity
|
32 gal.
|
|
Working Speed
|
.154" / sec.
|
|
Working Width
|
48" (Main)
|
|
Maximum Capacity
|
200 ton (Main), 20 ton (Side)
|
|
Cylinder Stroke
|
11.8" (Main), 11.75" (Side)
|
|
Cylinder Movable
|
Yes (Main Only)
|
|
Cylinder Diameter
|
11" (Main), 3.95" (Side)
|
|
Distance From Table To Ram
|
Min. 8.11" - Max. 32.01" (Main),
Min. 9.84" - Max. 38.97" (Side) |
|
Power
|
220 Volt Three Phase
|
|
Shipping Weight
|
6,644 lbs.
|
|
Shipping Dimensions
|
Frame: 78" x 46" x 89",
Pump: 24" x 20" x 56" |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
