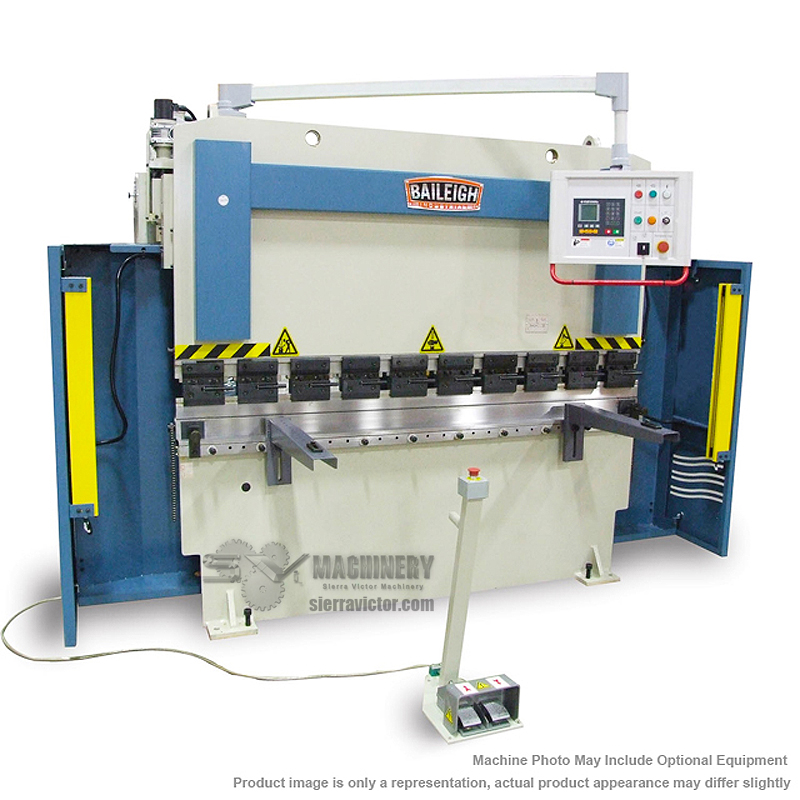

BAILEIGH Hydraulic Brake Press BP-5078CNC

• Built from name-brand parts and steel plate, this Industrial Press Brake will stay rigid and accurate. You can program the bend depth and back gauge for efficient production.
• 50 tons of pressure
• 78” table length
• Controller stores 40 programs
• Vickers/Eaton pump and NOK seals
• Delivers 50 tons of pressure over its entire 78” length.
• Long enough to bend 6-foot pieces of mild steel.
• Runs on 220-volt 3-phase power.
• Prop 65: Cancer and Reproductive Harm

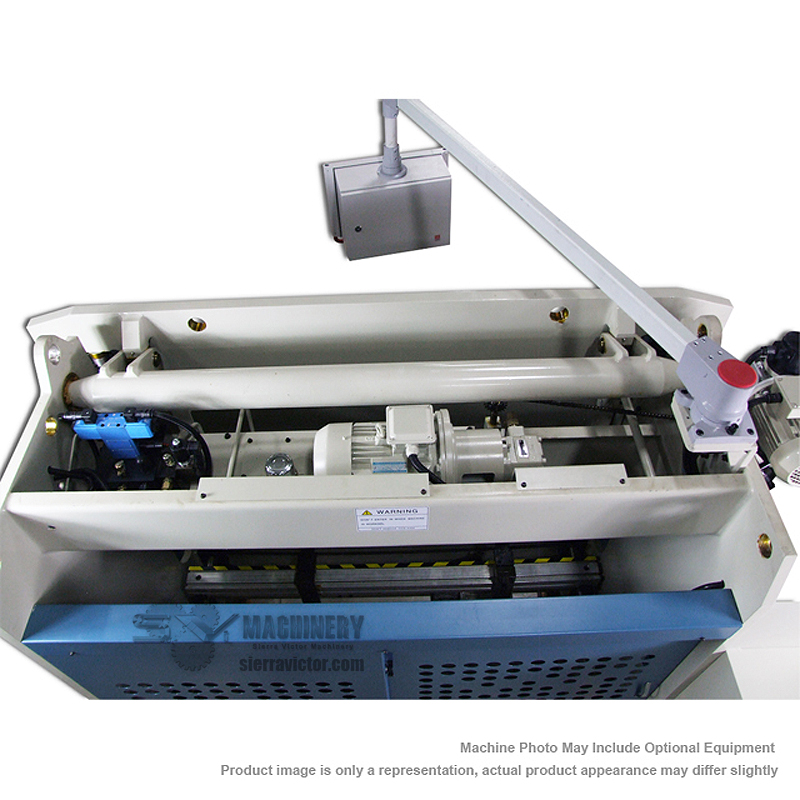

• Industrial-grade hydraulic system with a Vickers/Eaton pump will last for many years at peak capacity.
• NOK hydraulic seals from Japan are some of the best in the industry. They'll help the hydraulics run smoothly.

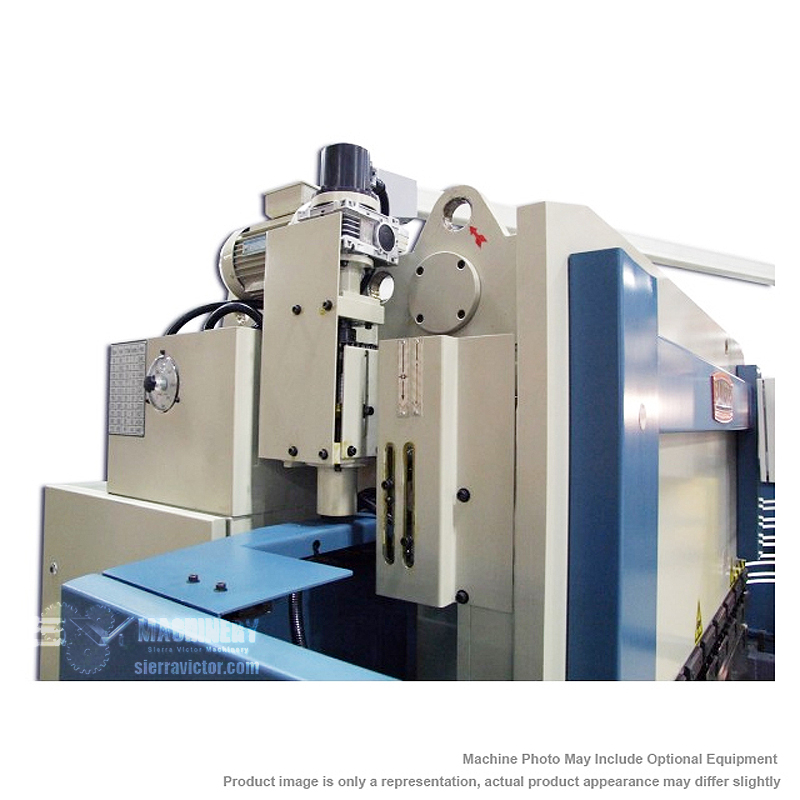

• Torque tube connects the 2 hydraulic cylinders, so they always stay synchronized and parallel to the bending table.
• Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine remains balanced and lasts longer.

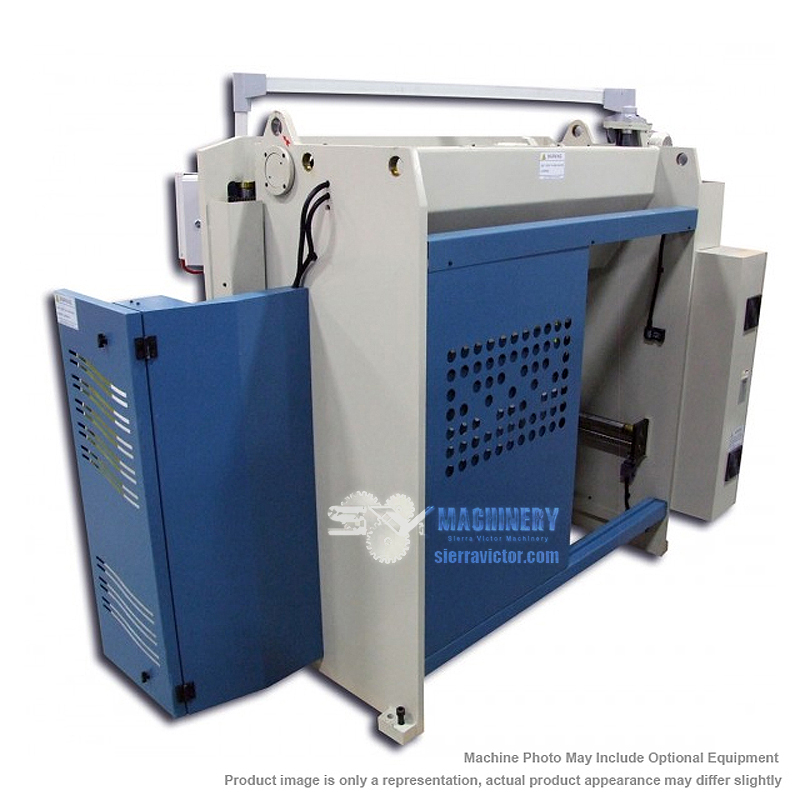

• Hydraulic cylinders are in the back of the machine for convenient fluid changes.

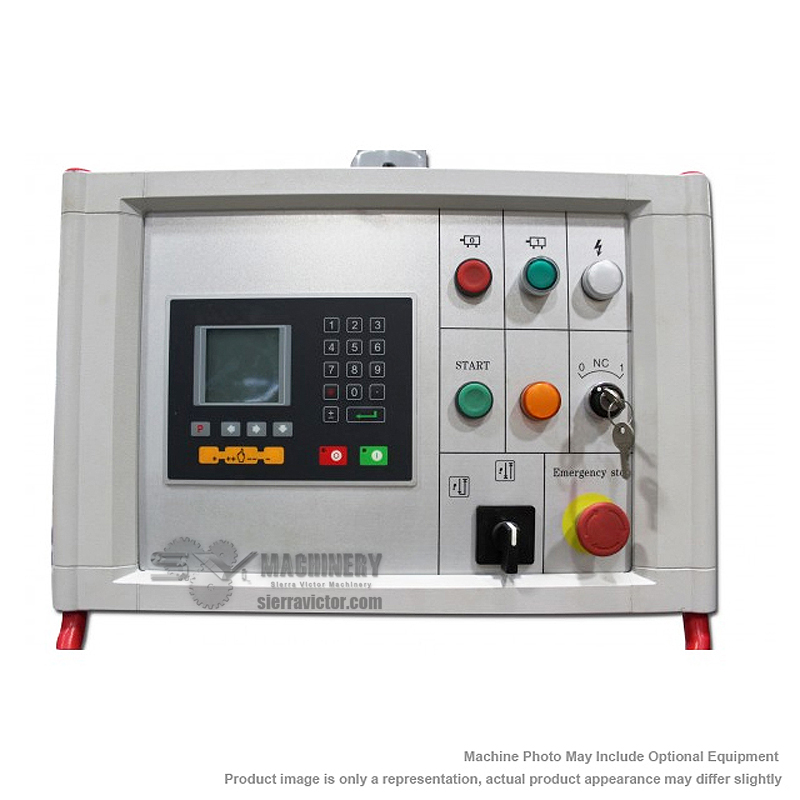

• Accurate, User-Friendly Control System:

  • Runs in single-bend mode or programmable mode.
  • Comes standard with 2 axes of control: stroke and back gauge distance.
  • Simple controller is so intuitive that you could train someone to use it in 5 minutes.
  • Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
  • Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

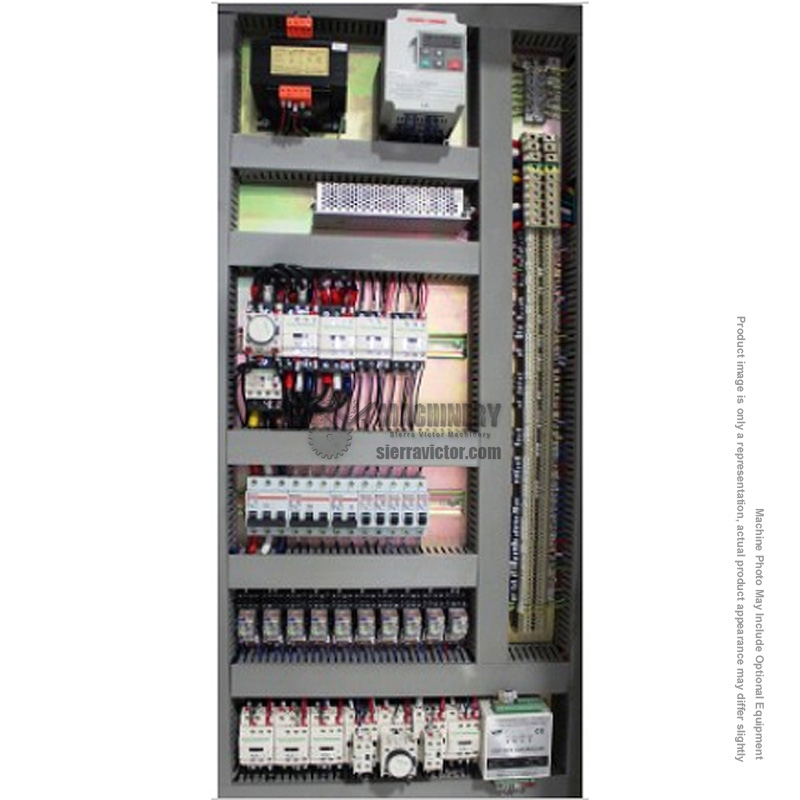

  • Main electrical components made in Germany by Weidmueller and Schneider will give you years of trouble-free productivity.

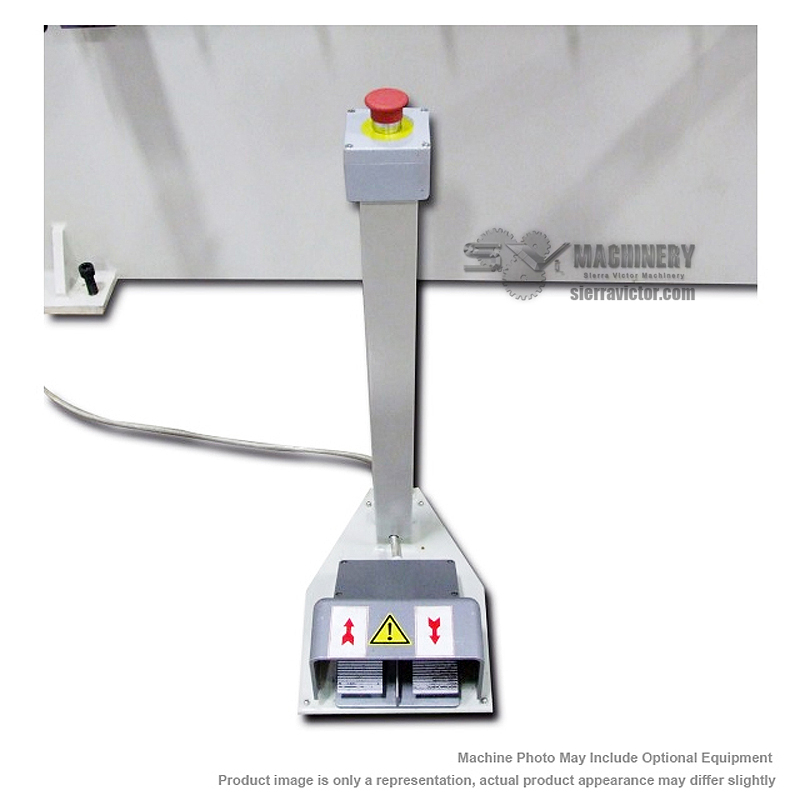

  • Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
  • You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
  • Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
  • Faster speed option lets you reduce cycle times and bend more quickly.
  • Chain drive back gauge system uses tried-and-true technology that you can easily maintain.
  • The 23" back gauge can advance or retract according to programmed instructions.
• Rigid Steel Construction and Included Tooling:

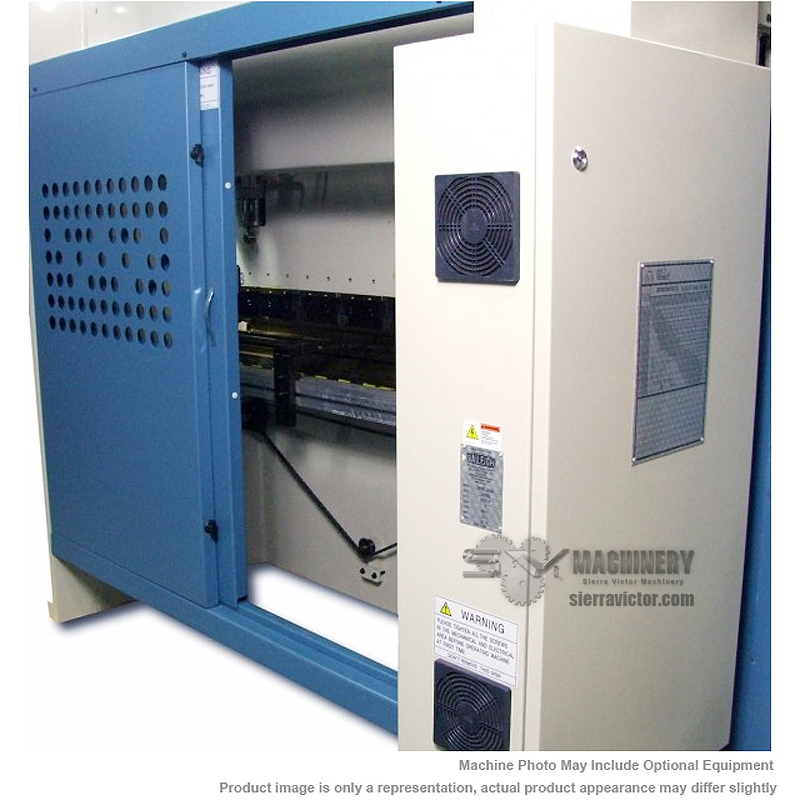

  • Fully welded all-steel framework helps prevent deformation and minimize flex during the bending process.
  • Weighs a robust 6,000 lbs. for massive structural strength that ensures accurate results.
  • Includes support arms around 2 feet in length.

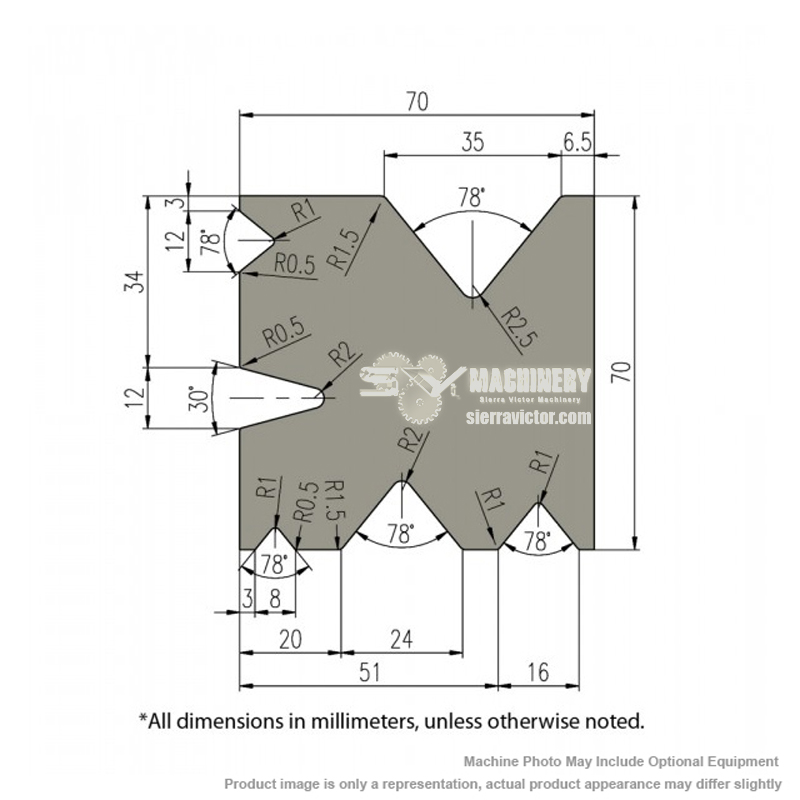

  • Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).

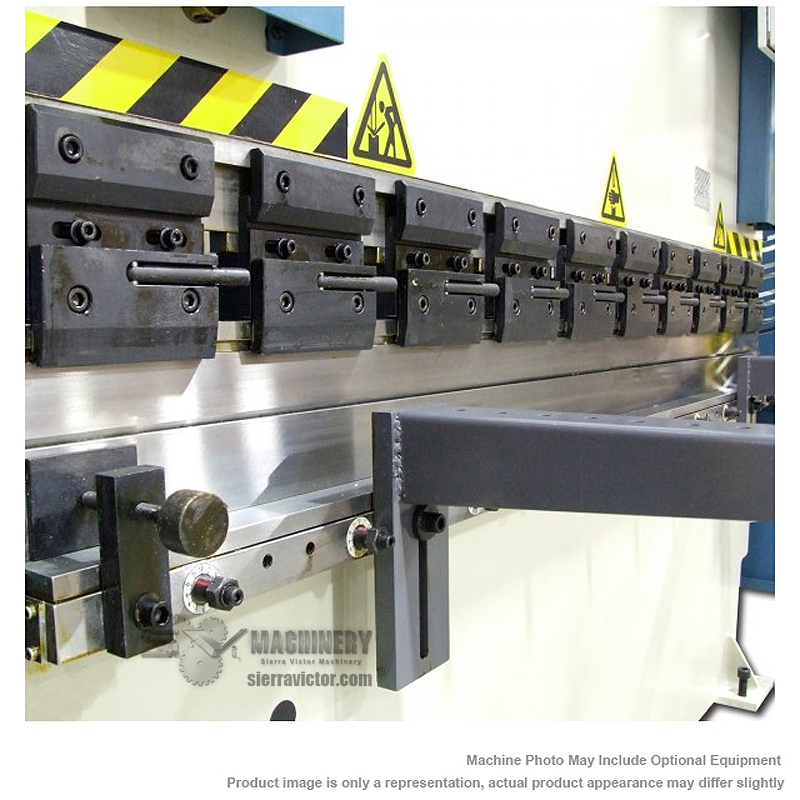

  • Quick-release tool holders let you make changes easily. You only have to open a lever and it drops the top die out. No time-consuming cap screws!
  • Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
  • Safety light curtains prevent the machine from bending when someone is too close.
  • Light curtains will swing open and get out of the way when you’re doing a tool change.
• Fast Shipping and Expert After-Sale Care:
  • This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
  • We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door.
  • Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly.
  • We offer a 1-year parts warranty, as well as lifetime technical support by phone.
  • You can contact us any time to talk with service reps who have years of industrial experience.
