- Description
- Got a lot of small items to bend? Designed and made in the USA, this small hydraulic press brake is perfect for hot rod shops that need to bend bracket quickly, but don’t want a larger machine.
- Recommended for: Hot rod shops and other fabricators that work with smaller parts, but need a fast, professional-quality machine.
- 31" width is perfect for smaller projects.
- Bends a maximum capacity of .25" mild steel.
- 2 hp motor produces 42 tons of pressure.
- Runs on 220-volt single phase power, so it will work in any shop, even when power is limited.
- Foot pedal controls hydraulic system, leaving your hands free to guide the material.
- Easy to use. You can train someone to handle this press brake in 5 minutes.
- Sturdy 19.5”-long manual back gauge makes it simple to create repeat parts.

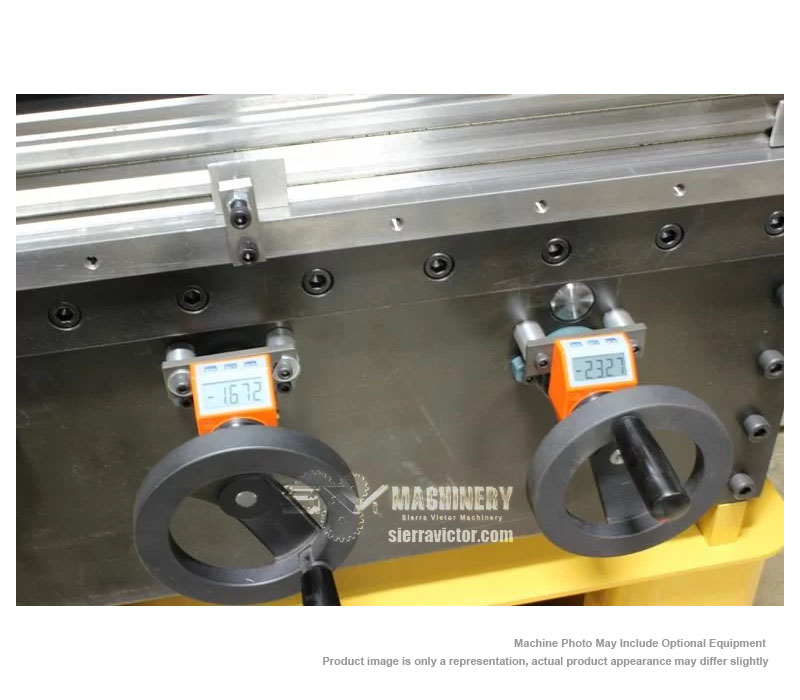

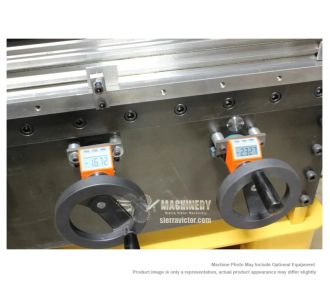

- Digital readout (DRO) for back gauge and down position helps you get precise results.

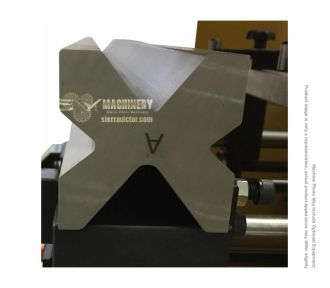

- Includes a hardened multi-Vee bottom die, unlike some competing machines which don’t come with tooling.

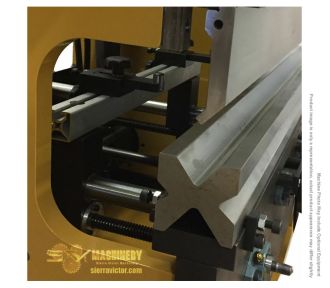

- Universal tooling holder gives you a wide variety of options to fit your applications.
- Manufacturer
- Specifications

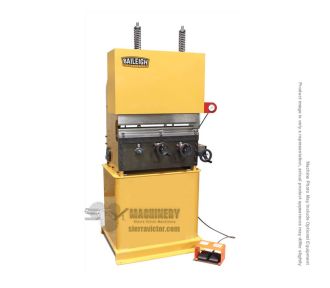

BAILEIGH 31 in. x 42 Ton Hydraulic Press Brake BP-3142NC
ITEM: 31 in. x 42 Ton Hydraulic Press Brake
MANUFACTURER: BAILEIGH
MODEL: BP-3142 NC
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Press Brakes
Power Source:
Hydraulic
Metalworking
Pressure:
40+ Tons
Material Length:
2 ft (24 in.+)
Pressure |
42 |
Approach Speed |
0.9 in./ sec. |
Bending Speed |
0.4 in./ sec |
Distance Between Housings |
28 in. |
Distance From Table To Ram |
8.5 in. |
Distance Per Stroke |
2 in. |
Stroke |
2 in. |
Table Length |
31 in. |
Motor |
2 HP |
Back Gauge Capacity |
19.5 in. |
Input Power |
220V / 1-phase |
Digital Readout |
Yes |
Shipping Dimensions (L x W x H) (In.) |
60 x 48 x 94 in. |
Shipping Weight |
2,000 lbs. |
Net Weight |
2,110 lbs. |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
