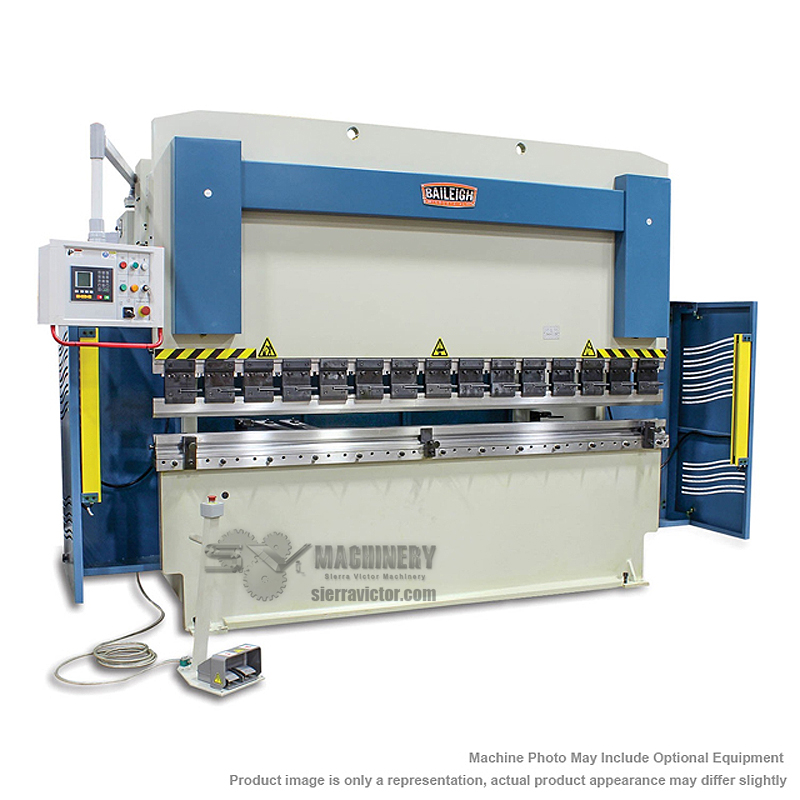

BAILEIGH 224 Ton x 10 ft Hydraulic Press Brake BP-22410 CNC

• Heavy steel construction enables this programmable 10-foot press brake to make crisp bends without deformation. The tried-and-true Nachi hydraulic pump will last for years.
• 224 tons of pressure
• 10-foot length (125”)
• Nachi hydraulic pump
• Controller stores 40 programs
• Prop 65: Cancer and Reproductive Harm
• Delivers a whopping 224 tons of pressure.

• Offers 10-foot (125”) length and 100” of distance between the housings.

• This press brake is also available in a 13-foot version.
• Runs on 220-volt 3-phase power.
• Industrial-grade hydraulic system with a Nachi pump will keep the machine running smoothly and reliably.
• Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.
• Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.
• Hydraulic cylinders are near the back of the machine for convenient fluid changes.
• Accurate, User-Friendly Control System

  • Runs in single-bend mode or programmable mode.
  • Comes standard with 2 axes of control: stroke and back gauge distance.
  • Controller is so simple that you could train someone to use it in 5 minutes.
  • Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
  • Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.
  • Main electrical components made in Germany by Weidmueller and Schneider will give you years of trouble-free productivity.

  • Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
  • You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
  • Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
  • Speed option lets you reduce cycle time and make your shop more efficient.
  • Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
  • The 23.62" back gauge can advance or retract according to programmed instructions.
• Steel Plate Construction and Included Tooling
  • Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.
  • Weighs a robust 21,280 lbs. for massive structural strength that ensures accurate results.
  • Includes support arms around 2 feet in length.
  • Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).
  • Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
  • Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
  • Safety light curtains prevent the machine from bending when someone is too close.
  • Light curtains will swing open and get out of the way when you’re doing a tool change.
• Fast Shipping and Lifetime After-Sale Care
  • This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
  • We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door.
  • Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly.
  • We offer a 1-year parts warranty.
  • With lifetime technical support by phone, you can contact us any time and talk with service reps who have years of experience with industrial machinery.
