- Description

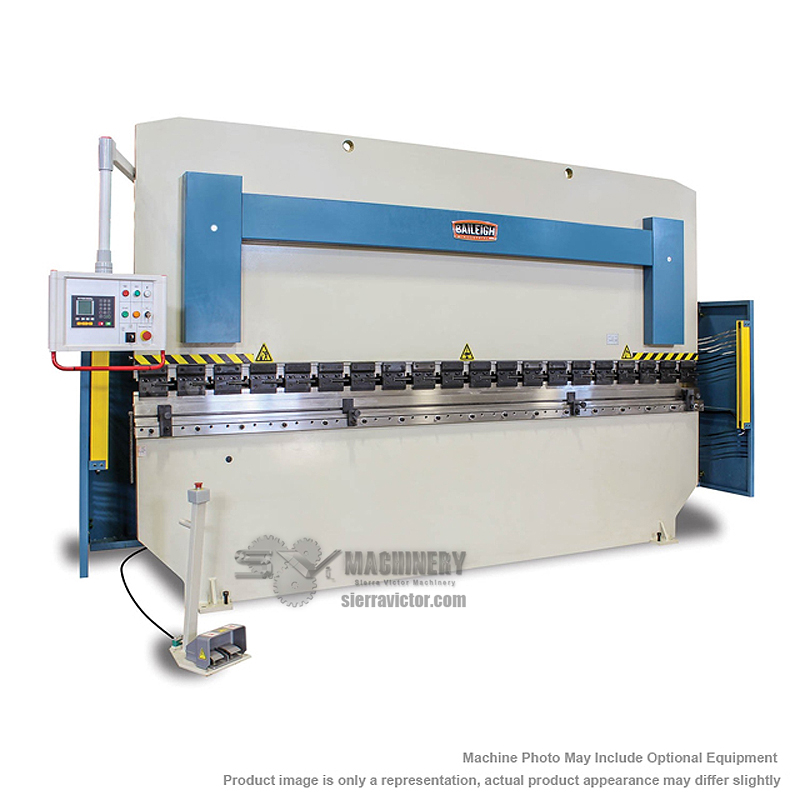

- This large press brake lets you slide 10-foot sheets between the housings. A rigid steel frame and hydraulic parts by Nachi and Vickers/Eaton keep the machine running reliably.
- Delivers 179 tons of pressure
- Offers 13-foot length (157”) and 123” of distance between the housings
- This press brake is also available in a 10-foot version
- Runs on 220-volt 3-phase power
- Industrial-grade hydraulic system with Vickers/Eaton and Nachi components will last for many years at peak capacity
- Torque tube connects the 2 hydraulic cylinders, so they always stay synchronized and parallel to the bending table
- Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer
- Hydraulic cylinders are near the back of the machine for convenient fluid changes

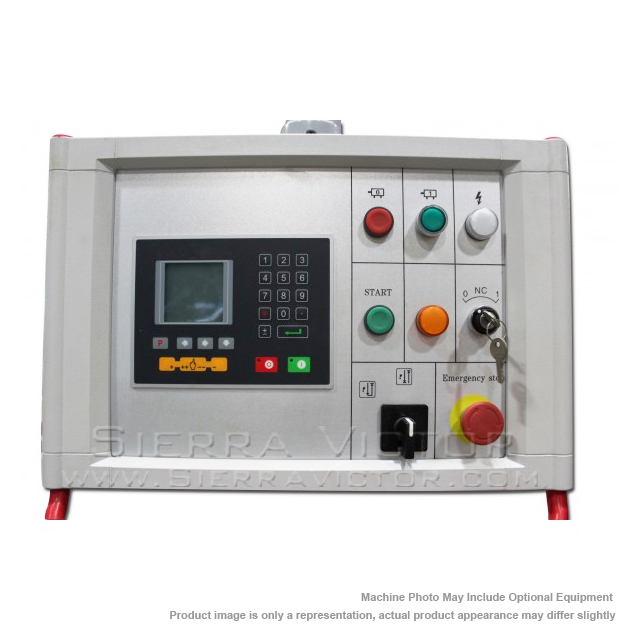

- Accurate, User-Friendly Control System
- Runs in single-bend mode or programmable mode.
- Comes standard with 2 axes of control: stroke and back gauge distance.
- Controller is so simple that you could train someone to use it in 5 minutes.
- Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
- Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

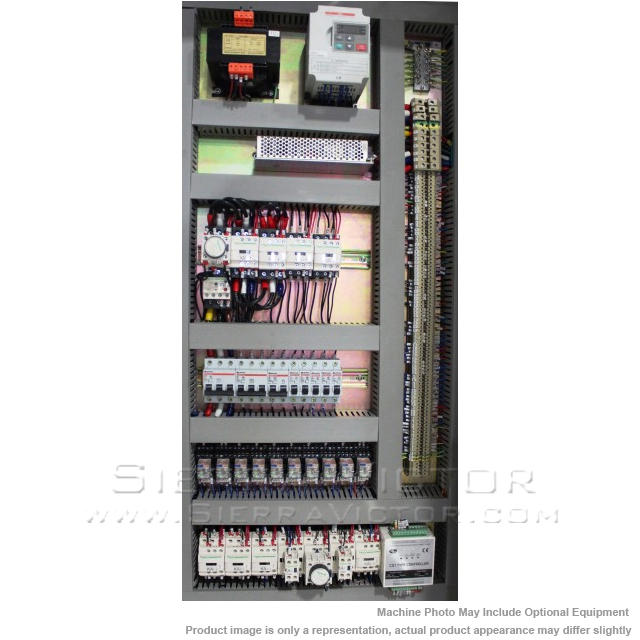

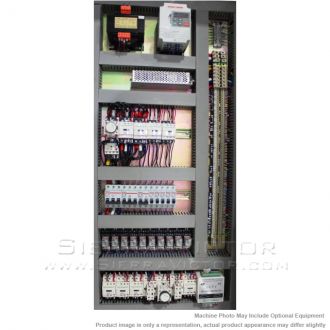

- Main electrical components made in Germany by Weidmueller and Schneider will give you years of trouble-free productivity.
- Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
- You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
- Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
- Speed option lets you reduce cycle time and make your shop more efficient.
- Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
- The 23.62" back gauge can advance or retract according to programmed instructions.
- Steel Plate Construction and Included Tooling
- Fully welded all-steel construction helps prevent deformation and minimize flex during the bending process.
- Weighs a whopping 24,640 lbs. for massive structural strength that ensures accurate results.
- Includes support arms around 2 feet in length.

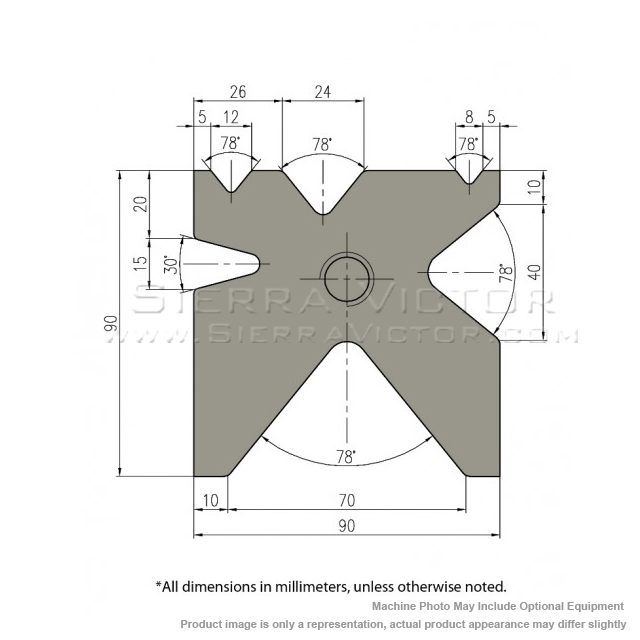

- Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).
- Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
- Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
- CNKELI safety light curtains prevent the machine from bending when someone is too close.
- Light curtains will swing open and get out of the way when you’re doing a tool change.
- Manufacturer
- Specifications
BAILEIGH 170 Ton x 13 ft Hydraulic Press Brake BP-17913 CNC
ITEM: 170 Ton x 13ft CNC Hydraulic Press Brake
MANUFACTURER: BAILEIGH
MODEL: BP-17913 CNC
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Press Brakes
Control:
CNC
Power Source:
Hydraulic
Metalworking
Pressure:
170+ Tons
Material Length:
13 ft (156 in.+)
MODEL |
BP-17913 CNC |
Pressure |
179 Tons |
Approach Speed |
2.0 in./ sec. |
Back Gauge Capacity (In.) |
23.62 in. |
Bending Speed |
.236 in./ sec. |
Overall Length |
157 in. |
Distance From Table To Ram |
17.7 in. |
Distance Per Stroke (In.) |
7 in. |
Distance Between Housings (In.) |
100/123 in. |
Input Power |
220V / 3-phase |
Throat Depth (In.) |
12.5 in. |
Back Gauge Motor |
1/2 HP |
Assembled Machine Dimensions (L x W x H) |
134 x 64 x 103 in. |
Shipping Dimensions (L x W x H) (In.)
|
181 x 71 x 110 in. |
Shipping Weight |
21,280 lbs. |
Gross Weight |
24,000 lbs. |
Weight
|
24,640 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
