- Description
- Need high production in a limited space? This CNC Hydraulic Press Brake offers programmable controls, top-quality components, and heavy steel construction for an unbeatable price.
- 33 tons of pressure
- 63" table length
- 220 volt 3-phase
- Perfect for small shops
- BP-3305CNC delivers 33 tons of pressure across its 63” table.
- Runs on 220-volt 3-phase power.

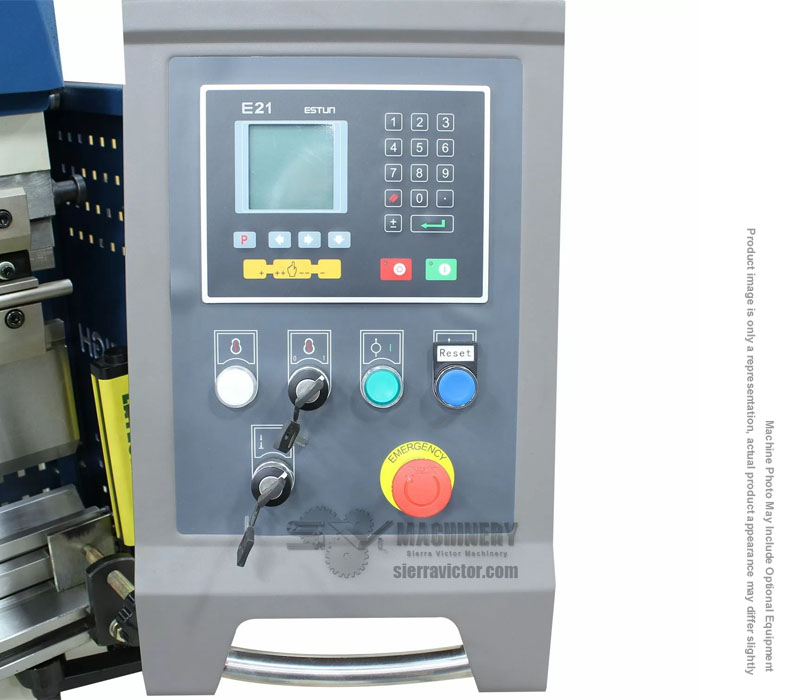

- Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory.
- Internal memory can hold 40 programs, each with its own unique number for easy identification.
- Controller will keep a piece count for large production runs.
- Made with NOK, Siemens, and Omron components.
- Foot pedal lets you control all bending functions, whether on full auto or jog mode.
- Fully welded steel plate frame minimizes deflection and maintains rigidity.

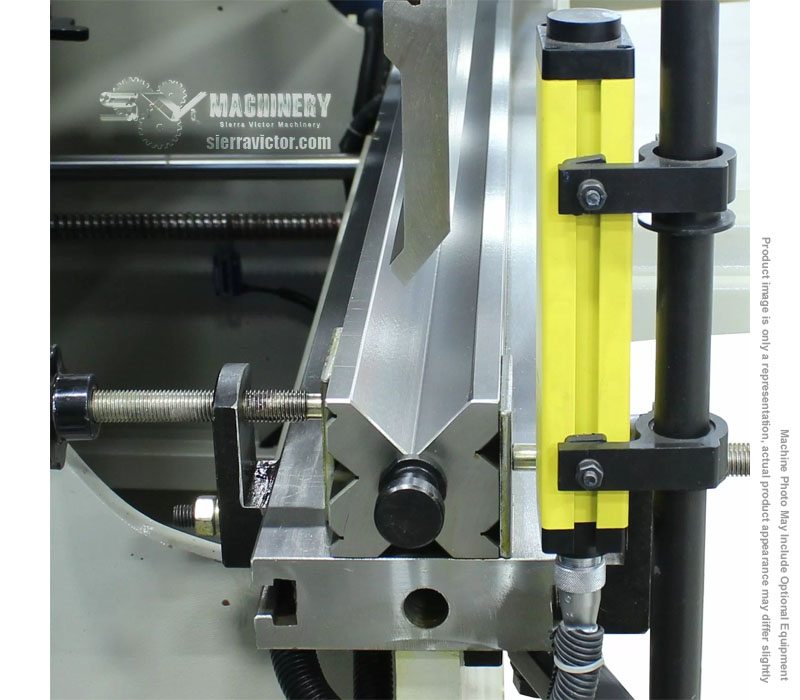

- Gooseneck punch and a 4 sided multi-V bottom die come standard.

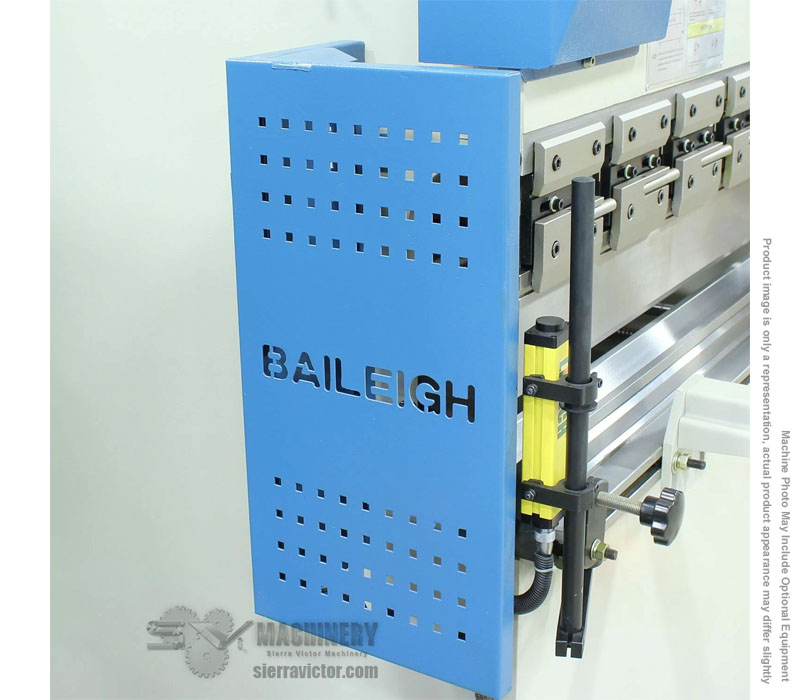

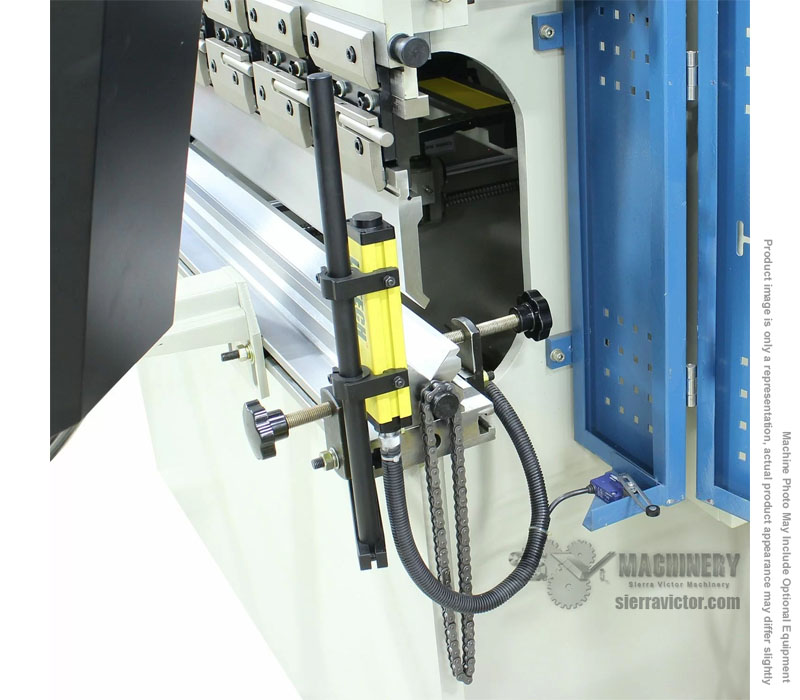

- Integrated safety light curtains help prevent accidents.
- We keep parts in stock at our Wisconsin headquarters so we can ship them to you quickly.
- Included Tooling: 78° Gooseneck & Multi-Vee Die (5/16", .39", .47", 5/8", .94", 1-1/4", 2")
- Covered by a 1-year parts warranty.
- Includes lifetime technical support by phone from a team of customer service reps with hands-on industrial experience.
- Manufacturer
- Specifications
- Video

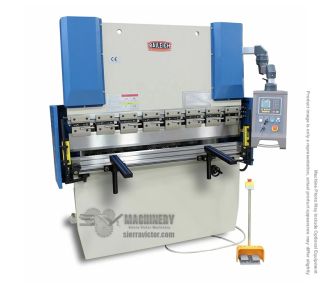

BAILEIGH 33 Ton x 5 ft CNC Press Brake BP-3305CNC
ITEM: 63 in. x 33 Ton CNC Press Brake
MANUFACTURER: BAILEIGH
MODEL: BP-3305CNC
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Press Brakes
Control:
CNC
Metalworking
Pressure:
30+ Tons
Material Length:
5 ft (60 in.+)
Approach Speed
|
3.5 in./ sec
|
Bending Speed
|
.394 in./ sec
|
Minimum Return Speed (In./Sec)
|
3.3 in./ sec
|
Distance Between Housings
|
51.25 in.
|
Distance From Table To Ram
|
13.325 in.
|
Distance Per Stroke
|
3.15 in.
|
Throat Depth
|
8 in.
|

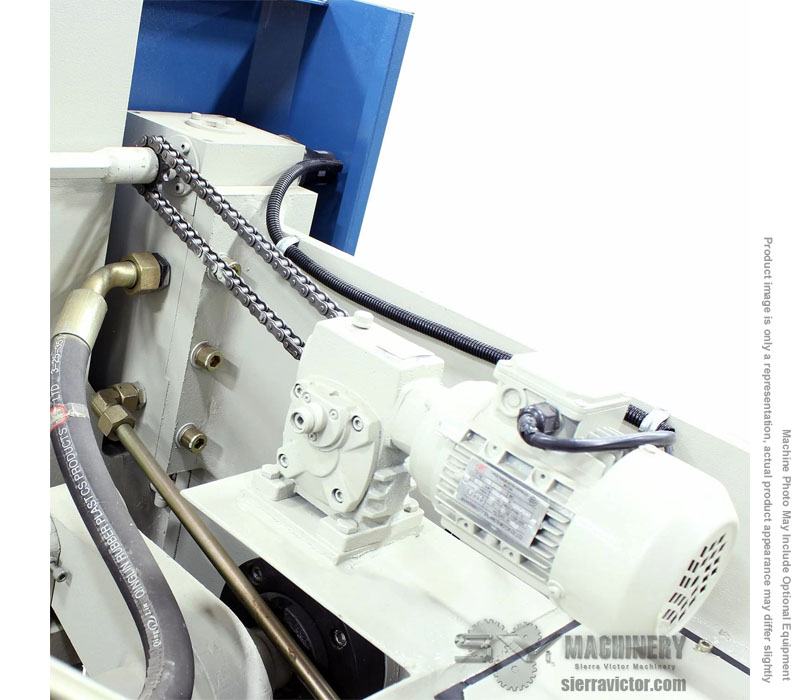

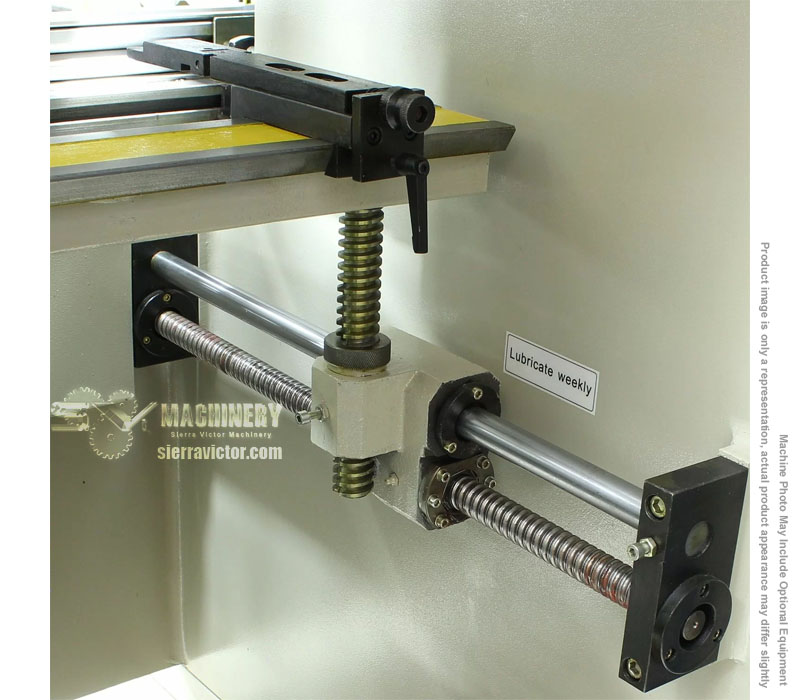

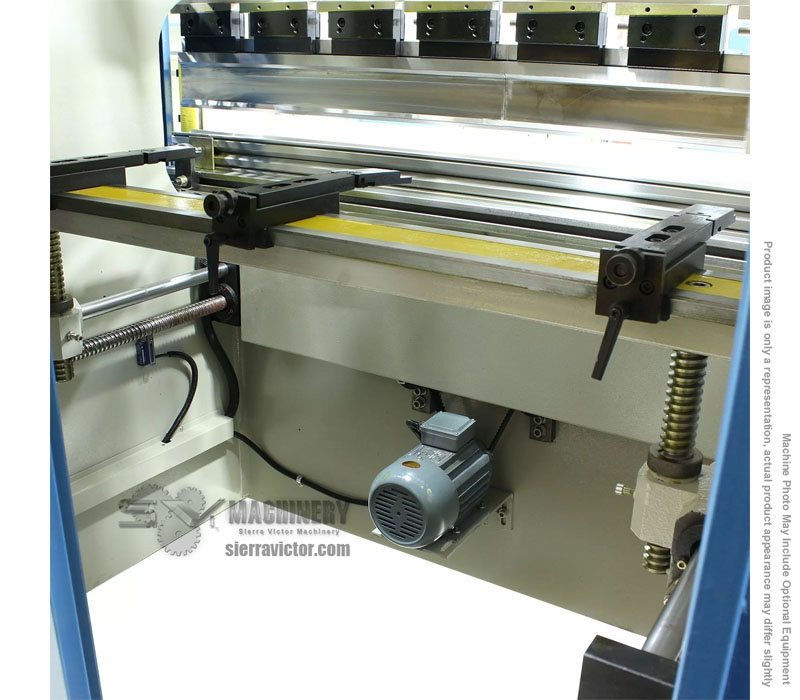

Back Gauge Motor
|
1/2 HP
|
Input Power
|
220V / 3-phase
|
Shipping Dimensions (L/W/H)
|
91 x 56 x 87 in.
|
Gross Weight
|
5,100 lbs.
|
Weight
|
5,050 lbs.
|
Included Tooling
|
78° Gooseneck & Multi-Vee Die
(5/16", .39", .47", 5/8", .94", 1-1/4", 2") |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
