- Description

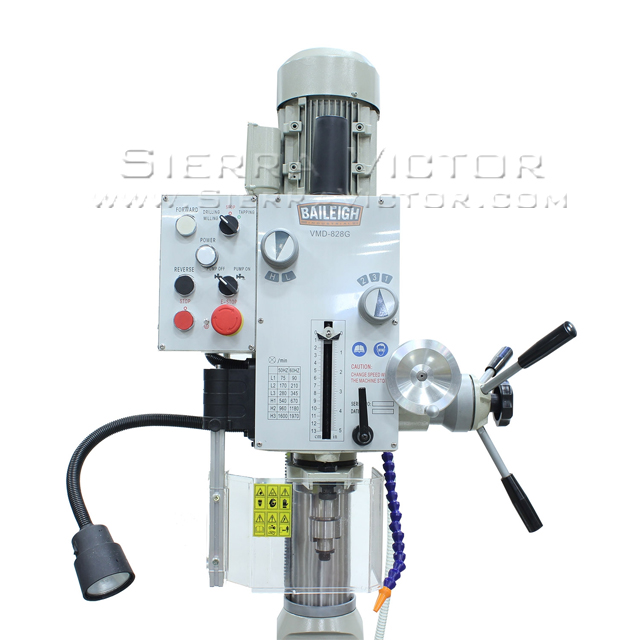

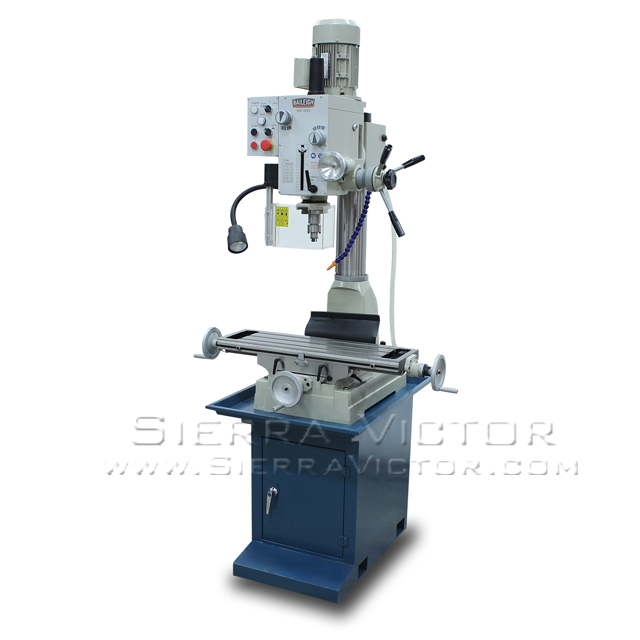

- Don’t have the space for both a gear-driven drill press and a milling machine? The VMD-828G combines 2 functions in 1 space-efficient machine. This mill drill lets you set the right speed for a given application, providing greater control and extending tooling life
- 2 hp motor runs on 110-volt power and will work almost any site.
- 1.5” maximum drilling capacity.

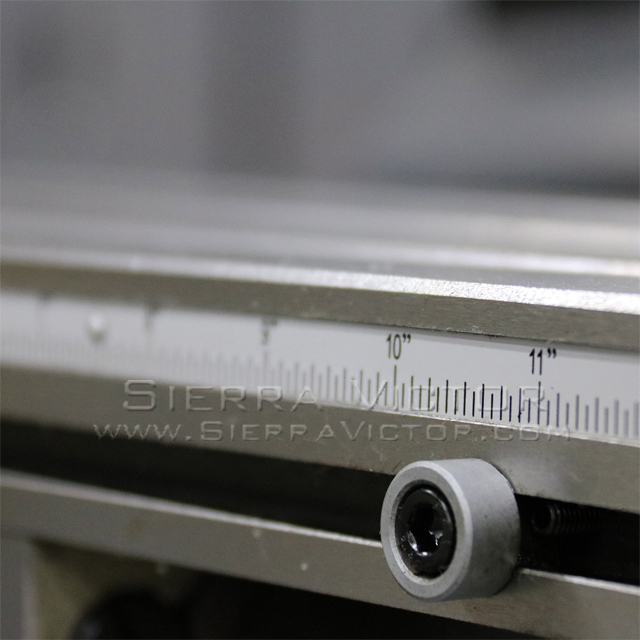

- Includes 29” x 8” milling-style table which expands the machine’s possible uses.

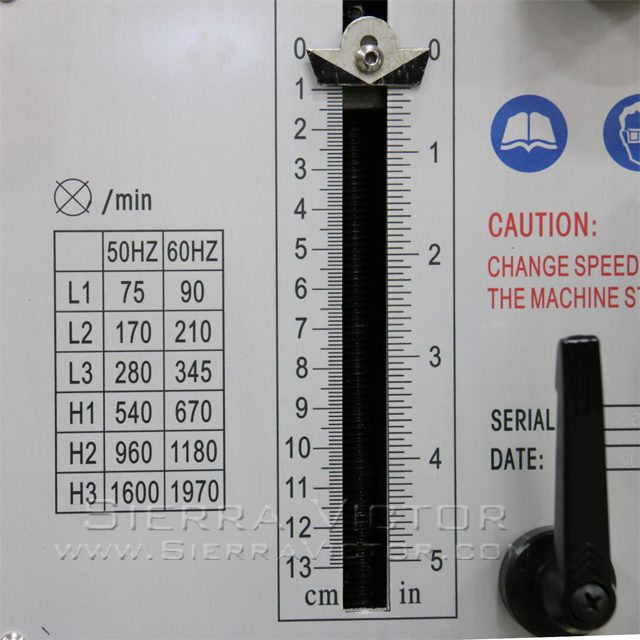

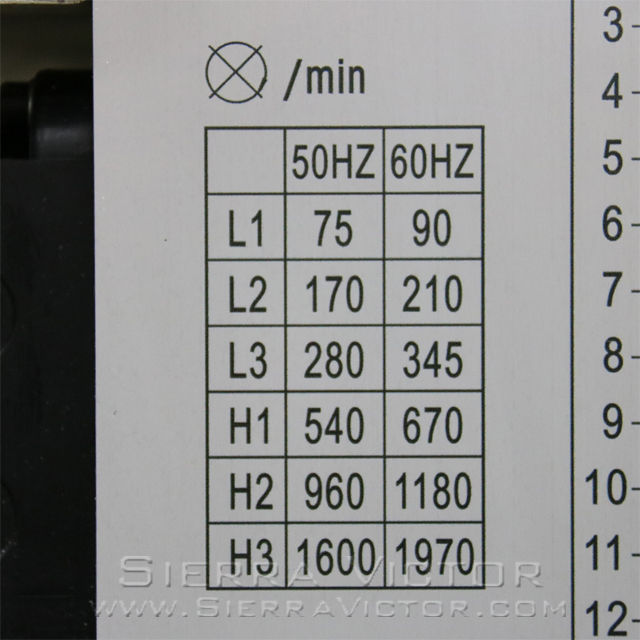

- Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Rigid base and very wide cast column adds to machine’s strength and eliminates flexing when milling or drilling at full capacity.
- Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.
- Backed by a 1-year warranty and lifetime technical support by phone from our team of experienced reps
- Manufacturer
- Specifications
BAILEIGH 1.5" Vertical Mill Drill VMD-828G
ITEM: Vertical Mill Drill
MANUFACTURER: BAILEIGH
MODEL: BA9-1020692
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Mill Drills
Spindle Speeds
|
90, 210, 345, 670, 1180, 1970 RPM
|
Table Size
|
28.75" x 8.25"
|
Motor
|
2 HP
|
X Axis Travel
|
19-1/2"
|
Y Axis Travel
|
9"
|
Spindle Nose to Base
|
16.14"
|
Spindle Stroke
|
4-3/4"
|
Spindle Taper
|
R8
|
T Slots
|
.550"
|
Coolant Pump
|
1/8 HP
|
Power
|
110V
|
Drill Capacity
|
1.5"
|
Spindle Travel
|
4.75"
|
Shipping Dimensions
|
60" x 44" x 48"
|
Shipping Weight
|
710 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
