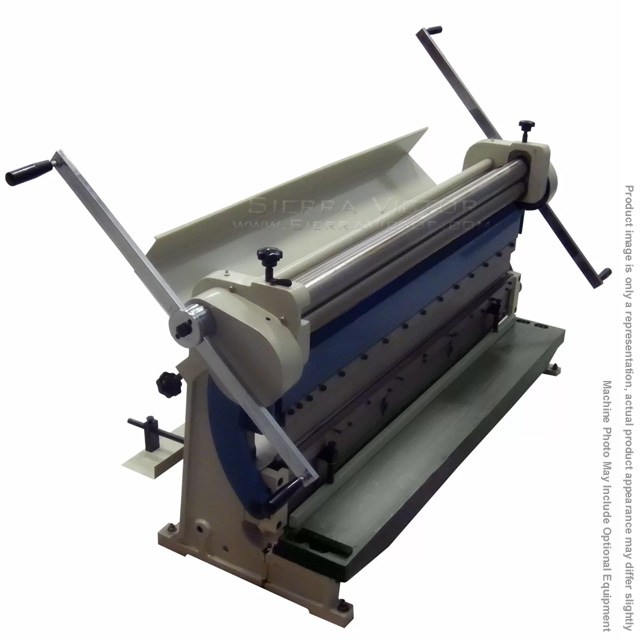

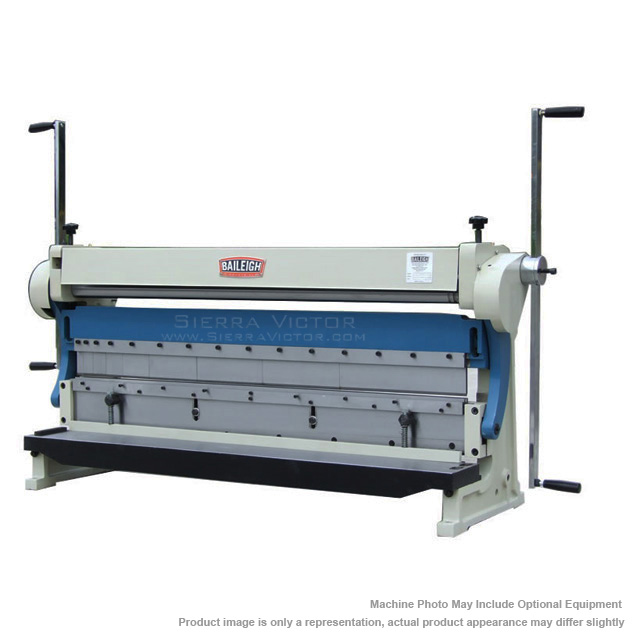

BAILEIGH 52 in. x 16 gauge Shear Brake Roll SBR-5216

• With a 16 gauge mild steel capacity for all functions, the SBR-5216 is the most powerful 3-in-1 combination machine on the market. This manual combination shear brake and roll saves space and money for small shops.

• 52” width lets you roll, bend, and shear 4’ x 8’ sheets.

• Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.

• 1.70” minimum rolling diameter.

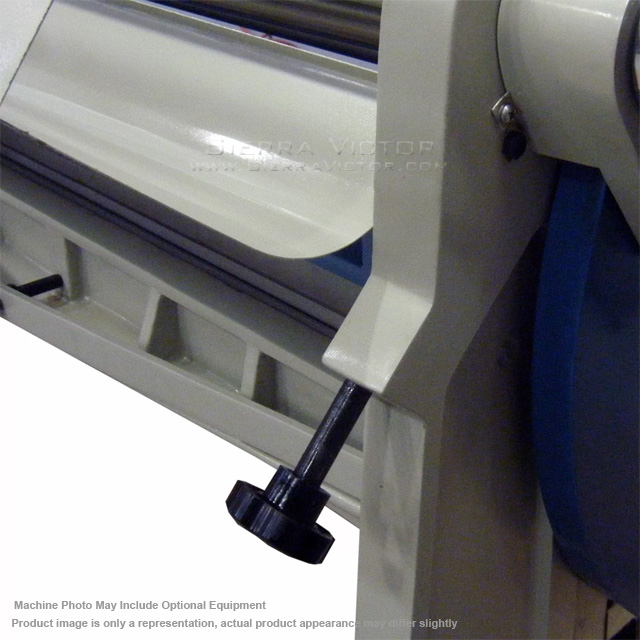

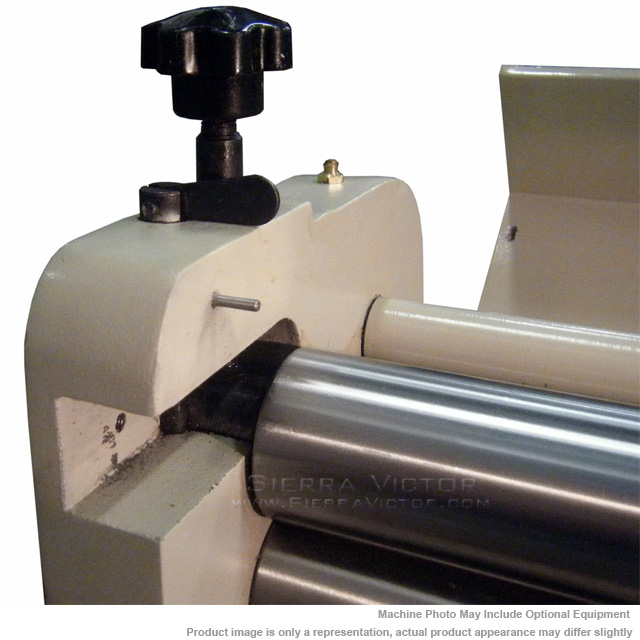

• Hardened, adjustable back and top rolls can form different thicknesses.

• Top roll can swing away from the machine for convenient material removal.

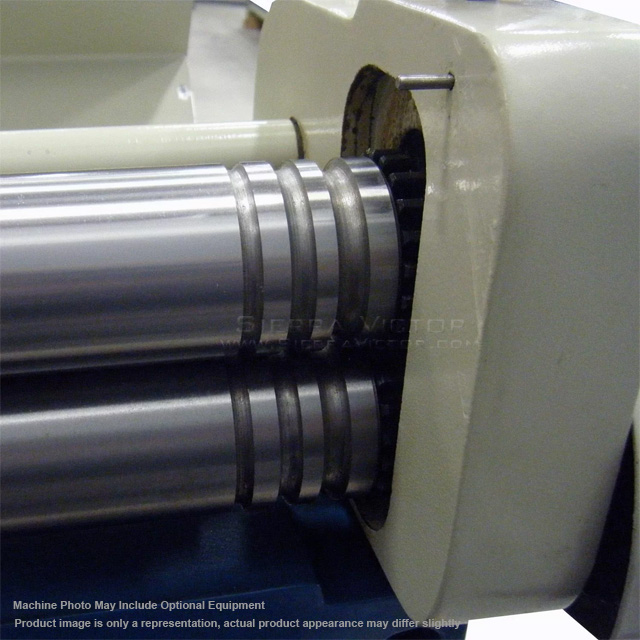

• 3 grooves on the roll can form wire or round rod.

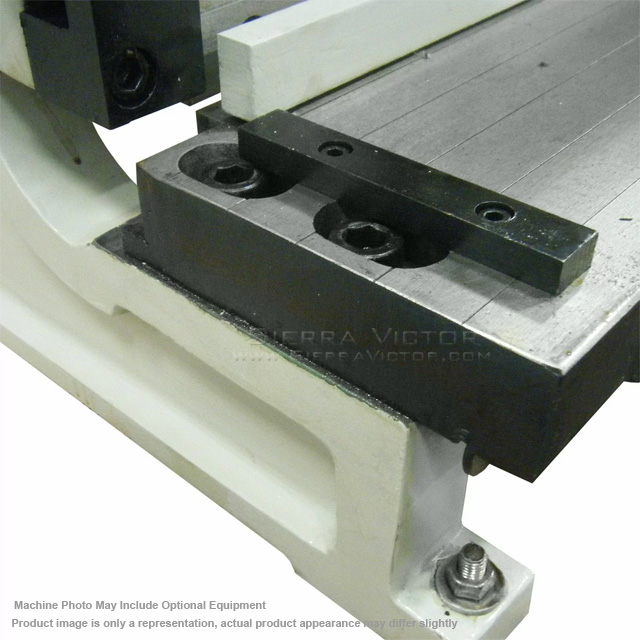

• Manual press brake section comes with a fixed bottom V-block die.

• The SBR-5216 combination shear brake roller bends up to 90°, so you can make perfect corners.

• 9 movable fingers on the top beam can make many sizes of boxes and pans.

• Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material.

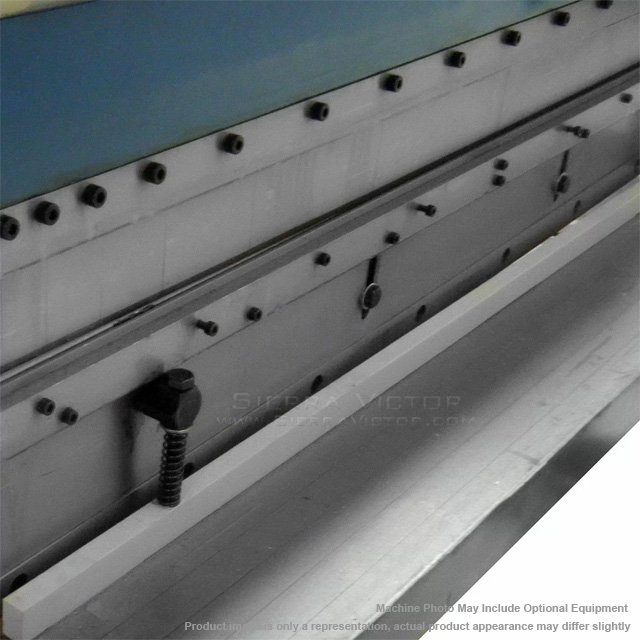

• Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, improve cut quality.

• You can adjust the blade gap to fit different gauges of sheet metal.

• Includes a material guide.

• Hardened, reversible blades stay sharp.

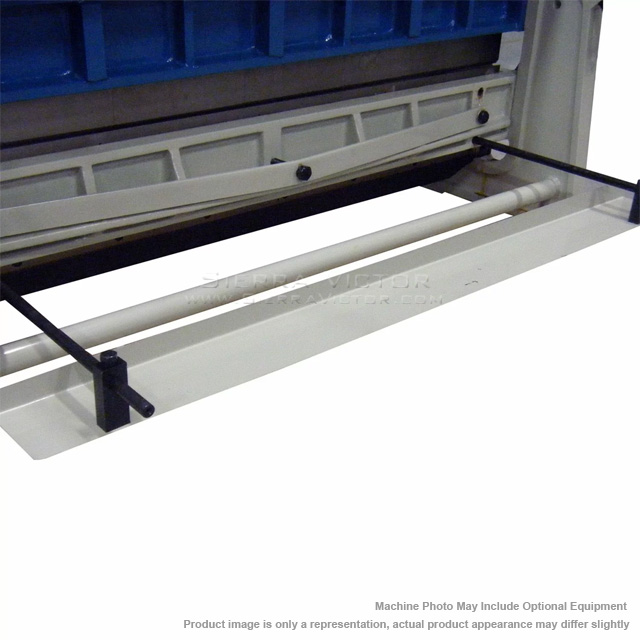

• Manual back gauge helps you easily produce repeatable parts.

• Heavy steel construction, weighing 1,200 lbs., gives this combo machine the power to deliver accurate results for many years.

• The SBR-5216 combination shear brake and roll is covered by a 1-year parts warranty.

• Our team of knowledgeable reps is here to provide lifetime technical support by phone.

• Recommended for: Home shops, industrial art shops, maintenance or R&D shops, and other facilities where small production runs don't justify dedicated machines for rolling, bending, and shearing.
