- We added a DRO to our popular PL-1236E metal lathe, so you can adjust your settings more precisely. This model includes a quick-change tool post and a coolant system.
- Recommended for small fabricators, schools, or garages.
- 70 to 1,400 rpm variable speed.

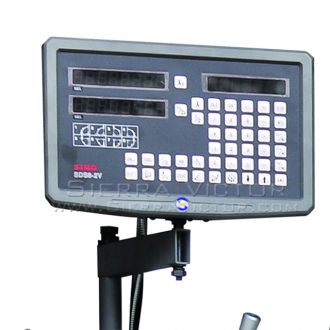

- Integrated digital readout (DRO) helps you get repeatable results.
- Quick-change tool post makes tooling changes more efficient.
- Gear system allows for taping, turning, and polishing.
- All ways are ground and hardened to ensure long life.
- Runs on 220-volt single-phase power.
- Capable of standard and metric threading.
- Quick-change tool post helps you save time.
- 3-jaw and 4-jaw chucks can hold both square and rounded materials.
- Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.
- Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.
- Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.
- Foot brake helps keep your shop safe.
- Halogen work light comes standard.
- Covered by a 1-year parts warranty.
- Replacement parts are in stock at our Wisconsin warehouse for fast shipping.
- You can count on lifetime technical support by phone from our team of reps with first-hand metalworking experience.
- Manufacturer
- Specifications
- Required products

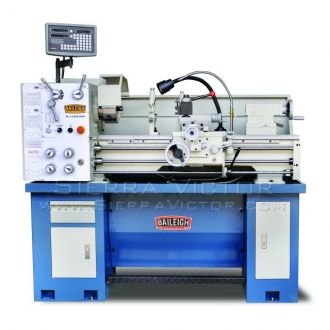

BAILEIGH 12" x 36" Metal Lathe PL-1236E-DRO
ITEM: 12" x 36" Metal Lathe with DRO
MANUFACTURER: BAILEIGH
MODEL: BA9-1016617
Manufacturer:
Baileigh Industrial
Lathes
Lathe Size:
12" x 36"
Lathe Type:
Gear Head
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Geared Head
|
Sleeve Travel
|
4"
|
|
Spindle Bore
|
1.50"
|
|
Spindle Bore Taper
|
Morse #5
|
|
Sleeve Taper
|
Morse #3
|
|
Sleeve Diameter
|
1.250"
|
|
Range Of Inch Threads
|
4 - 56 T.P.I.
|
|
Metric Thread Range
|
0.4 – 7 mm
|
|
Spindle Nose
|
D1-4"
|
|
Travel Of Cross Slide
|
5.312"
|
|
Travel Of Top Slide
|
3.250"
|
|
Width Of Bed
|
7.125"
|
|

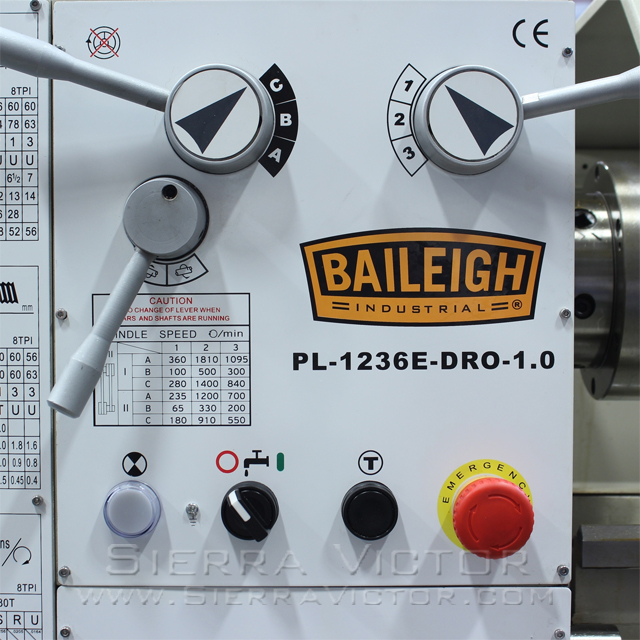

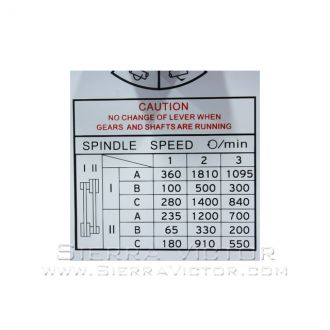

Spindle Speed
|
9 (70 – 1400 rpm)
|
|
Swing In Gap
|
17"
|
|
Swing Over Bed
|
12"
|
|
Swing Over Cross Slide
|
7.625"
|
|

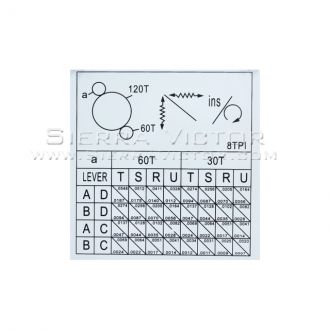

Longitudinal Feed Range
|
0.002" – 0.0548"/rev
|
|
Lead Screw Thread Pitch
|
8 T.P.I.
|
|
Length Of Gap
|
6"
|
|
Max. Tool Selection
|
.625" x .625"
|
|
Cross Feed Range
|
0.007" – 0.0187"/rev
|
|
Distance Between Centers
|
36"
|
|

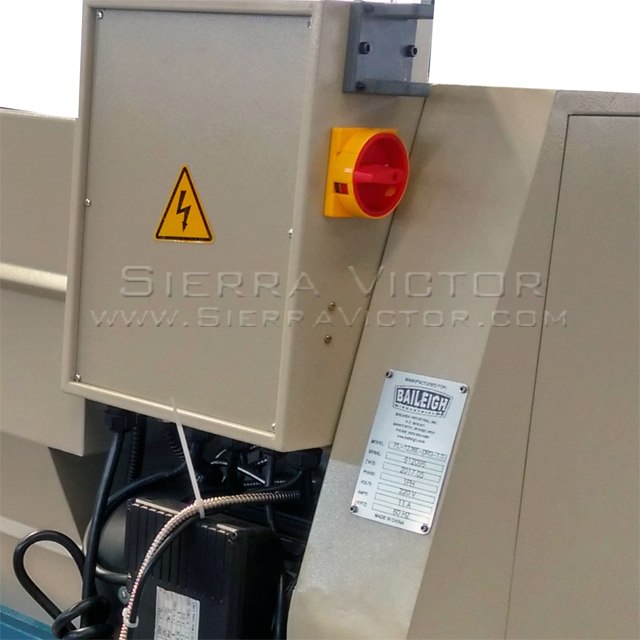

Power
|
220V / 1-phase
|
|
Shipping Weight
|
1,316 lbs.
|
|
Shipping Dimensions
|
67" x 31" x 60"
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
