- Description
- Runs on 220-volt 3-phase power.
- 95 tons of punching pressure and a whopping 123 tons of shearing and notching force.

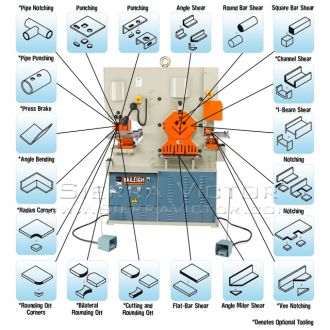

- 5 integrated workstations each execute a different function: punching, notching, flat bar shearing, angle shearing, and bar shearing.
- Dual-operator design enables 2 people to work at opposite ends of the machine simultaneously without loss of power at either station.
- Hydraulic cylinders use entirely vertical movement to perform all functions.

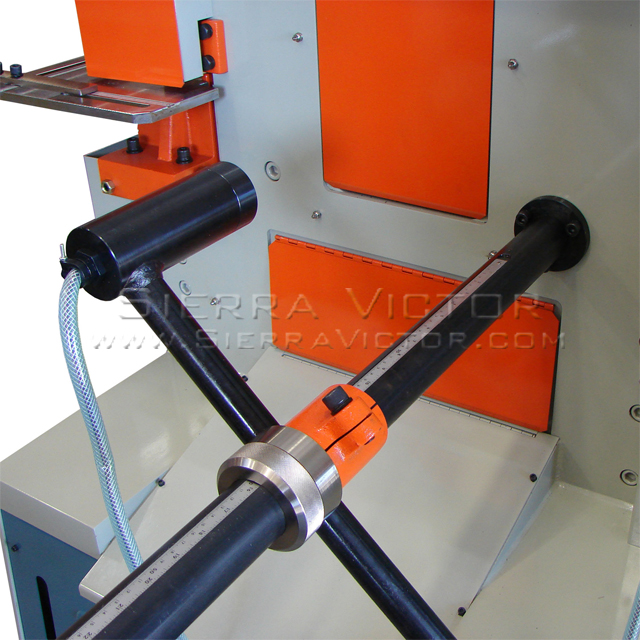

- Electric backgauge and adjustable material stops save you effort and deliver precise results for production runs.
- Large worktables separate into 2 pieces, allowing you to get angle iron and oddly-shaped materials to the punch without difficulty.
- Includes 7 sets of punches and dies to accommodate a variety of applications.
- Accepts universal tooling. Jog dial allows for simple and secure tool alignment.
- Foot pedal provides convenient stop and start control.
- Adjustable stroke control of both the upward and downward strokes limits movement and reduces costs.
- Extra-deep 16” throat depth at the punch station handles large pieces of material and increases capacity.
- Hydraulic hold-downs at the shear station ensure safe operation and even cuts.
- Waste buckets keep your shop neat and reduce time spent on clean-up.
- Heavy structural steel plate framework ensures rigidity and eliminates flexing.
- Baileigh covers this ironworker with a 1-year parts warranty and lifetime technical support by phone.
- You won’t find another ironworker that can muster such heavy force across 5 function stations.
- Vertical hydraulic movement needs less clearance and decreases material waste. By contrast, many competing brand ironworkers depend on less efficient pivot mechanisms.
- The SW-95 will let you finish tasks twice as fast by enabling 2 people to use it at the same time.
- Punch tooling lasts longer on the SW-95 because stress is spread out over the entire circumference of the punch instead of just one edge.

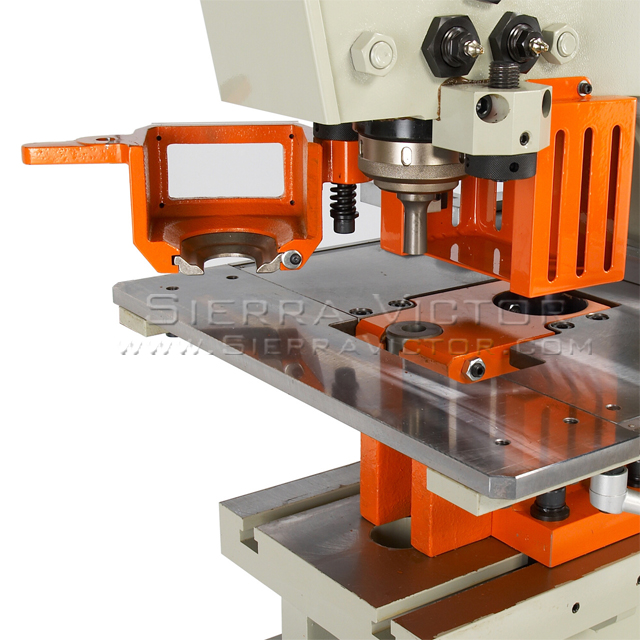

- Baileigh’s patented swing-away stripper allows for the quickest tooling changes in the industry.
- Comes standard with a number of extras, like waste buckets and oversized work tables, features that other manufacturers consider upgrades.
- Manufacturer
- Specifications

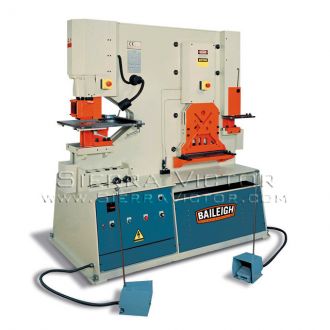

BAILEIGH Hydraulic Ironworker SW-95
Looking to increase productivity in your shop? This hydraulic ironworker enables 2 operators to work independently at any of the machine’s 5 stations. Plus, the machine’s pure vertical movement minimizes distortion and delivers clean cuts every time.
Why choose the SW-95 over similar machines?
ITEM: 95 Ton Hydraulic Ironworker
MANUFACTURER: BAILEIGH
MODEL: BA9-1007865
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Ironworkers
Power Source:
Hydraulic
Metalworking
Pressure:
90+ Tons
MODEL
|
SW-95
|
Country of Manufacture
|
Taiwan
|
Round Bar Shear
|
1.75"
|
Rectangle Notcher W x D x T
|
2" x 3.5" x .5"
|
Single Vee Press Brake L x T
|
9.875" x .625"*
|
Punch Capacity
|
1.062" x .875"
|
Punching Pressure
|
95 Tons
|
Pipe Notching
|
4.4"*
|
Multi Vee Press Brake L x T
|
19.625" x .187"*
|
Notching Working Height
|
41.3"
|
Throat Depth
|
16"
|
Vee Notcher Side x Side x T
|
4.1" x 4.1" x .5"*
|
Working Height
|
41.3"
|
Square Bar Shear
|
1.75" x 1.75"
|
Angle Shearing Working Height
|
40.9"
|
Angle Shearing at 90°
|
5.125" x 5.125" x .5"
|
Angle Bending
|
4" x .312"*
|
Angle Flange Trim
|
4"
|
Blade Length
|
16.125"
|
Large V Notcher Side x Side x T
|
5.75" x 5.75" x .375"*
|
Max. Stroke Length
|
3.93"
|
Diameter x Thickness
|
2" x .5"
|
Cycles / Min.
|
38 @ 15 mm
|
Flat Bar Shearing
|
16" x .75"
|
Flat Shearing Working Height
|
28.5"
|
Power
|
220V / 3-phase
|
Shipping Dimensions
|
70.6" x 40.1" x 73.4"
|
Shipping Weight
|
6,050 lbs.
|
*Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
