- Description

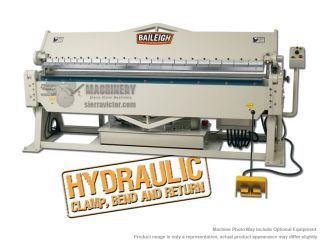

- Supported by a fully-welded steel frame, the BB-9612H Hydraulic Box and Pan Brake can bend 12-gauge mild steel (or lighter) across its full 8-foot (96”) width.
- 135° maximum bend angle
- Comes standard with 22 fingers (6 fingers of 3”, 4 of 4”, 10 of 5”, and 2 of 6”) that you can adjust to make different sizes of boxes and pans
- Powerful industrial-grade hydraulics lift the leaf and lift or clamp the beam
- You can run this hydraulic sheet metal brake in manual or semi-automatic mode via toggle or foot pedal controls
- Adjustable bend auto-stop, for easy and exact repeatability, makes this a very production-oriented hydraulic sheet metal brake
- Apron angle bar detaches to let you get closer between bends
- Electro-welded beam and leaf, stabilized with truss rods, minimizes deflection when you’re bending at full capacity and keeps bends crisp and accurate
- Manufacturer
- Specifications
BAILEIGH 8 ft x 12 ga Hydraulic Box and Pan Brake BB-9612H
ITEM: 8 ft x 12 ga Hydraulic Box and Pan Brake
MANUFACTURER: BAILEIGH
MODEL: BB-9612H
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
8 ft (96 in.+)
Mild Steel Capacity:
12 ga
Bending Length |
96 in. (8ft) |
Mild Steel Capacity (Gauge) |
12 ga |
Max. Bend (Deg.) |
0 – 135° |
Finger Sizes |
22 fingers
(6 fingers of 3”, 4 of 4”, 10 of 5”, and 2 of 6”) |
Beam Adjustment (Front to Rear) (In.) |
1 |
Maximum Box Depth (In.) |
6 |
Motor |
3 HP |
Input Power |
220V / 3-phase |
Shipping Dimensions (L/W/H) |
136 x 46 x 68 in. |
| Weight |
5,200 lbs. |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
