- Description
- This Hydraulic Box and Pan Brake improves on our manual BB-12014 with adjustable angle auto-stop bending and more power. A welded steel frame ensures accuracy and prevents twisting.
- Simple to operate with adjustable angle auto-stop:
*Dial in the desired bend degree (including spring back).
*Load the machine.
*Begin the cycle by stepping on the foot pedal controls.
*Machine clamps the material, and the leaf will lift to the desired angle and return.
*Upper beam unclamps the material, ready for the next bend. - Maximum capacity of 14-gauge mild steel or 18-gauge stainless steel
- 10-foot (120”) working width
- Maximum bend angle of 135°
- Runs on 220-volt 3-phase power
- Industrial-grade hydraulic system cuts down on operator effort for production runs, making your shop more efficient and saving you money
- You can operate the machine from the control panel or with the included foot pedal
- Includes 26 hardened fingers of various sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6")
- Fully welded steel frame and support rods add rigidity to the overall structure to provide years of trouble-free use
- Manufacturer
- Specifications

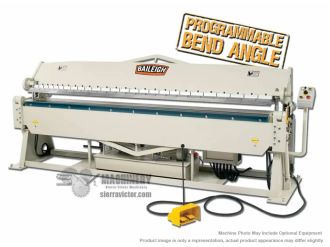

BAILEIGH 10ft x 14 gauge Hydraulic Sheet Metal Brake BB-12014H
ITEM: 10ft x 14 ga Hydraulic Sheet Metal Box and Pan Brake
MANUFACTURER: BAILEIGH
MODEL: BB-12014H
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
Bending Length |
120 in. (10ft) |
Mild Steel Capacity (Gauge) |
14 ga |
Max. Bend (Deg.) |
0 – 135° |
Finger Sizes |
26 hardened fingers of various sizes
(6 fingers of 3", 4 of 4", 10 of 5", 6 of 6") |
Beam Adjustment (Front to Rear) (In.) |
1 |
Maximum Box Depth (In.) |
6 |
Motor |
3 HP |
Input Power |
220V / 3-phase |
Shipping Dimensions (L/W/H) |
154 x 46 x 68 in. |
Weight |
5,830 lbs. |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
