- Description
- This Hydraulic Box and Pan Brake will offer years of profitable service in any production shop. A fully-welded steel plate frame ensures accuracy when bending heavy gauges.
- *Bends 10-gauge mild steel and 12-gauge stainless steel or lighter.
*10 feet (120”) bending length.
*Maximum bend angle of 135° - Industrial-grade hydraulic system does all the following:
*Clamps the material at the fingers,
*Lifts the bend leaf to the pre-set bend angle,
*Opens the beam when the bend is complete. - Hydraulically driven bend leaf with a 5 hp motor runs on 220-volt three-phase power with an extra-rigid base design that supports the weight of heavier materials
- Made using only the most durable and high-quality electrical components
- Includes 26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", and 6 of 6") - adjust them for different box and pan applications
- Adjustable auto-stop: just dial in the bend degree when using the hydraulic bending brake in manual or semi-automatic mode
- Variable bend speed and clamping pressure adjustment give you control over the material

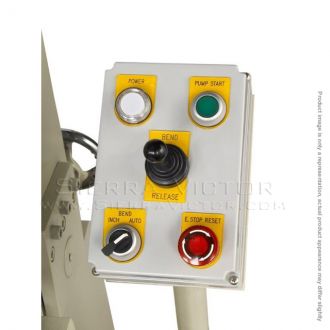

- You can operate the machine by toggle from the console, or by using the foot pedal controls
- Semi-automatic bending mode with foot pedal control will increase productivity, reduce operator effort, and streamline production runs
- Material thickness adjustment enables you to take on many gauges of sheet metal and easily switch between them
- Greaseable joints and filtered hydraulic system enable this sheet metal brake to work smoothly for years
- Electro-welded steel frame, with massive truss rods, minimizes deformation when bending at full capacity
- Manufacturer
- Specifications

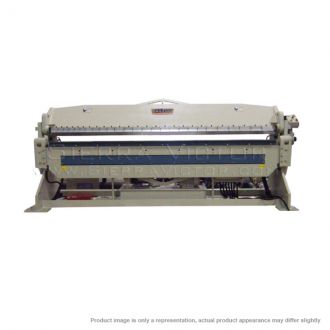

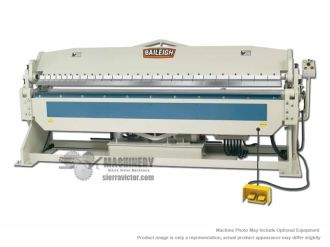

BAILEIGH 10ft x 10 ga. Hydraulic Box and Pan Brake BB-12010H
ITEM: 10ft x 10 ga Hydraulic Box & Pan Brake
MANUFACTURER: BAILEIGH
MODEL: BB-12010H
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
10 ga
Bending Length |
120 in. (10ft) |
Mild Steel Capacity (Gauge) |
10 ga |
Max. Bend (Deg.) |
0 – 135° |
Maximum Box Depth (In.) |
6 |
Finger Sizes |
26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", and 6 of 6") |
Motor |
5 HP |
Input Power |
220V / 3-phase |
Shipping Dimensions (L/W/H) |
158 x 44 x 70 in. |
Weight |
7,700 lbs. |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
