- Description
- This economical magnetic drill machine comes with everything you need to get started out of the case. The drill’s magnet has a whopping 10,000N of adhesion strength, enabling you to cut at angles that other types of drills can’t manage.
- Robust single-speed 110-volt industrial motor will offer years of trouble-free productivity.
- Handles a twist drill capacity of up to 1” and an annular cutter capacity of 1.375”.
- Drill spins at 700 rpm, suitable for most cutting applications.
- Gravity feed coolant system extends the longevity of the tooling and makes cuts faster and more efficient.
- Industry standard .75” spindle makes it easy to find compatible tooling.
- Rigid steel frame with injection molded exterior maintains accuracy and reduces flexing.

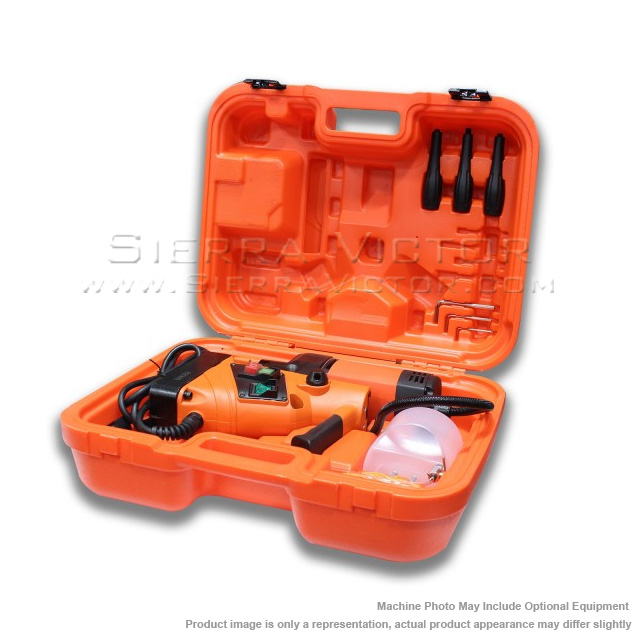

- Heavy duty ABS carrying case helps you transport the drill to job sites.
- You can count on a 1-year parts warranty, plus lifetime technical support by phone from Baileigh’s experienced team.
- We keep the the MD-3510 in stock for fast deliveries.
- Recommended for: Fabrication shops or structural steel companies.
- Manufacturer
- Specifications
BAILEIGH 1" Magnetic Drill MD-3510
ITEM: Magnetic Drill
MANUFACTURER: BAILEIGH
MODEL: MD-3510
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Magnetic Drills
Material Thickness |
0.59” – 1.96” |
Base Size |
8.26” x 3.93” x 1.77” (Magnet) |
Twist Drill Capacity |
1/16" to 1" |
Maximum Stroke |
5.9" |
Cutter Depth |
2" |
Annular Cutter Capacity |
1.37" |
Magnetic Adhesion |
10000N |
No Load RPM |
700 |
Spindle Holder |
3/4" |
Power |
110V |
Shipping Dimensions |
24" x 8" x 19" |
Shipping Weight |
38 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
