- Description
- This economical belt driven drill press runs smoothly even at full capacity - this 14" drill press lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.
- .5 hp motor requires 110 volt power and will work at any shop or site.
- Belt driven head drills a maximum capacity of 5/8” steel.
- 5 speeds in the range from 250 to 2900 rpm to suit your application.
- 2-7/8" steel column eliminates flexing even when drilling at full capacity.

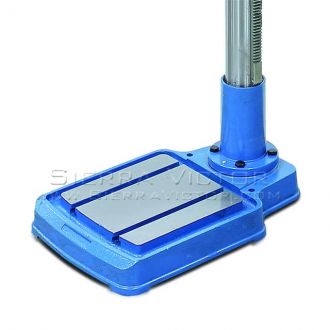

- Rigid cast iron base and table add strength to the drill’s structure.
- Includes a safety shield around the drill head to protect you.
- Baileigh backs this drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team.
- Manufacturer
- Specifications
- Custom Freight
BAILEIGH 5/8" Drill Press DP-0625E
ITEM: 14" Drill Press
MANUFACTURER: BAILEIGH
MODEL: DP-0625E
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Drill Presses
Machine Sub-Category:
Belt Driven
Spindle Speeds |
5 |
Swing |
14" |
Diameter of Column |
2-7/8" |
Base Size |
25-3/4" x 16-1/2" |
Table Size |
11" x 11" |
Quill Diameter |
1-3/4" |
Spindle Nose to Table |
6" Min to 36" Max |
Spindle Nose to Base |
48" |
Spindle Taper |
B16 |

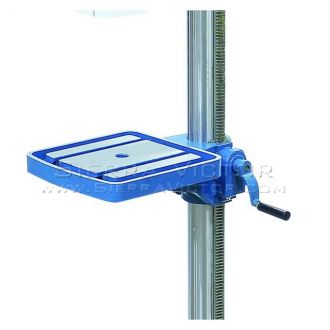

Table Angle Adj |
360° |
Main Motor |
1/2 HP |
Rpm |
250, 700, 1150, 1900, & 2900 |
Drill Capacity Steel |
5/8" |
Power |
110 Volt |
Special Notes |

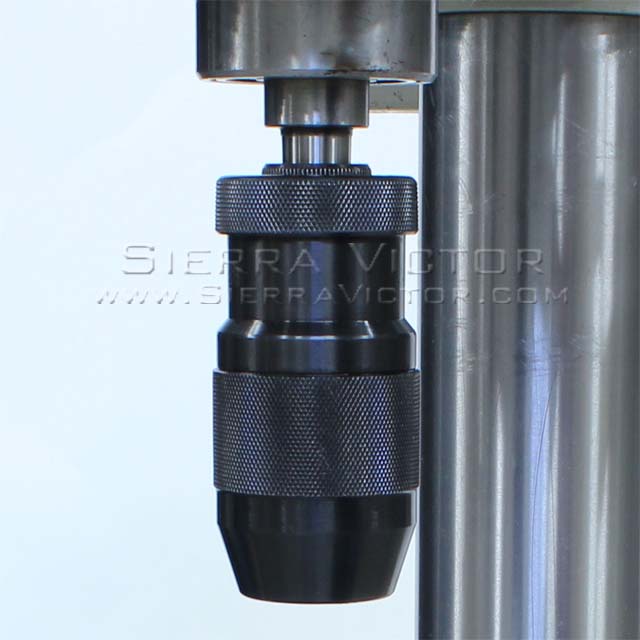

Includes B-16 1-16mm Keyless Chuck |
Shipping Dimensions (L / W / H) |
60" x 26" x 17" |
Shipping Weight |
230 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
