- Acra’s Precision Gap Bed Heavy Duty Engine Lathes are made in Taiwan and features the following:
- Headstock:
• The spindle is supported by high precision bearings suitable for both heavy and precision cutting.
• The speeds of spindle have 12 steps and designed on theoretical base. All gears and shafts are made of Ni-Cr-Mo steel and carbonize and ground.
• Control of main drive through electromagnetic brake, and automatic forced lubrication.
• Spindle Bore size selections- 153mm (6”), 230mm (9”), 255mm (10”), 310mm (12”), 355mm (14”), 405mm (16”), & 530mm (21”). - Gearbox:
• The Gear Box is entirely enclosed construction and provide a range of feedings or thread cuttings (inch, metric, module pitch and diametrical pitch).
• Inch and Metric threading without changing gears.
• Oil both lubrication and built in safety clutch safeguards the continuous and proper operation of the universal gear box. - Carriage and Apron:
• The Compound Rest can be fixed on the cross-slide anywhere, convenient for cutting work application.
• The Apron gives automatic lubrication and locked-safety device protects threads and feeding.
• Rapid traverse drive for longitudinal-cross feeding and forward & reverse feed operates very light and convenient. - Taper Attachment:
• The Taper Attachment is designed to easily operate and rapidly cut taper in high accuracy; the device can produce ± 10 angles.
• Electric cable in steel cover to protect wire from chips and prevent trouble with electric wires. - Halogen Light
- 4 Way Tool Holder
- Travel Splash Guard
- 4 Way Rapid Travel
- Coolant System
- Manufacturer
- Specifications
- Options/Accessories
- Steady Rest (2-3/4" ~ 16-15/16") ...................... $ 3,850.00
- Steady Rest (11" ~ 23-1/2") .............................. $ 6,300.00
- Steady Rest (23”~ 34-5/8”)……………………… $ 11,150.00
- Follow Rest………………................................... $ 1,900.00
- Face Plate ........................................................ $ 1,350.00
- 9" Spindle Bore A2-15....................................... $ 22,250.00
- 10” Spindle Bore A2-15.…………...……………. $ 30,000.00
- 12.2” Spindle Bore A2-20………...........………. $ 75,000.00
- 14” Spindle Bore…………………............……... $ 83,350.00
- 21” Spindle Bore A2-28……………….....……... $ 122,250.00
- Taper Attachment……..…………………………. $ 6,700.00
- Installation Taper Attachment .......................... $ 1,150.00
- 40" Chuck Cover ............................................. $ 3,900.00
- Full Length Splash Guard 80" ......................... $ 1,850.00
- Full Length Splash Guard 120" ....................... $ 2,450.00
- Full Length Splash Guard 160" ....................... $ 3,100.00
- Full Length Splash Guard 200" ....................... $ 4,300.00
- Full Length Splash Guard 240" ....................... $ 5,450.00
- Auto Rapid Threading Device………………….. $ 11,150.00
- Aloris Tool Post Set (DA) 5pc…..……………… $ 2,150.00
- Newall Digital Read-Out-60"/80"/100"/120"/160"/200"/240"/280"/320”/360”/400”.………… $ P.O.R.
- Custom Freight

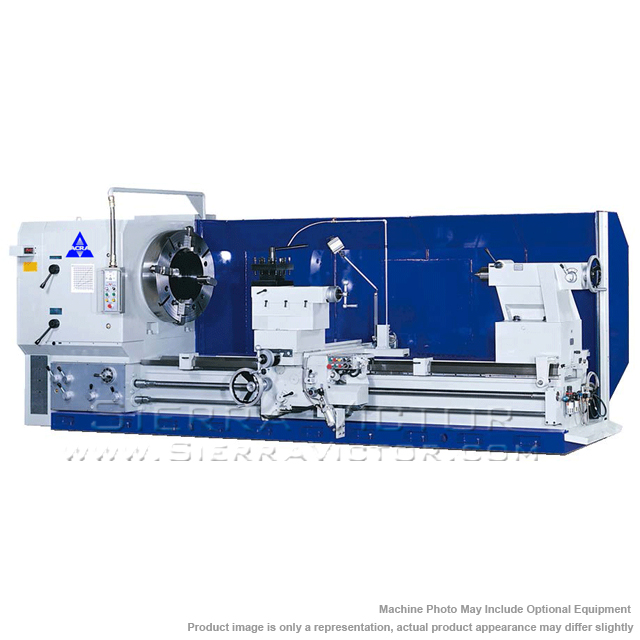

ACRA 51" x 60" - 400" Heavy Duty Precision Gap Bed Engine Lathes 5100SGT
STANDARD EQUIPMENT:
ITEM: 51" x 60" - 400" Heavy Duty Precision Gap Bed Engine Lathes
MANUFACTURER: ACRA
MODEL: 5100SGT
Manufacturer:
ACRA
Lathes
Lathe Size:
51" x 60"+
Lathe Type:
Engine
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Gap Bed
MODEL
|
5160SGT |
5180SGT |
51120SGT |
51160SGT |
|
CAPACITY
|
Swing Over Bed: |
51.57" |
|||
Swing Over Cross Slide: |
39.37" |
||||
Swing In Gap: |
72.83" |
||||
Distance Between Centers |
60" |
80" |
120" |
160" |
|
Bed Width |
26" |
||||
HEADSTOCK
|
Spindle Nose: |
A2-11 |
|||
Spindle Bore: |
6.02" |
||||
Taper of Spindle: |
MT NO.6 |
||||
Spindle Speeds – Range: |
3~300 RPM |
||||
CARRIAGE
|
Cross Slide Travel: |
25" |
|||
Compound Slide Travel: |
16-1/2" |
||||
Rapid Travel Speed to Carriage: |
807" /minute |
||||
THREAD & FEEDS
|
Inch Threads: |
1/4 ~ 30 TPI |
|||
Metric Threads: |
1 ~ 120 mm |
||||
Module Threads: |
0.25 ~ 30 mm |
||||
Diametrical Threads: |
1 ~ 120 D.P. |
||||
Longitudinal Feeds: |
0.004" ~ 0.40" /rev |
||||
Cross Feeds: |
0.002" ~ 0.20" /rev |
||||
TAILSTOCK
|
Quill Diameter: |
4-7/8" |
|||
Quill Travel: |
13-3/8" |
||||
Quill Taper: |
MT NO.6 |
||||
POWER
|
Spindle Drive Motor: |
30 HP x 4P |
|||
Voltage: |
230/460V AC/3PH |
||||
MEASUREMENT
|
Weight
|
18,500 lbs. |
19,750 lbs. |
22,400 lbs. |
25,050 lbs. |
Dimensions
|
160" x 80" 80" |
180" x 80" 80" |
220" x 80" 80" |
260" x 80" 80" |
|
MODEL
| 51200SGT | 51240SGT | 51280SGT | |
CAPACITY
| Swing Over Bed: | 51.57" | ||
Swing Over Cross Slide: | 39.37" | |||
Swing In Gap: | 72.83" | |||
Distance Between Centers | 200" | 240" | 280" | |
Bed Width | 26" | |||
HEADSTOCK
| Spindle Nose: | A2-11 | ||
Spindle Bore: | 6.02" | |||
Taper of Spindle: | MT NO.6 | |||
Spindle Speeds – Range: | 3~300 RPM | |||
CARRIAGE
| Cross Slide Travel: | 25" | ||
Compound Slide Travel: | 16-1/2" | |||
Rapid Travel Speed to Carriage: | 807" /minute | |||
THREAD & FEEDS
| Inch Threads: | 1/4 ~ 30 TPI | ||
Metric Threads: | 1 ~ 120 mm | |||
Module Threads: | 0.25 ~ 30 mm | |||
Diametrical Threads: | 1 ~ 120 D.P. | |||
Longitudinal Feeds: | 0.004" ~ 0.40" /rev | |||
Cross Feeds: | 0.002" ~ 0.20" /rev | |||
TAILSTOCK
| Quill Diameter: | 4-7/8" | ||
Quill Travel: | 13-3/8" | |||
Quill Taper: | MT NO.6 | |||
POWER
| Spindle Drive Motor: | 30 HP x 4P | ||
Voltage: | 230/460V AC/3PH | |||
MEASUREMENT
| Weight
| 27,700 lbs. | 30,320 lbs. | 32,960 lbs. |
Dimensions
| 300" x 80" 80" | 340" x 80" 80" | 380" x 80" 80" | |
MODEL | 51320SGT | 51360SGT | 51400SGT | |
CAPACITY | Swing Over Bed: | 51.57" | ||
Swing Over Cross Slide: | 39.37" | |||
Swing In Gap: | 72.83" | |||
Distance Between Centers | 320" | 360" | 400" | |
Bed Width | 26" | |||
HEADSTOCK | Spindle Nose: | A2-11 | ||
Spindle Bore: | 6.02" | |||
Taper of Spindle: | MT NO.6 | |||
Spindle Speeds – Range: | 3~300 RPM | |||
CARRIAGE | Cross Slide Travel: | 25" | ||
Compound Slide Travel: | 16-1/2" | |||
Rapid Travel Speed to Carriage: | 807" /minute | |||
THREAD & FEEDS | Inch Threads: | 1/4 ~ 30 TPI | ||
Metric Threads: | 1 ~ 120 mm | |||
Module Threads: | 0.25 ~ 30 mm | |||
Diametrical Threads: | 1 ~ 120 D.P. | |||
Longitudinal Feeds: | 0.004" ~ 0.40" /rev | |||
Cross Feeds: | 0.002" ~ 0.20" /rev | |||
TAILSTOCK | Quill Diameter: | 4-7/8" | ||
Quill Travel: | 13-3/8" | |||
Quill Taper: | MT NO.6 | |||
POWER | Spindle Drive Motor: | 30 HP x 4P | ||
Voltage: | 230/460V AC/3PH | |||
MEASUREMENT | Weight | 34,300 lbs. | 40,160 lbs. | 42,800 lbs. |
Dimensions | 400" x 80" 80" | 420" x 80" 80" | 440" x 80" 80" | |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
