- Description
- Made in Taiwan - High Quality!
- Acra’s Precision Gap Bed Engine Lathes are made in Taiwan and features the following:
- Headstock:
• All gears and mandrel are made of alloy steel with heat treatment and precision ground.
• Rotating type speed changing system is easy to operate. - Spindle:
• Large bore spindle, supported by 3-point precision bearings.
• Suitable for heavy-duty cutting. - Tailstock:
• With speed reduced quill suitable for heavy duty drilling, hand wheel is with dual dial.. - Apron & Saddle:
• Easy-operated overload protect safety devise.
• Central lubrication system can be operated manually or automatically. - Gear Box:
• Universal gear box design, is able to cut metric thread, Imperial thread, module thread without changing gears. - Lathe Bed:
• High tensile ribs structure. high precision and wide bed surface.
• With hardened and precision ground.
• One piece structure lathe bed enhances the machines life and working performance. - Auto Longitudinal Stop:
• Auto longitudinal travel devise will control the feed of tool post. - Emergency Brake System:
• More safe emergency brake system can shut off power supply simultaneously. - 20" 3-Jaw Chuck
- Full Length Rear Splash Guard
- Coolant System
- Halogen Light
- Full Length Splash Guard
- Rapid Travel
- Steady/Follow Rest
- 4 Way Tool Holder
- Manufacturer
- Specifications
- Options/Accessories
- Steady Rest (20”) …………………………………. $ 3,500.00
- Steady Rest (24”) SET36 Only…..………………. $ 4,500.00
- Face Plate………………………..…………………. $ 1,250.00
- Taper Attachment……………………………..……. $ 4,000.00
- Installation Taper Attachment………………..……. $ 750.00
- Change 6” to 9” A2-15 Nose………………………. $ 20,000.00
- Newall Digital Read-Out-60" DP700………....…… $ 3,250.00
- Newall Digital Read-Out-60" NMS300……………. $ 1,650.00
- Newall Digital Read-Out-80" DP700.……………... $ 4,000.00
- Newall Digital Read-Out-80" NMS300…………..... $ 1,900.00
- Newall Digital Read-Out-120" DP700…..………… $ 5,200.00
- Newall Digital Read-Out-120" NMS300……...….... $ 2,450.00
- Newall Digital Read-Out-160” DP700……….……. $ 6,500.00
- Newall Digital Read-Out-200” DP700……..……… $ 8,100.00
- Newall Digital Read-Out-240” DP700…….….…… $ 8,600.00
- Acu-Rite Digital Read-Out-60"/80"/120" 203/303.......................... $ P.O.R.
- Fagor or Mitutoyo Digital Read-Out…...............…………………… $ P.O.R.
- Import Quick Change Tool Post …….……………….……….……… $ 1,600.00
- Aloris Tool Post Set (DA) 5 pc……....……………………………….. $ P.O.R.
- Custom Freight

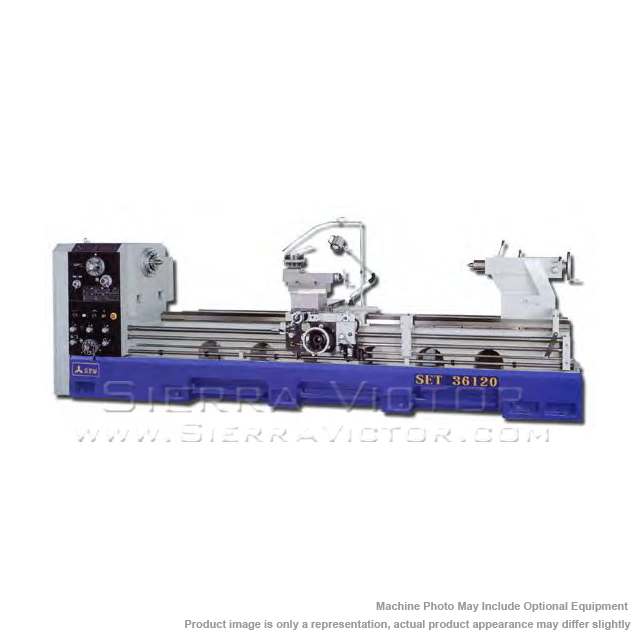

ACRA 36" x 60" - 280" Precision Gap Bed Engine Lathes 3600SET
STANDARD EQUIPMENT:
ITEM: 36" x 60" - 280" Precision Gap Bed Engine Lathes
MANUFACTURER: ACRA
MODEL: 3600SET
Manufacturer:
ACRA
Lathes
Lathe Size:
36" x 60"+
Lathe Type:
Engine
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Gap Bed
MODEL
|
3660SET
|
3680SET |
36120SET |
36160SET |
|
CAPACITY
|
Swing Over Bed: |
36.61" |
|||
Swing Over Cross Slide: |
27.56" |
||||
Swing In Gap: |
47.24" |
||||
Distance Between Centers |
60" |
80" |
120" |
160" |
|
Bed Width |
18-1/8" |
||||
HEADSTOCK
|
Spindle Nose: |
A2-11 |
|||
Spindle Bore: |
6.02" |
||||
Taper of Spindle: |
MT NO.5 |
||||
Spindle Speeds – Steps: |
12 |
||||
Spindle Speeds – Range: |
15 ~ 1,000 RPM |
||||
CARRIAGE
|
Cross Slide Travel: |
16-1/2" |
|||
Compound Slide Travel: |
10" |
||||
THREAD & FEEDS
|
Inch Threads: |
2 ~ 28 TPI |
|||
Metric Threads: |
0.8 ~ 14 mm |
||||
Longitudinal Feeds: |
0.05" ~ 0.7 mm/rev |
||||
Cross Feeds: |
0.025 ~ 0.35 mm/rev |
||||
TAILSTOCK
|
Quill Diameter: |
3-3/4" |
|||
Quill Travel: |
9" |
||||
Quill Taper: |
MT NO.5 |
||||
POWER
|
Spindle Drive Motor: |
25 HP x 4P |
|||
Voltage: |
230/460V AC /3 PH |
||||
MEASUREMENT
|
Weight
|
12,100 lbs. |
13,000 lbs. |
15,100 lbs. |
16,900 lbs. |
Dimensions
|
138" x 63" x 75" |
158" x 63" x 75" |
197" x 63" x 75" |
237" x 63" x 75" |
|
MODEL
| 36200SET | 36240SET | 36280SET | |
CAPACITY
| Swing Over Bed: | 36.61" | ||
Swing Over Cross Slide: | 27.56" | |||
Swing In Gap: | 47.24" | |||
Distance Between Centers | 200" | 240" | 280" | |
Bed Width | 18-1/8" | |||
HEADSTOCK
| Spindle Nose: | A2-11 | ||
Spindle Bore: | 6.02" | |||
Taper of Spindle: | MT NO.5 | |||
Spindle Speeds – Steps: | 12 | |||
Spindle Speeds – Range: | 15 ~ 1,000 RPM | |||
CARRIAGE
| Cross Slide Travel: | 16-1/2" | ||
Compound Slide Travel: | 10" | |||
THREAD & FEEDS
| Inch Threads: | 2 ~ 28 TPI | ||
Metric Threads: | 0.8 ~ 14 mm | |||
Longitudinal Feeds: | 0.05" ~ 0.7 mm/rev | |||
Cross Feeds: | 0.025 ~ 0.35 mm/rev | |||
TAILSTOCK
| Quill Diameter: | 3-3/4" | ||
Quill Travel: | 9" | |||
Quill Taper: | MT NO.5 | |||
POWER
| Spindle Drive Motor: | 25 HP x 4P | ||
Voltage: | 230/460V AC /3 PH | |||
MEASUREMENT
| Weight
| 18,700 lbs. | 20,500 lbs. | 22,400 lbs. |
Dimensions
| 276" x 63" x 75" | 315" x 63" x 75" | 355" x 63" x 75" | |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
