- Description
- Victor JF-2EVS electronic variable speed vertical knee mill driven by 3 HP frequency inverter drive is built to highest quality standards to ensure reliability and consistency.
- Meehanite casting
- Hardened and ground table and slide ways
- Turcite-B on X & Y-axis slide ways
- Double saddle locks
- Precision hand scraped
- High precision chromed quill
- Built-in one shot lube system
- 3 HP frequency inverter drive motor
- Variable frequency drive
- Draw bar
- Front rubber way cover
- Rear rubber way cover
- One-shot lube system
- Tool box with tools
- Manufacturer
- Specifications
- Custom Freight

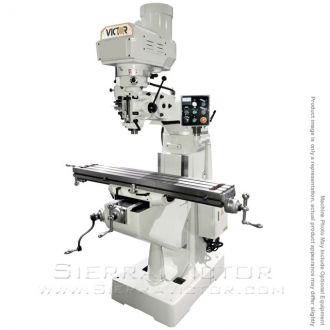

VICTOR 9" x 49" Electronic Variable Speed Mill JF-2EVS
STANDARD ACCESSORIES:
ITEM: 9" x 49" Electronic Variable Speed Mill
MANUFACTURER: VICTOR
MODEL: JF-2EVS
Manufacturer:
Victor
Machine Type
Machine Category:
Mills
Metalworking
Mill Capacity:
9" x 49"
CAPACITY
|
Table size |
9" x 49" |
|
Longitudinal travel (X-axis) |
35” (No Powerfeed) |
32” w/Powerfeed |
|
Cross travel (Y-axis) |
12" |
||
Vertical travel of knee |
16" |
||
Distance from spindle nose to table |
18.5" |
||
Slide ways |
Dovetail |
||
SPINDLE
|
Spindle motor |
3 HP, 3 Ph. (Single phase optional) |
|
Spindle taper |
R8 |
||
Spindle speeds |
60 ~ 4,200 rpm (Inverter drive electronic variable speed) |
||
Quill travel |
5" |
||
Quill feeds |
0.0017” (0.04 mm), 0.0032” (0.08 mm), 0.0053” (0.13 mm) |
||
Quill diameter |
3-3/8" |
||
Swiveling angle of head |
90º |
||
Head inward & outward |
45º |
||
WEIGHT & DIMENSIONS
|
Overall height |
83" |
|
Overall depth |
76.15" |
||
Overall width |
89" |
||
Packing dimensions (LxWxH):
|
55” x 54” x 74” |
||
Approx. Net weight:
|
2,050 lbs.
|
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
