- Description
- Precision built electronic variable speed lathe combines accuracy, ease of use, rigidity and large 3-1/8" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability.
- Inverter drive infinitely variable speed spindle system
- Easy spindle speed change by rotary switch control
- Large 3-1/8" thru spindle hole
- One-piece high rigidity and low vibration base
- Thermal treated Meehanite cast bed
- Hardened and precision ground bedways
- Thermal treated and precision ground alloy gears
- Universal gearbox for both inch and metric threading
- Double reservoir oil bath type cross slide
- Safety overload device
- Wear-resistant phosphor bronze leadscrew nuts
- High capacity coolant tank provides sufficient coolant output
- Variable frequency drive
- Removable gap
- Tailstock
- Coolant system
- Chuck cover with limit switch
- Full length foot brake
- Threading dial indicator
- Auto-feed stopper ring
- Center sleeve
- Dead center M.T. #4
- Leveling screws and pads
- Manual and parts list
- 10" 3-jaw chuck
- Steady rest with rollers
- Follow rest
- 4-way tool post
- Halogen work light
- Full length splash guard
- Chuck cover w/ limit switch
- Manufacturer
- Specifications
- Options/Accessories
- Digital readout (DRO)
- Quick change tool post
- Taper turning attachment
- 3-jaw scroll chuck
- 4-jaw independent chuck
- Full length splash guard
- Driving plate
- Steady rest with rollers
- Follow rest
- Face plate
- 4-position carriage stop
- Micro carriage stop
- Drill chuck and 4MT arbor
- Live center 4MT
- 5C lever type collet closer
- 5C collet set
- Change gears for D.P. and module thread
- Halogen work light
- Custom Freight

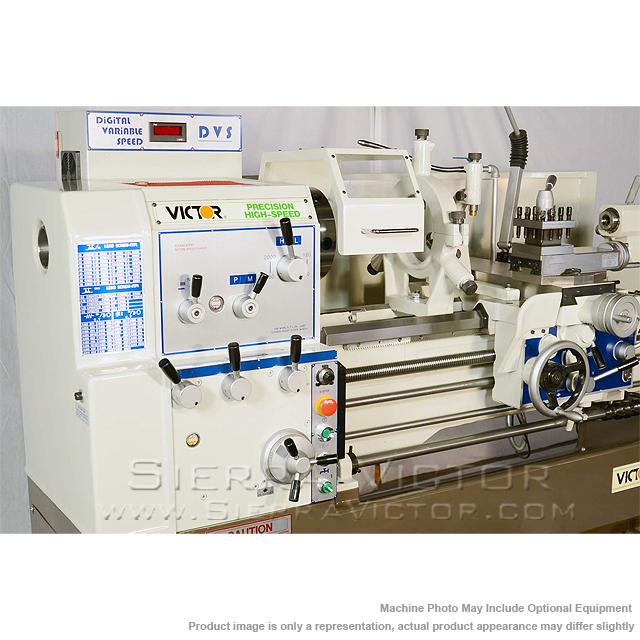

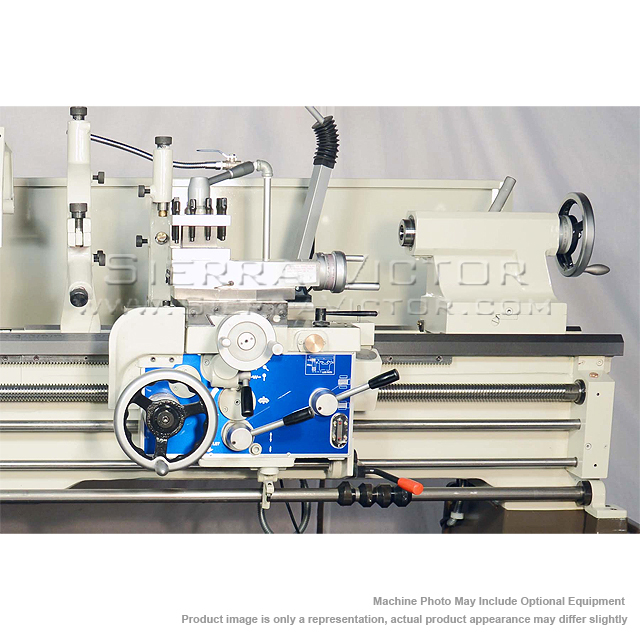

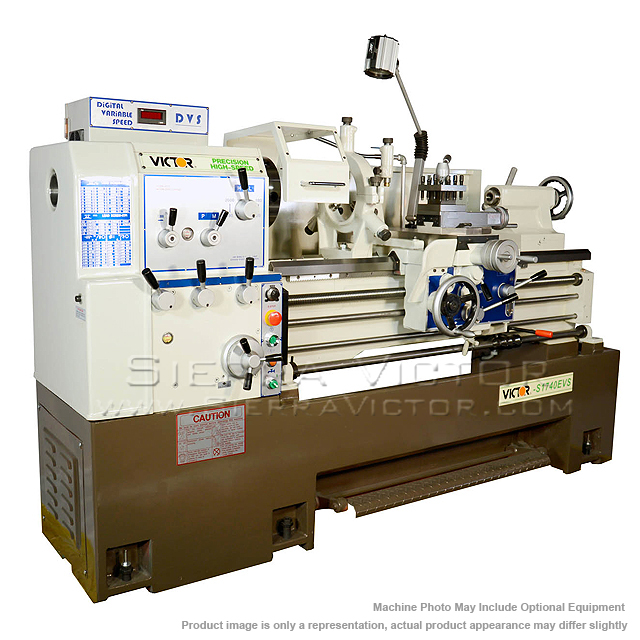

VICTOR 17" x 90" Precision Variable Speed Lathe S1790EVS
STANDARD ACCESSORIES:
MACHINE INCLUDES:
ITEM: 17" x 90" Precision Variable Speed Lathe
MAKE: VICTOR
MODEL: S1790EVS
Manufacturer:
Victor
Lathes
Lathe Size:
17" x 40"+
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Precision
|
MODEL
|
S1790EVS
|
|
|
CAPACITY
|
Swing over bed:
|
17"
|
|
Swing over cross slide:
|
9.45"
|
|
|
Swing over gap:
|
25.59"
|
|
|
Bed width:
|
11.81"
|
|
|
Distance between centers:
|
86.60"
|
|
|
HEADSTOCK
|
Spindle bore diameter:
|
3.13"
|
|
Spindle bore taper:
|
M.T. #7
|
|
|
Taper of center in sleeve:
|
M.T. #4
|
|
|
Spindle nose:
|
D1-8
|
|
|
Number of spindle speeds:
|
Variable - 2 ranges (Inverter control)
|
|
|
Range of spindle speeds (rpm):
|
20 ~ 2,000 rpm
|
|
|
Speed selections:
|
Low gear: 20 ~ 180 rpm
High gear: 180 ~ 2,000 rpm |
|
|
THREADS & FEEDS
|
Range of longitudinal feeds:
|
0.002” ~ 0.03”/rev.
|
|
Range of cross feeds:
|
0.0008” ~ 0.011”/rev.
|
|
|
Inch threads:
|
4 ~ 56 TPI x 36 kinds
|
|
|
Metric threads:
|
0.5 ~ 7 mm x 17 kinds
|
|
|
CARRIAGE
|
Cross slide travel:
|
9.65”
|
|
Compound slide travel:
|
4.92”
|
|
|
TAILSTOCK
|
Tailstock taper center:
|
M.T. #4
|
|
Tailstock quill travel:
|
5.91”
|
|
|
POWER
|
Main motor:
|
7.5 HP, 3 Phase (inverter drive)
|
|
Coolant pump:
|
1/8 HP
|
|
|
WEIGHT & DIMENSIONS
|
Shipping dimensions (LxWxH):
|
143” x 38” x 64”
|
|
Gross weight:
|
5,450 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
