- Super-precision toolroom lathe equipped with a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quiet. With fewer mechanical parts and exceptional built quality, Victor 618EVS toolroom lathe is easy to maintain, yet provides superior accuracy and performance.
- Easy to read digital display on actual spindle rpm
- Infinitely electronic variable spindle speeds from 0 ~ 4,000 rpm
- Spindle runout within 50 millionths
- Dual range inch/metric quick change gearbox
- Electric variable feed control on carriage and cross slide
- Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
- Hardened and ground alloy tool steel bedways
- Turcite-B slideway bearing surface between carriage and bed
- Automatic thread length control with fine adjustable stops to provide accurate threading
- Quick-action tool post slide for threading
- 5C lever type collet closer standard
- 3 HP frequency controlled motor
- Yaskawa Inverter Drive
- Variable frequency drive
- 5C lever type collet closer
- Tool holder
- Drive plate
- Drive gear
- Drive dog
- Test bar
- Headstock center
- Tailstock
- Coolant system
- Leveling screws and pads
- Manual and parts list
- Manufacturer
- Specifications

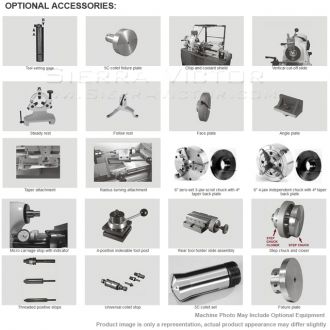

- Options/Accessories
- 6" zero-set 3-jaw chuck with 4º taper back plate
- Chip and coolant shield (High impact resistance Lexan polycarbonate resin)
- Custom Freight
VICTOR Super 6" x 18" Precision Electronic Variable High Speed Toolroom Lathe 618EVS
STANDARD ACCESSORIES:
ITEM: 6" x 18" Super Precision Electronic Variable High Speed Toolroom Lathe
MANUFACTURER: VICTOR
MODEL: 618EVS
Manufacturer:
Victor
Lathes
Lathe Size:
6" x 9"+
Lathe Type:
Toolroom
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Toolroom
|
SPINDLE CAPACITY
|
With jaw chucks |
6" |
With expanding collets |
3" |
|
With round 5C collets |
1-1/16" |
|
With hexagon 5C collets |
7/8" |
|
With square 5C collets |
3/4" |
|
With step chucks |
1-1/16” to 6” |
|
| Spindle nose diameter |
2.189” |
|
Spindle nose I.D. / O.D. |
5C / 4º taper |
|
Hole through spindle |
1-1/4" |
|
Variable spindle speeds |
0 ~ 4,000 rpm (5C Collet) / 0 ~ 3,000 rpm (6” 3-Jaw Chuck) |
|
|
CAPACITY
|
Swing over carriage |
9" |
Distance between center |
18" |
|
Swing over cross slide |
6" |
|
Swing over bed |
11" |
|
|
THREADS, FEEDS & TRAVELS
|
Lead screw diameter |
1” - 8 TPI |
Carriage power feed range |
5/16” ~ 7” |
|
Cross slide power feed range |
3/16” ~ 4” |
|
Cross slide travel |
6" |
|
Quick-action compound slide travel |
0.1" |
|
Compound slide travel |
3" |
|
| Inch threads |
11 ~ 108 TPI (36 thread changes) |
|
Metric threads |
0.275 ~ 2.7 mm (36 thread changes) |
|
|
TAILSTOCK
|
Tailstock spindle diameter |
1.358” |
Tailstock spindle taper |
M.T. #2 |
|
Tailstock spindle travel |
3-3/4" |
|
|
POWER
|
Inverter spindle motor |
3 HP, 220V, 3PH |
Coolant pump: |
1/8 HP |
|
D.C. feed motor |
110V, 70W |
|
|
WEIGHT & DIMENSIONS
|
Machine dimensions (LxWxH):
|
73” x 30” x 67” |
|
Gross weight:
|
2,530 lbs.
|
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
