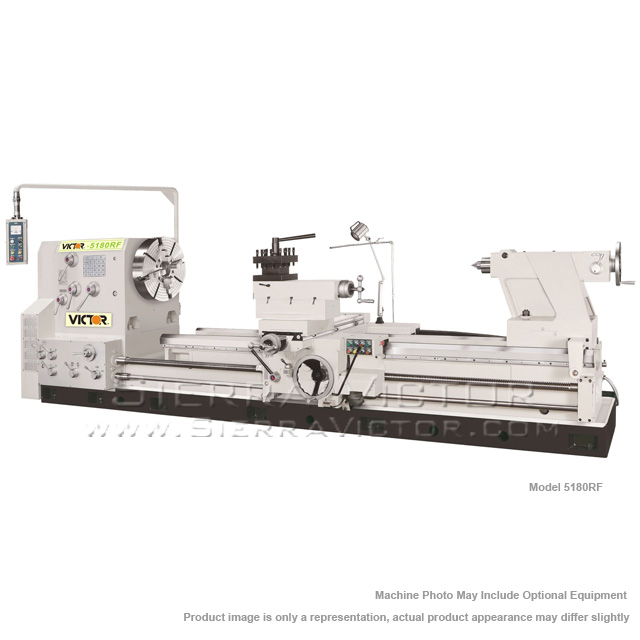

- Victor 4500RF series lathe is designed to provide outstanding performance and structural rigidity with large 6.02" spindle bore suitable for turning and cutting a large workpiece.
- 6.02" spindle bore is designed for large chucking capability
- Carbonized and precision ground Ni-Cr-Mo alloy steel gears and shafts
- The precision ground spindle is supported by high precision bearings suitable for both heavy and precision cutting
- One piece structure bed to enhance the machine life and working performance
- High tensile ribbed wide bed with hardened and precision ground bed ways for rigidity and low vibration
- Universal gearbox for inch, metric, D.P., and module threading without changing gears
- Oil bath lubrication and built-in safety clutch safeguard the continuous and proper operation of the gearbox
- Automatic forced lubrication system in the headstock
- Control of the main drive through the electromagnetic brake
- Tailstock is equipped with a two-speed quill that is suitable for heavy duty and easy drilling work
- Automatic lubrication device built inside the apron
- An overload safety device to protect feeding and threading operations
- 4-way power rapid traverse
- Center sleeve
- Dead center M.T. #6
- Auto lubrication system
- Coolant system
- Tailstock with a two-speed quill
- Removable gap
- 4-way power rapid traverse
- Leveling screws and pads
- Manual and parts list
- Tool box with tools
- Steady rest with rollers
- 4-way power rapid traverse
- Double chuck system
- Auto lube system
- Electromagnetic brake
- 4-way tool post
- Halogen work light
- Manufacturer
- Specifications
- Options/Accessories
- 9” spindle bore (A2-15) upgrade
- 12” spindle bore (A2-20) upgrade
- 15” 3-jaw chuck (A2-11)
- 15” zero-set 3-jaw chuck with A2-11 back plate
- 20” 3-jaw chuck (A2-11)
- 21” zero-set 3-jaw chuck with A2-11 back plate
- 20” 4-jaw chuck (A2-11)
- 25” 4-jaw chuck (A2-11)
- 25” 4-jaw steel body independent chuck (A2-11)
- 32” 4-jaw steel body independent chuck (A2-11)
- Steady rest w/ rollers 11.80” capacity
- Steady rest w/ rollers 23.50” capacity
- Follow rest
- 40” face plate with 4-jaw (A2-11)
- Micro carriage stop
- Taper turning attachment
- Full length splash guard
- Quick change tool set 1-1/2” (one tool post & 4 holders, #1,2,4D,7)
- Custom Freight
VICTOR 4500RF Series 45" x 60" - 240" Big Bore Heavy-Duty Lathes
STANDARD ACCESSORIES:
MACHINE INCLUDES:
ITEM: 45" x 60" - 240" Big Bore Heavy-Duty Lathes
MANUFACTURER: VICTOR
MODEL: 4560RF / 4580RF / 45120RF / 45160RF / 45200RF / 45240RF
Manufacturer:
Victor
Lathes
Lathe Size:
45" x 60"+
Lathe Type:
Large Spindle Bore
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Large Spindle Bore
|
MODEL
|
|
4560RF |
|
CAPACITY
|
Swing over bed:
|
45"
|
|
Swing over cross slide:
|
33.46"
|
|
|
Swing over gap:
|
67"
|
|
|
Bed width:
|
26"
|
|
|
Distance between centers:
|
59.06"
|
|
|
HEADSTOCK
|
Spindle bore diameter:
|
6.02" (9.06" Opt.)
|
|
Taper of center in sleeve:
|
M.T. #6
|
|
|
Spindle nose:
|
A2-11
(Opt. 9.06" or 12.20" bore is A2-20) |
|
|
Number of spindle speeds:
|
12 Steps
|
|
|
Range of spindle speeds (rpm):
|
4 ~ 400 rpm
|
|
|
THREADS & FEEDS
|
Range of longitudinal feeds:
|
0.004" ~ 0.40"/rev.
|
|
Range of cross feeds:
|
0.002" ~ 0.20"/rev.
|
|
|
Inch threads:
|
1/4 ~ 30 TPI x 70 kinds
|
|
|
Metric threads:
|
1 ~ 120 mm x 62 kinds
|
|
|
CARRIAGE
|
Cross slide travel:
|
25"
|
|
Compound slide travel:
|
16.50"
|
|
|
TAILSTOCK
|
Tailstock taper center:
|
M.T. #6
|
|
Tailstock quill travel:
|
13.38"
|
|
|
POWER
|
Main motor:
|
30 HP, 3 Phase
|
|
Coolant pump:
|
1/8 HP
|
|
|
WEIGHT & DIMENSIONS
|
Shipping dimensions (LxWxH):
|
160" x 80" x 80"
|
|
Gross weight: lbs.
|
18,080 lbs.
|
MODEL
| 4580RF
| |
CAPACITY
| Swing over bed:
| 45"
|
Swing over cross slide:
| 33.46"
| |
Swing over gap:
| 67"
| |
Bed width:
| 26"
| |
Distance between centers:
| 78.74"
| |
HEADSTOCK
| Spindle bore diameter:
| 6.02" (9.06" Opt.)
|
Taper of center in sleeve:
| M.T. #6
| |
Spindle nose:
| A2-11 (Opt. 9.06" or 12.20" bore is A2-20) | |
Number of spindle speeds:
| 12 Steps
| |
Range of spindle speeds (rpm):
| 4 ~ 400 rpm
| |
THREADS & FEEDS
| Range of longitudinal feeds:
| 0.004" ~ 0.40"/rev.
|
Range of cross feeds:
| 0.002" ~ 0.20"/rev.
| |
Inch threads:
| 1/4 ~ 30 TPI x 70 kinds
| |
Metric threads:
| 1 ~ 120 mm x 62 kinds
| |
CARRIAGE
| Cross slide travel:
| 25"
|
Compound slide travel:
| 16.50"
| |
TAILSTOCK
| Tailstock taper center:
| M.T. #6
|
Tailstock quill travel:
| 13.38"
| |
POWER
| Main motor:
| 30 HP, 3 Phase
|
Coolant pump:
| 1/8 HP
| |
WEIGHT & DIMENSIONS
| Shipping dimensions (LxWxH):
| 180" x 80" x 80"
|
Gross weight: lbs.
| 19,400 lbs.
|
MODEL
| 45120RF
| |
CAPACITY
| Swing over bed:
| 45"
|
Swing over cross slide:
| 33.46"
| |
Swing over gap:
| 67"
| |
Bed width:
| 26"
| |
Distance between centers:
| 118.11"
| |
HEADSTOCK
| Spindle bore diameter:
| 6.02" (9.06" Opt.)
|
Taper of center in sleeve:
| M.T. #6
| |
Spindle nose:
| A2-11 (Opt. 9.06" or 12.20" bore is A2-20) | |
Number of spindle speeds:
| 12 Steps
| |
Range of spindle speeds (rpm):
| 4 ~ 400 rpm
| |
THREADS & FEEDS
| Range of longitudinal feeds:
| 0.004" ~ 0.40"/rev.
|
Range of cross feeds:
| 0.002" ~ 0.20"/rev.
| |
Inch threads:
| 1/4 ~ 30 TPI x 70 kinds
| |
Metric threads:
| 1 ~ 120 mm x 62 kinds
| |
CARRIAGE
| Cross slide travel:
| 25"
|
Compound slide travel:
| 16.50"
| |
TAILSTOCK
| Tailstock taper center:
| M.T. #6
|
Tailstock quill travel:
| 13.38"
| |
POWER
| Main motor:
| 30 HP, 3 Phase
|
Coolant pump:
| 1/8 HP
| |
WEIGHT & DIMENSIONS
| Shipping dimensions (LxWxH):
| 220" x 80" x 80"
|
Gross weight: lbs.
| 22,050 lbs.
|
MODEL
| 45160RF
| |
CAPACITY
| Swing over bed:
| 45"
|
Swing over cross slide:
| 33.46"
| |
Swing over gap:
| 67"
| |
Bed width:
| 26"
| |
Distance between centers:
| 157.48"
| |
HEADSTOCK
| Spindle bore diameter:
| 6.02" (9.06" Opt.)
|
Taper of center in sleeve:
| M.T. #6
| |
Spindle nose:
| A2-11 (Opt. 9.06" or 12.20" bore is A2-20) | |
Number of spindle speeds:
| 12 Steps
| |
Range of spindle speeds (rpm):
| 4 ~ 400 rpm
| |
THREADS & FEEDS
| Range of longitudinal feeds:
| 0.004" ~ 0.40"/rev.
|
Range of cross feeds:
| 0.002" ~ 0.20"/rev.
| |
Inch threads:
| 1/4 ~ 30 TPI x 70 kinds
| |
Metric threads:
| 1 ~ 120 mm x 62 kinds
| |
CARRIAGE
| Cross slide travel:
| 25"
|
Compound slide travel:
| 16.50"
| |
TAILSTOCK
| Tailstock taper center:
| M.T. #6
|
Tailstock quill travel:
| 13.38"
| |
POWER
| Main motor:
| 30 HP, 3 Phase
|
Coolant pump:
| 1/8 HP
| |
WEIGHT & DIMENSIONS
| Shipping dimensions (LxWxH):
| 260" x 80" x 80"
|
Gross weight: lbs.
| 24,700 lbs.
|
MODEL
| 45200RF
| |
CAPACITY
| Swing over bed:
| 45"
|
Swing over cross slide:
| 33.46"
| |
Swing over gap:
| 67"
| |
Bed width:
| 26"
| |
Distance between centers:
| 196.85"
| |
HEADSTOCK
| Spindle bore diameter:
| 6.02" (9.06" Opt.)
|
Taper of center in sleeve:
| M.T. #6
| |
Spindle nose:
| A2-11 (Opt. 9.06" or 12.20" bore is A2-20)
| |
Number of spindle speeds:
| 12 Steps
| |
Range of spindle speeds (rpm):
| 4 ~ 400 rpm
| |
THREADS & FEEDS
| Range of longitudinal feeds:
| 0.004" ~ 0.40"/rev.
|
Range of cross feeds:
| 0.002" ~ 0.20"/rev.
| |
Inch threads:
| 1/4 ~ 30 TPI x 70 kinds
| |
Metric threads:
| 1 ~ 120 mm x 62 kinds
| |
CARRIAGE
| Cross slide travel:
| 25"
|
Compound slide travel:
| 16.50"
| |
TAILSTOCK
| Tailstock taper center:
| M.T. #6
|
Tailstock quill travel:
| 13.38"
| |
POWER
| Main motor:
| 30 HP, 3 Phase
|
Coolant pump:
| 1/8 HP
| |
WEIGHT & DIMENSIONS
| Shipping dimensions (LxWxH):
| 300" x 80" x 80"
|
Gross weight: lbs.
| 27,350 lbs.
|
MODEL
| 45240RF
| |
CAPACITY
| Swing over bed:
| 45"
|
Swing over cross slide:
| 33.46"
| |
Swing over gap:
| 67"
| |
Bed width:
| 26"
| |
Distance between centers:
| 236.22"
| |
HEADSTOCK
| Spindle bore diameter:
| 6.02" (9.06" Opt.)
|
Taper of center in sleeve:
| M.T. #6
| |
Spindle nose:
| A2-11 (Opt. 9.06" or 12.20" bore is A2-20)
| |
Number of spindle speeds:
| 12 Steps
| |
Range of spindle speeds (rpm):
| 4 ~ 400 rpm
| |
THREADS & FEEDS
| Range of longitudinal feeds:
| 0.004" ~ 0.40"/rev.
|
Range of cross feeds:
| 0.002" ~ 0.20"/rev.
| |
Inch threads:
| 1/4 ~ 30 TPI x 70 kinds
| |
Metric threads:
| 1 ~ 120 mm x 62 kinds
| |
CARRIAGE
| Cross slide travel:
| 25"
|
Compound slide travel:
| 16.50"
| |
TAILSTOCK
| Tailstock taper center:
| M.T. #6
|
Tailstock quill travel:
| 13.38"
| |
POWER
| Main motor:
| 30 HP, 3 Phase
|
Coolant pump:
| 1/8 HP
| |
WEIGHT & DIMENSIONS
| Shipping dimensions (LxWxH):
| 340" x 80" x 80"
|
Gross weight: lbs.
| 30,000 lbs.
|
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
