- Hydraulic clamping system of column, arm, and head controlled by push button switch
- Power elevating motor arm with anti-fall safety device
- Hardened and precision ground arm ways
- The arm is made of high quality cast iron through heat treatment process and precision grinding
- The spindle is counter balanced by means of an adjustable block
- Limit safety device for operation
- Built-in coolant system
- Work light
- 5 HP 2-speed spindle motor
- Plain box table
- Work light
- Coolant system
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

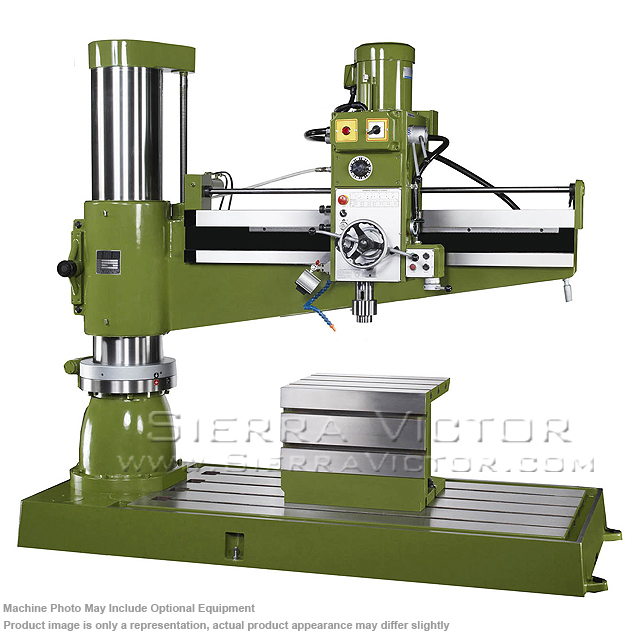

VICTOR Radial Drill 1363H
STANDARD ACCESSORIES:
ITEM: 63" Radial Drill
MANUFACTURER: VICTOR
MODEL: 1363H
PART# 19018
Manufacturer:
Victor
|

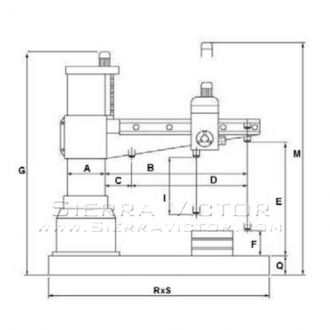

Diameter of column
|
12.60"
|
|
Max distance from column to spindle
|
62.99"
|
|
Min distance from column to spindle
|
13.78"
|
|
Travel of spindle head
|
49.21"
|
|
Max distance from base to spindle end
|
55.91"
|
|
Min distance from base to spindle end
|
18.31"
|
|
Elevating height of arm
|
26.77"
|
|
Effective area of table
|
24.80" x 19.69" x 19.69"
|
|
Dimensions of base
|
93.11" x 38.19" x 7.87"
|
|
Drilling capacity steel
|
1.97"
|
|
Drilling capacity cast iron
|
2.36"
|
|
Tapping steel
|
1.57"
|
|
Tapping cast iron
|
1.97"
|
|
Taper hole sppindle
|
MT #5
|
|
Stroke of spindle
|
10.63"
|
|
R.P.M of spindle (rpm x steps)
|
56 - 1,450 rpm x 12 Steps
|
|
Feed of spindle (rev. x steps)
|
0.0024", 0.0039", 0.0079" x 3 steps
|
|
Main motor
|
5 HP, 3 phase (2-speed motor)
|
|
Elevating motor
|
2 HP
|
|
Hydraulic clamping motor
|
1 HP hydraulic
|
|
Coolant pump
|
1/8 HP
|
|
Max. machine height from floor
|
108.66"
|
|
Shipping Dimensions
|
106" x 45" x 95"
|
|
Net Weight
|
7,275 lbs.
|
|
Shipping Weight
|
8,380 lbs.
|
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE
PART # |
ITEM |
43407 |
440V Conversion |
19014-02 |
Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44") (when ordering with machine) |
19014-03 |
Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24") (when ordering with machine) |
