U.S. INDUSTRIAL 88 Ton x 10 ft Hydraulic Press Brake with Front Operated Power Backgauge and Power Ram Adjust USHB88-10HM

• For industries and jobs that don’t require the detail and precision achieved with CNC controls, our manual control press brakes offer ease of use when you’re looking to keep things simple. The manual press brakes have all the same safety features of the CNC models, manual press brakes are powerful machines that are easy to get started on and great for more straightforward jobs. They include a front-operated power back-gauge and ram adjust with digital readouts and fine adjustment handwheels for both. Our models range from 22 tons to 440 tons.
• Power Front Operated Back Gauge, motorized with fine adjustment handwheel
  Digital Display shows Backguage position in .001”
• Power Ram Depth Control, motorized with fine adjustment handwheel
  Digital Displays shows Ram position in .001”
• Ram Deflection Adjustment
• Massive Torsion Bar for Parallelism
• Three Speed Ram
• Bottom Time Delay
• Inching and Single Cycle
• Setting for ram speed slowdown and return position
• Forged Heavy Duty Cylinder and Body
• Rapid Approach, Bending and Rapid Retreat
• All Steel Construction

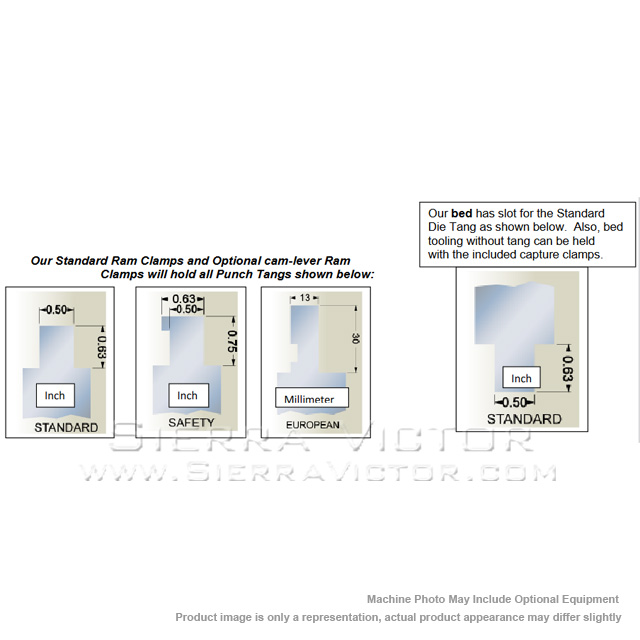

• Bed tools are held with standard slot for ½” x 5/8” tang w/set screws, plus die clamps are included

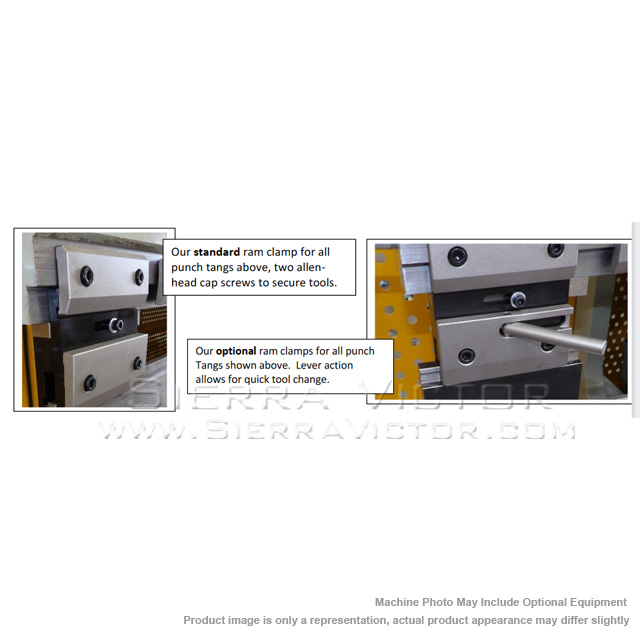

• Ram takes standard American Tang Tooling (1/2” x 5/8”) and American Safety Tang Tooling, and Z1
• Space between Ram Tool Clamps allows for deep box bending
• FRONT OPERATED POWER BACKGAUGE, POWER RAM ADJUST, MANUAL FINE ADJUST HANDWHEELS and DIGITAL POSTION DISPLAYS

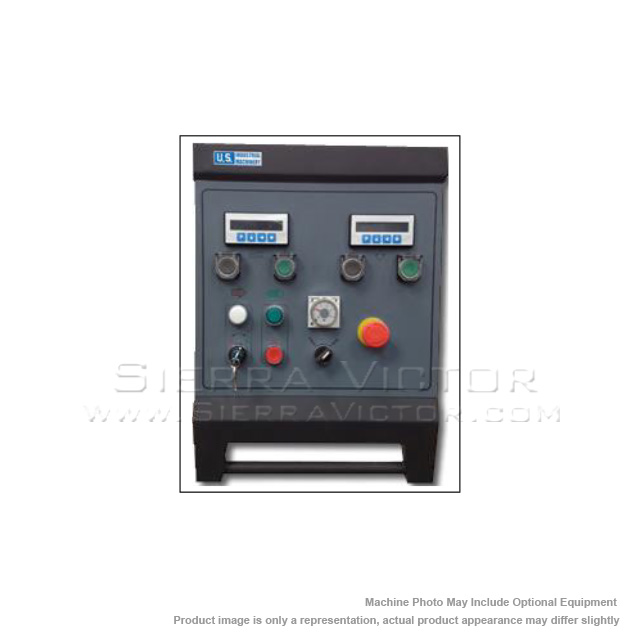

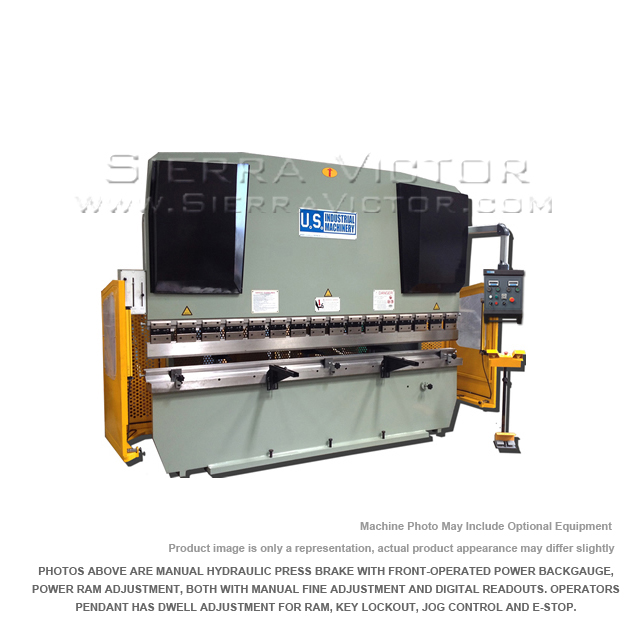

• *Photos shown are manual Hydraulic Press Brake with front-operated power backgauge, power ram adjustment, both with manual fine adjustment and digital readouts. Operator’s pendant has dwell adjustment for ram, key lockout, jog control and E-stop.

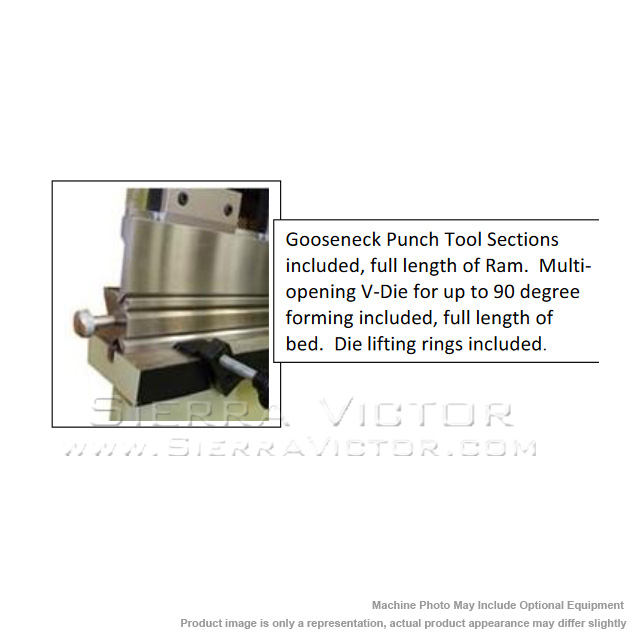

• Free Gooseneck Punch and multi-opening Die for up to 90° forming up to 10-gauge mild steel. *Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they to want use them for a particular purpose. *There is no warranty on this tooling.

EQUIPPED WITH:

• Sick deTec 4 Light Curtain
