- Description
- This is a light duty toolroom Surface Grinder with MANUAL reciprocation of table and crossfeed. Downfeed increment is also manually set by operator.
- PLEASE NOTE: Our machines are shipped without oil. Please refill the oil before operating the machine. Also remember that the machines must be anchored and leveled, or the warranty may be voided. Full 220V or 440V is required. Low voltage may hinder operation of or damage the machine.
- Grinding wheel
- Balancing base and arbor
- Table dresser with diamond nib

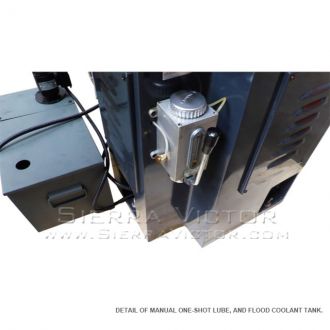

- Manual one-shot lube

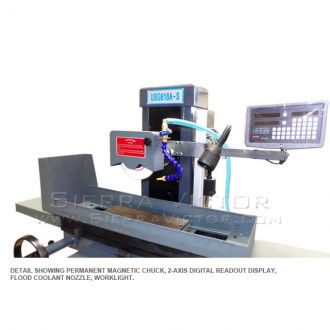

- Permanent Magnetic Chuck: 5.9” x 15.75”
- Wheel flange
- Toolbox and tools
- Coolant system
- Sino Two-axis digital readout
- Manufacturer
- Specifications
- Options/Accessories
- Extra general purpose factory grinding wheel...$62.00
- Extra wheel flange... $120.00
- Custom Freight

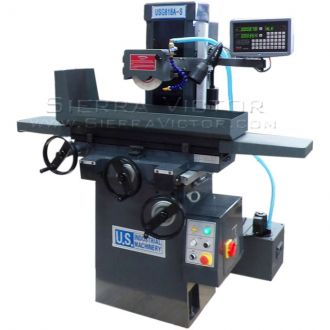

U.S. INDUSTRIAL 6 x 18 inch Toolroom Surface Grinder USG618A-S
STANDARD EQUIPMENT:
ITEM: 6" x 18" Toolroom Surface Grinder
MANUFACTURER: U.S. INDUSTRIAL
MODEL: USG618A-S
Manufacturer:
US Industrial
Grinder/Sander Size:
6" x 18"
Machine Type
Machine Category:
Grinders - Surface
Machine Sub-Category:
Toolroom
Two-Axis Readout Included |
Yes |
Type of Operation |
All Manual |
Slideway Type |
V Rail With Ball Track |
Machine Lube System |
One-Shot Manual |
Function of table reciprocation |
Manual-handwheel only |
Wheelhead movement up/down |
handwheel-manual |

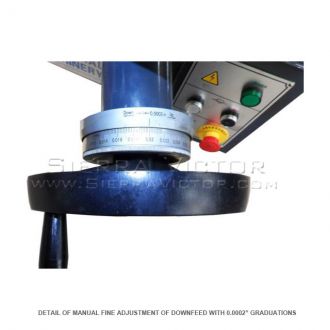

Wheelhead dial graduation |
.0002" |
Perm mag chuck included |
5.9" x 15.75" |
Pole spacing of mag chuck |
.125" |
Table/cross travel max |
18" x 7" |
Cross dial graduation |
.0005" |
Grinding wheel supplied |
7" x 1/2" - 1.25" hole |
Dist under wheel to chuck |
7 -1/2" |
Wheel balancing arbor/base |
Yes - included |
Over wheel diamond dresser |
No - table dresser |
Worklight |
included |
Spindle RPM |
3360 |
Hydraulic System |
N/A |
Coolant Pump - Tank size |
40 watt - 9 gallons |
Full load amps @ 220 Volts |
4 |
Parallelism & Flatness Accuracy |
<0.0008" |
Max. Travel (Longitudinal x Cross) |
18” x 7” |
Max. Distance Spindle Center To Table |
13" |
Max Grinding Wheel (ODxTxID) (Supplied with one 7” x 1/2” grinding wheel) |
8” x 3/4” x 1-1/4” (200mm x 20mm x 31.75mm) |
Grinding Wheel speed |
3360 rpm |
Spindle Motor |
2 HP, 220 or 440 Volts, 3 phase (please specify) |
Dimensions, crated for shipping |
40" W x 45" L x 70" T |
Machine Weight (Gross Shipping) |
1,690 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
