FREE STAND SPECIAL - end 2/28/2025
- Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
- Residential / Liftgate Charge: $150
- Description
- Available from a distributor near you. Normally in stock in one of our warehouses.
Durable and dependable! The TK box and pan brakes give you all the features you would expect from quality machines. - Of all steel welded construction, with adjustable truss bars and bronze bushings, these brakes are built to last.
- The 1648 comes with removable apron angle and apron insert, permitting .25" (6.35mm) reverse bends in lighter materials.
- The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends.
- Manufacturer
- Specifications
- Options/Accessories
- Optional Stand .............. $195.00
- Custom Freight
- Video

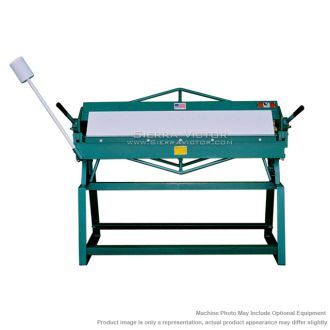

TIN KNOCKER 4 ft x 16 gauge Box and Pan Brake TK 1648
ITEM: 4ft x 16 ga. Box and Pan Brake
MANUFACTURER: TIN KNOCKER
MODEL: TK 1648
Manufacturer:
Tin Knocker
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
Manual
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
Capacity: |
16 ga. |
Bend Length: |
48 in. |
Max Beam Lift: |
1.25 in. |
Max. Box Depth: |
4 in. |
Min. Reverse Bend: |
.25 in. |
Min. Flange: |
1 in. |
Finger Width: |
2, 3, 4 in. |
Dimensions: L x W x H |
64 x 28 x 32 in. |
Weight: |
493 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
