- Stop cross braking! Save time, save money
- Adjustable beader.

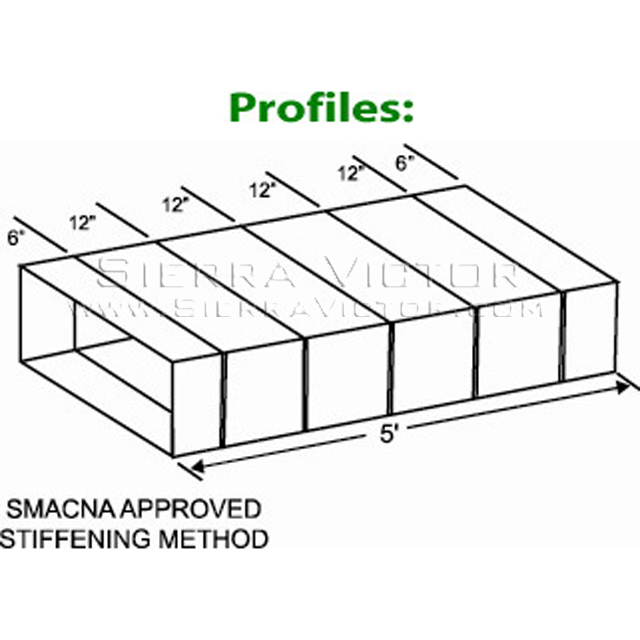

- Produce SMACNA approved beads in a fraction of the time it takes to cross brake.
- A one man operation
- Heavy duty beader comes with five (5) sets of bead tooling that can be located anywhere over the 60" working length.
- Tooling, if broken or damaged, is replaceable without the requirement of replacing an entire cross shaft.
- Beads are adjustable in depth to 3/16" deep.
- Powered exit support roll to ensure no material hang-up.
- Manufacturer
- Specifications
- Custom Freight
- Video

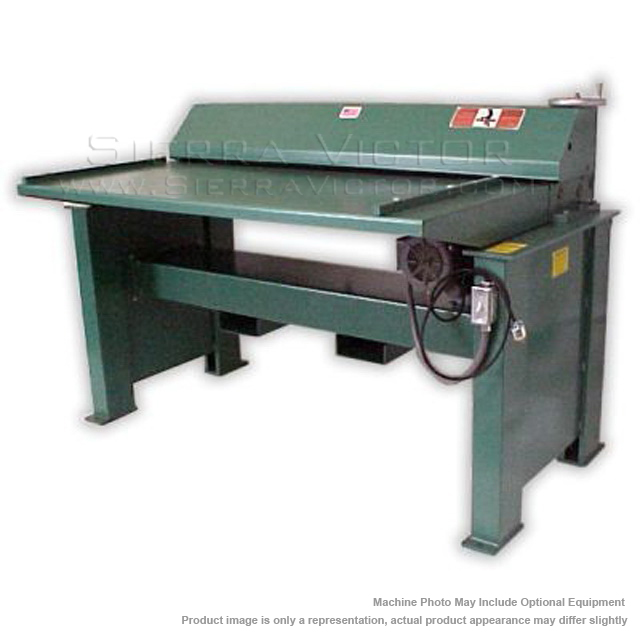

TIN KNOCKER Duct Beader TK 1660
ITEM: 16 ga. x 60" Duct Beader
MANUFACTURER: TIN KNOCKER
MODEL: TK 1660
Manufacturer:
Tin Knocker
Machine Type
Machine Category:
Beader/Crimper
Metalworking
Material Length:
5 ft (60 in.+)
Mild Steel Capacity:
16 ga
|
Capacity:
|
16 Ga. Mild Steel (Galvanized) x 60" (1.5mm x 152.4cm)
|
|
Motor:
|
1 HP,115V, Single Phase, 60 Hz Standard (230/1/50 available)
|
|
Dimensions:
|
Approx. 80" x 43" x 34"
Passline Height (203cm x 109cm x 86cm) |
|
Weight:
|
1,750 lbs (794kg)
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
