- Description
- MADE IN USA
- TENNSMITH'S MSE Series mechanical shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.
- The MSE Series come standard with four-edge, high carbon, high chrome blades, a self-leveling hold down bar with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, dual inch/metric inlaid bed scales and non-metallic gibs. The MSE Series also incorporates the unique front operated 2X-F back gauge system. This system allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only tow rotations of the handle. Capacities of the shears are 16-gauge mild steel, 22-gauge stainless with 73 or 121 cutting lengths and speeds of 40 strokes per minute.
- The MSE616-R / MSE1016-R shear is standard in a "Performance Package-R" configuration. The Performance Package includes: a five foot squaring arm, a pair of front support arms, rear material return air operated sheet support system, and part counter.
- The MSE616-F / MSE1016-F shear is standard in a "Performance Package-F" configuration. The Performance Package includes: a four foot squaring arm, a pair of front support arms, front material return air operated sheet support system, and part counter.
- The MSE1016-FC includes all the features of the MSE1016-F, but also includes a front return material cart as standard. The material cart allows for sheared materials to be moved from the shear to other areas in the shop without restacking. Numerous options are available for the MSE Series. Please contact Sierra Victor Industries for further details.
- Note: Performance Packages are Preferred Options
- Four-edge, high carbon, high chrome blades
- Self-leveling hold down bar with neoprene insert
- Single, continuous and jog stroke cycles
- Motor reverse switch
- Precision-machined table
- Dual inch/metric inlaid bed scales
- Non-metallic gibs.
- Manufacturer
- Specifications
- Options/Accessories
- Single Phase Electrics: ADD $1,995.00
- Wired for CSA Canadian Electrical Standard: ADD $415.00
- 82610: MSE1016 High Carbon High Chrome 4 Edge per set: $1,600.00
- 82515: Additional Flip-up Stops for Squaring Arm (each): $230.00
- 82520: Front Support Arms Pair: $310.00
- 82580: Stroke Counter (Electro-Mechanical): $340.00
- 82525: Protractor Attachment: $685.00
- 83895: Digital Readout for 2x-F Back-gauge System: $1,150.00
- 82505: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,180.00
- 82510: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,655.00
- The MSE Performance Package Includes:
- Note: Performance Packages are Preferred Options
- Air-operated sheet support system, F or R:
"F" is a Front Return Material System via material tray located under
the shear table.
"R" is a Rear Return Material System
"FC" Front Return Material System and includes a front return material cart as standard. The material cart allows for sheared materials to be moved from the shear to other areas in the shop without restacking. - Five-foot squaring arm
- Pair of Front support arms
- Custom Freight

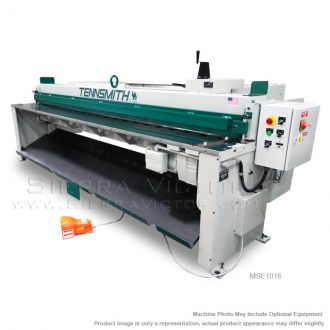

TENNSMITH 10' (121") x 16 ga Mechanical Shear with Performance Package-R MSE1016-R
STANDARD EQUIPMENT:
ITEM: 10' (121") x 16 ga Mechanical Shear with Performance Package-R
MANUFACTURER: TENNSMITH
MODEL: MSE1016-R
Manufacturer:
Tennsmith
Machine Type
Machine Category:
Shears
Machine Sub-Category:
Mechanical
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
16 ga
Stainless Steel Capacity:
20 ga
MODEL
|
MSE1016-R
|
Maximum shearing capacity, Mild Steel
|
16 gauge/1.6mm
|
Maximum shearing capacity, Stainless Steel
|
20 gauge/1.0mm
|
Maximum cutting length
|
121" / 3,073mm
|
Back gauge range
|
30" / 762mm
|
Strokes per minute, full length
|
40
|
Motor - 230/460V, 3-Phase, 60Hz
|
3 HP
|
Number of hold downs
|
Solid BAR
|
Floor space, gauges in position
|
140" x 69" x 50"
|
Shipping Weight:
|
4,150 lbs. / 1,886kg
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
PART #
|
ITEM
|
MSE1016-R
|
10' x 16 ga Mechanical Shear with Performance Package R
|
MSE1016-F
|
10' x 16 ga Mechanical Shear with Performance Package F
|
MSE1016-FC
|
10' x 16 ga Mechanical Shear with Performance Package FC
|
