- Description
- MADE IN USA
- TENNSMITH'S power shears combine all of the features of our foot shears with the advantage and convenience of air or hydraulic operation. TENNSMITH power shears are a productive addition to any shop. The air shears utilize heavy-duty, tie rod-type pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials.
- A foot-operated air valve control, pressure regulator, air gauge, oiler/condenser cups and neoprene, padded holddown feet are standard features. We recommend a maximum air supply of 75 psi for operating these shears at rated capacity. Where air supply pressures exceed 75 psi, an in-line regulator is helpful to provide pressure control.

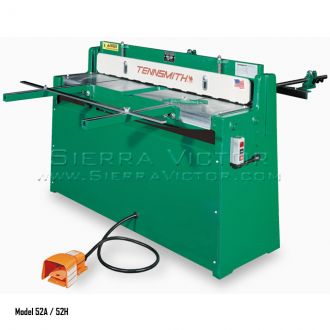

- The Model 52H cycle at 45 strokes a minute, thanks to its first class hydraulic system. The hydraulic unit is of a low maintenance design featuring a solenoid actuated valve, 3-HP electric motor, self-contained pump in tank with pressure gauge, check valve and industrial quality cylinders. The motor is protected by a magnetic starter.
- Other electrical safety features include a low voltage on/off switch; low voltage, shrouded, electric foot switch; step-down transformer with low voltage circuit fuse; fully enclosed electrical box; and insulated reinforced conduit for all wiring. Models 36A and 52A are ideal ways to enhance shearing productivity with minimal investment.
- High Carbon/High-Chromium (HCHC) Blades
- Back gauge
- Front extension arms with stop
- Bevel gauge
- Graduated side gauges
- Foot control
- Neoprene padded hold down feet
- Manufacturer
- Specifications
- Options/Accessories
- 36" HCHC Blades, per set: $620
- 4' Squaring Arm: $630
- Custom Freight
TENNSMITH Air Shear MODEL 36A
ITEM: 37" x 16 ga Air Shear
MANUFACTURER: TENNSMITH
MODEL: 36A
STANDARD EQUIPMENT:
Manufacturer:
Tennsmith
MODEL |
36A |
Operation |
Air |
Maximum shearing capacity, Mild Steel |
16 gauge/1.6mm |
Maximum shearing capacity, Stainless Steel |
20 gauge/1.0mm |
Maximum cutting length |
37" / 940mm |
Back gauge range |
30" / 762mm |
Front gauge range |
37" / 940mm |
Floor space, gauges in position |
45" x 80" |
Dimensions, Less gauges, LxWxH |
46-1/4" x 24" x 42" |
Strokes per minute, full length |
40 |
Maximum Operating Pressure |
75 psi |
Air Consumption per Stroke |
1.1 cu. ft. |
Shipping Weight: |
800 lbs. / 363 kg |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR - Limited
