- LM Series mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.

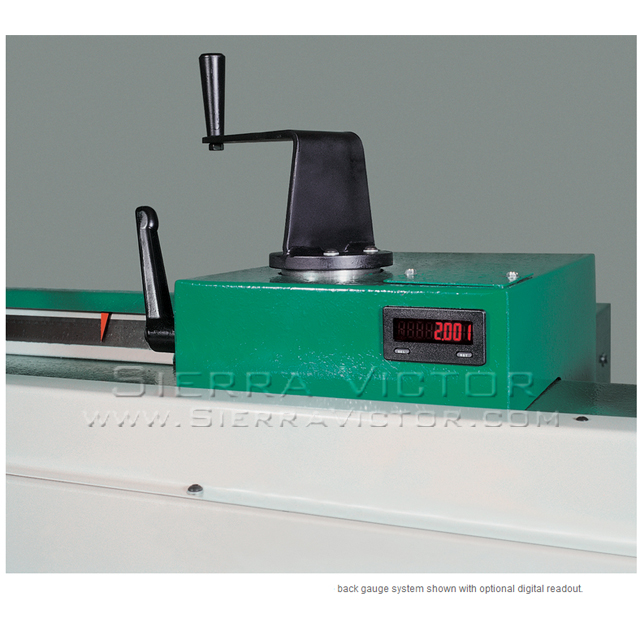

- The LM1014 incorporates the unique 2x back gauge system. This allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. The LM 2x back-gauge can be ordered with an optional digital readout. The 2x digital readout increments are 0.001”

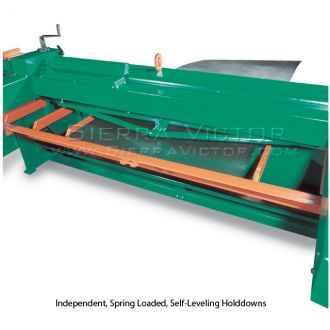

- The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades , independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
- The LM1014 capacities are 14-gauge mild steel, 18-gauge stainless up to 121 inches in cutting length. To enhance productivity, optional equipment available for the machine includes: five or ten-foot squaring arm, front support arms, light beam and protractor attachments.

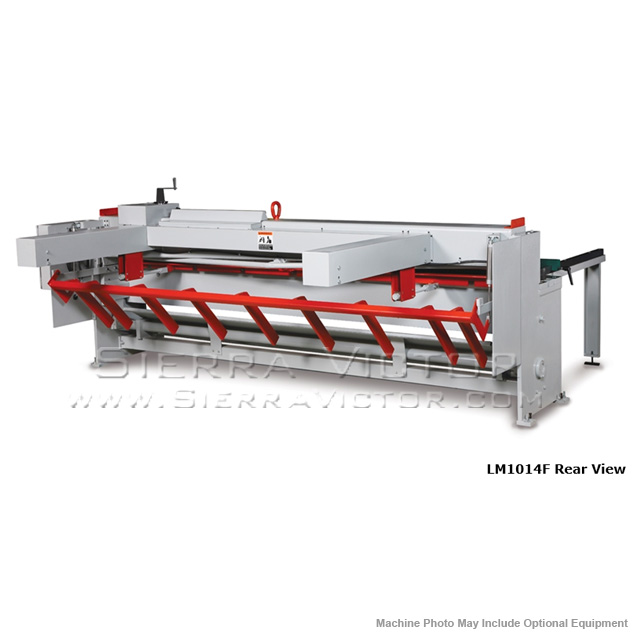

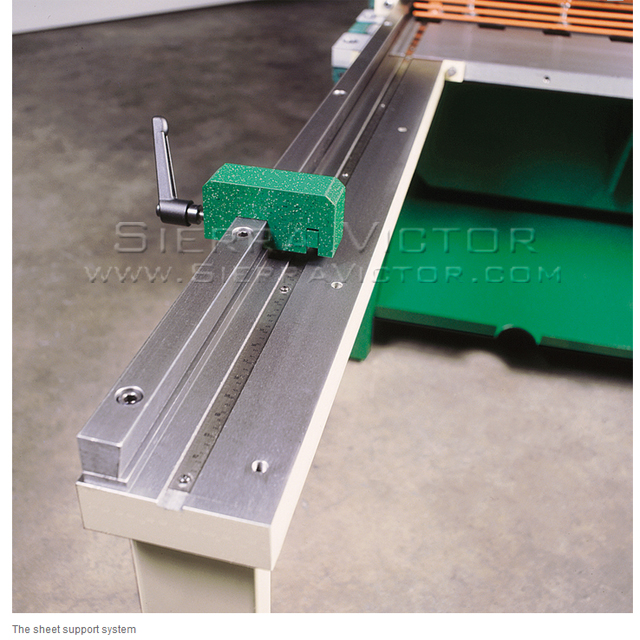

- LM1014 can be order with an optional air operated sheet support system. This system is available in two styles: System-R drops the support material to the rear of the machine; System-F returns the supported material to the front of the machine via a front return chute.
- The LM series shears are available in a reduced price “Performance Package” configuration. The Performance Package includes: a Five Foot Squaring Arm, a pair of Front Support Arms, and Air Operated Sheet Support System. Performance “R” system is for rear return, Performance “F” system is for front return. A moveable Material Cart is available for both Front and Rear Return machines. Please call for details.
- Please contact Sierra Victor Industries 386-304-3720 for a details and a complete listing of optional equipment
- The LM Series Performance Packages include: Five Foot Squaring Arm, Two Front Support Arms and Air Operated Sheet Support System. “R” Rear Drop Support “F” Front Return Support System “C” with Material Cart
- Note: Performance Packages are Preferred Options
- Manufacturer
- Specifications
- Options/Accessories
- Wired for CSA Canadian Electrical Standard: $415.00

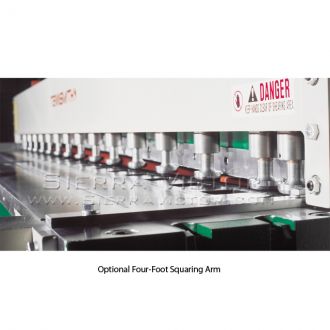

- 83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,180.00
- 83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,655.00
- 83815: Additional Flip-up Stops for Squaring Arm (each): $230.00
- 83820: Front Support Arms Pair: $310.00
- 83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,125.00
- 83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $215.00
- 83835: Power Back-gauge 30-Inch Travel: $6,570.00
- 83840: Protractor Attachment: $685.00
- 83885: Work Shadow Light LM Series: $970.00
- 83895: Digital Readout for 2x Back-gauge System: $1,150.00
- 83890: Stroke Counter (Electro-Mechanical): $340.00
- 83900: LM1014 High Carbon High Chrome 4 Edge per set: $2,415.00
- Increased Cutting Speeds (Please consult factory)
- Note: Performance Packages are Preferred Options
- Custom Freight

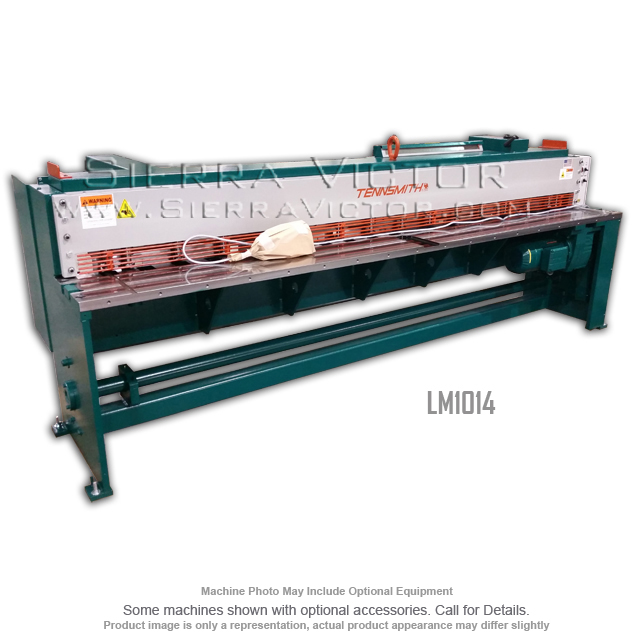

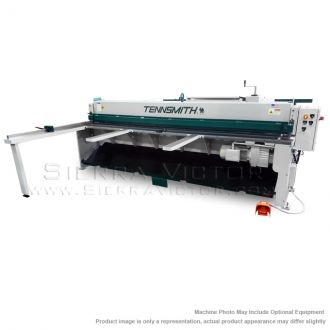

TENNSMITH 10' (121") x 14 ga Low-Profile Mechanical Shear LM1014
ITEM: 121" x 14 ga Low-Profile Mechanical Shear
MANUFACTURER: TENNSMITH
MODEL: LM SERIES
PART# LM1014
Manufacturer:
Tennsmith
Machine Type
Machine Category:
Shears
Machine Sub-Category:
Mechanical
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
Stainless Steel Capacity:
18 ga
|
MODEL
|
LM1014
|
|
Maximum shearing capacity, Mild Steel
|
14 gauge
|
|
Maximum shearing capacity, Stainless Steel
|
18 gauge
|
|
Maximum cutting length
|
121"
|
|
Back gauge range
|
30" / 762mm
|
|
Strokes per minute, full length
|
35
|
|
Number of hold down feet
|
16
|
|
Motor - 230 or 460V, 3-Phase, 60Hz (specify)
|
5 HP
|
|
Floor Space, Gauges in Position
|
139" x 60" x 55-1/2"
|
Overall Dimensions, Less Gauges, LxWxH |
139" x 27" x 55-1/2" |
|
Shipping Weight:
|
6,200 lbs.
|
*Mild Steel Rated Materials at 80,000 Tensile / 44,000 Yield
** Stainless Steel Rated Materials at 90,000 Tensile / 55,000 Yield
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
