- Description
- Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A.

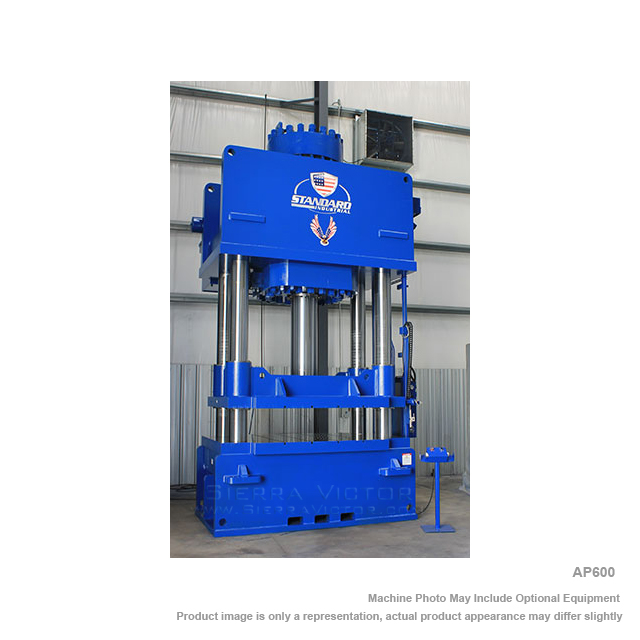

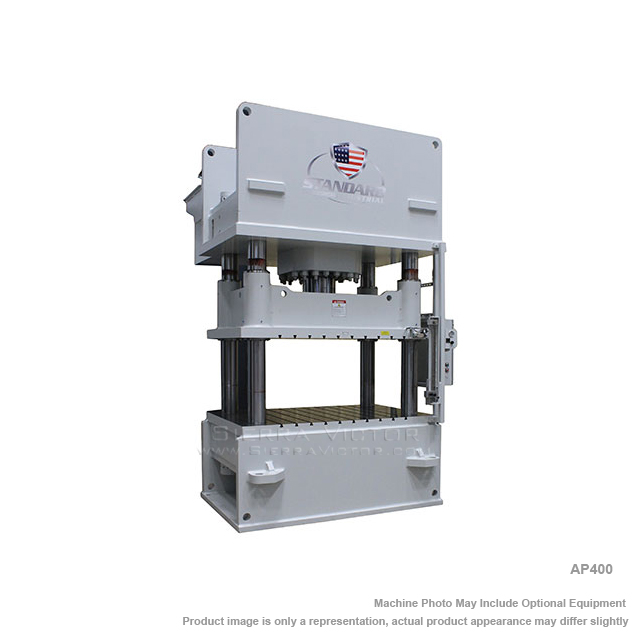

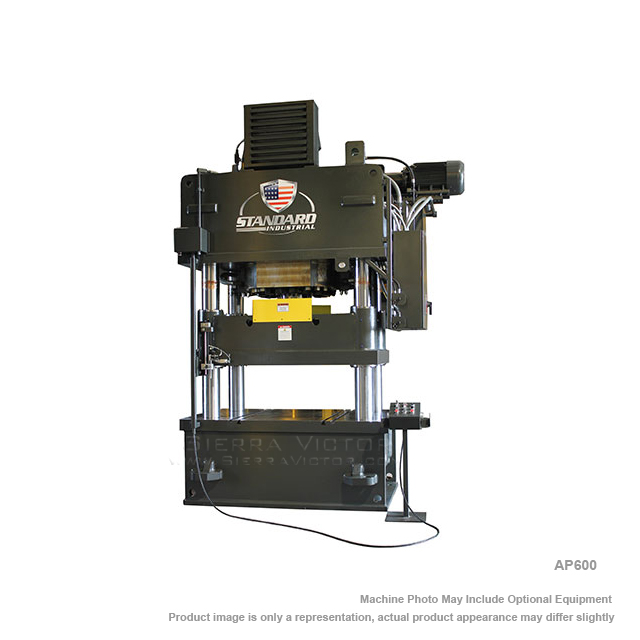

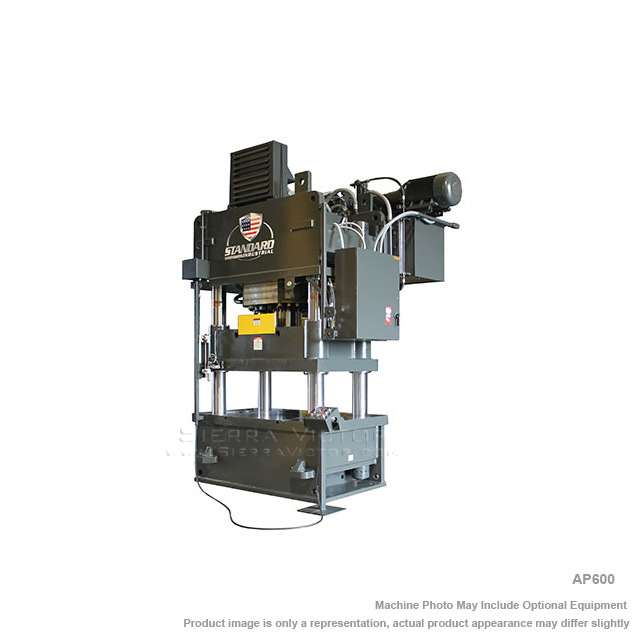

- The model AP Four column press is a vertical, down acting direct hydraulic press with a guided platen powered by an extremely heavy duty machine tool quality hydraulic cylinder. The precision machined platen is fitted with bearings made of A660 bronze and rides on 4 columns of turned, ground & polished chrome steel. The massive structure is fabricated from heavy sections of prime steel plate. This press is designed for heavy production work for all sizes of facilities. The self-contained hydraulic system uses a hi-low circuit using directional valves for speed control. As with all Standard Industrial machines, the model AP comes with our unmatched 5 year warranty, plus T-slots in the bed and ram, a decompression system, overload protection and many more impressive standard features.
- PRESS APPLICATION: As with all manufacturers, each style of Standard Industrial press has a particular strength or attribute that makes it more acceptable for a particular application. To a certain degree all of our styles of presses can perform similar applications, but it is very important to identify what your particular application is before you buy. For example, the model AM straight side presses are typically used by customers who require a varying amount of tonnage across the bed of the press. Progressive die set ups are perfect for straight side presses due to the single cylinder hydra-mechanical drive system that generates full tonnage all the way across the bed. In one die you may have a light forming operation, then next die may require heavy punching and the next may have a guillotine shearing action. With a Standard Industrial straight side press it doesn't matter where the tonnage occurs along the bed as long as the overall tonnage requirement does not exceed the machines overall tonnage. The AM series is also used in virtually every other pressing type application as well.
- On the contrary a model AP four column press is designed for center load applications and/or applications that require little variation of tonnage across the bed and ram. Four columns are especially good for long stroke and deep draw applications where the ram must travel a considerable distance to complete an operation and then retract out of the way.
- The model DCSS style is a more compact version of the straight side press providing a staggering amount of rigidity due to the enclosed end-frames and compact bed sizes. Even with enclosed end frames the DCSS can allow material flow through with windows in the end frames. The DCSS is excellent for all types of press applications including center and off-center loading.
- The model DC C-frame style press is a gap frame press which lends itself to a wide variety of forming applications as well. It is particularly good for applications where the workpiece is larger than the bed and/or the material needs to be fed from the left or right. All four styles of machines and their strengths are explained in more detail in this literature.
- Model AP1000 (1,000 ton) shown with optional rubber pad enclosure mounted under ram. All other features shown are standard equipment
- 100% Made In the United States of America
- Manufacturer
- Product Features
- Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A.
- The model AP Four column press is a vertical, down acting direct hydraulic press with a guided platen powered by an extremely heavy duty machine tool quality hydraulic cylinder. The precision machined platen is fitted with bearings made of A660 bronze and rides on 4 columns of turned, ground & polished chrome steel. The massive structure is fabricated from heavy sections of prime steel plate. This press is designed for heavy production work for all sizes of facilities. The self-contained hydraulic system uses a hi-low circuit using directional valves for speed control. As with all Standard Industrial machines, the model AP comes with our unmatched 5 year warranty, plus T-slots in the bed and ram, a decompression system, overload protection and many more impressive standard features.
- PRESS APPLICATION: As with all manufacturers, each style of Standard Industrial press has a particular strength or attribute that makes it more acceptable for a particular application. To a certain degree all of our styles of presses can perform similar applications, but it is very important to identify what your particular application is before you buy. For example, the model AM straight side presses are typically used by customers who require a varying amount of tonnage across the bed of the press. Progressive die set ups are perfect for straight side presses due to the single cylinder hydra-mechanical drive system that generates full tonnage all the way across the bed. In one die you may have a light forming operation, then next die may require heavy punching and the next may have a guillotine shearing action. With a Standard Industrial straight side press it doesn't matter where the tonnage occurs along the bed as long as the overall tonnage requirement does not exceed the machines overall tonnage. The AM series is also used in virtually every other pressing type application as well.
- On the contrary a model AP four column press is designed for center load applications and/or applications that require little variation of tonnage across the bed and ram. Four columns are especially good for long stroke and deep draw applications where the ram must travel a considerable distance to complete an operation and then retract out of the way.
- The model DCSS style is a more compact version of the straight side press providing a staggering amount of rigidity due to the enclosed end-frames and compact bed sizes. Even with enclosed end frames the DCSS can allow material flow through with windows in the end frames. The DCSS is excellent for all types of press applications including center and off-center loading.
- The model DC C-frame style press is a gap frame press which lends itself to a wide variety of forming applications as well. It is particularly good for applications where the workpiece is larger than the bed and/or the material needs to be fed from the left or right. All four styles of machines and their strengths are explained in more detail in this literature.
- Model AP1000 (1,000 ton) shown with optional rubber pad enclosure mounted under ram. All other features shown are standard equipment
- 100% Made In the United States of America
- All Components Readily Available From Your Local Suppliers
- Hydraulic Oil cooler (fan radiator type)
- Two hand controls for operator safety
- ANSI B11.2 standards
- Counterbalance valve & Decompression system for punching/bottoming
- Dependable Support from the people who make the machine
- Typical 20-30 Year Lifetime
- Hydraulic Tonnage Control
- Typical 20-30 Year Lifetime
- Full Tonnage throughout Stroke
- (2) 5/8" t-slots in the bed and (2) 5/8" t-slots in the ram
- 5 Year Parts Warranty
- 5 Year Limited Onsite Labor Warranty
- Lifetime telephone support at no charge
- Specifically designed for center load and even tonnage applications
- Hydraulic system with continuous filtration
- Massive welded frame
- Large chromed columns
- T-slots in bed and ram
- Permanently mounted electric heaters for column maintenance
- Oil Cooler
- Adjustable shaft packing
- Heavy guide bearings
- Adjustable tonnage control
- Adjustable ram travel
- Portable 2 hand control station
- The dimensions listed are from our catalog but we are more than happy to quote custom bed and ram sizes per your specifications
- APPLICATIONS:
- Embossing
- Drawing
- Stamping
- Die Try-out
- Sizing
- Rubber Pad Forming
- Forming
- Swedging
- Trimming
- Punching (Due to the overall weight of the ram and the drive system, when punching or blanking with a four column press, you should limit your overall tonnage to 50% unless stroke dampers are used.)
- Blanking (Due to the overall weight of the ram and the drive system, when punching or blanking with a four column press, you should limit your overall tonnage to 50% unless stroke dampers are used.)
- FOR PRESS APPLICATION AND OPERATION: SEE ATTACHMENTS TAB
- Options/Accessories

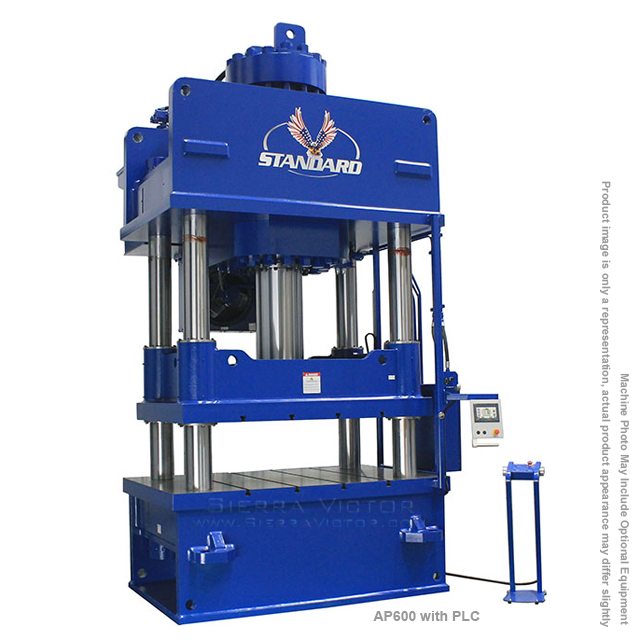

- Programmable logic controller (PLC) to control the base functions of the press including multiple job storage, stroke length, open height point, tonnage, decompression, ram delay/dwell at bottom of stroke (not under tonnage A mechanical standard to control limits of the press and is also included even with PLC.
- Light curtain safety barrier system provides infra-red beam during operation and shuts machi Base op front of press only-other optional curtains can be quoted per customer specification.
- Interlocking side barriers as physical barriers-can be used in conjunction with light curtains or alone
- Special single color paint
- Dwell under tonnage sustains desired tonnage for a set amount of time - typically used for manufacturers of plastics or fiberglass products
- Custom or special controls per user specifications
- Remote auto cycle for automated operations
- Special machining of bed and/or ram
- Removable bolster plates for bed
- Die cushions for drawing and/or part ejection
- Ejector cylinders for drops or parts
- Scrap chutes or knockouts to remove drops or parts
- Stroke dampers for punching or blanking operations allow more overall dimensions to increase
- Quick change tooling components such as air actuated die lifters and/or power die removal systems-increase productivity by decreasing die change and set-up time
- High speed or special hydraulic systems
- T-slots in bed and ram (2 are standard in bed and ram)
- Automatic lubrication systems to decrease maintenance operations
- Safety gear lock systems with interlocking posts provide even more operator safety (Model AP only)
- Additional open height (NOTE: Does not automatically increase stroke length)
- Additional stroke for Model AP Four column press
(NOTE: Does not automatically increase open height) - Low speed retract allows the ram to return slower than normal
- Pressure ram reversal allows the ram to return when a particular pressure is achieved.
- Ram delay at bottom of stroke (not under tonnage)
- Coil line processing and material feeding equipment
- Custom and standard die sets
- The model AM, DC and DCSS can have longer open heights but are limited to a maximum of 12" stroke as an option
- The model AM is available in longer lengths but not shorter lengths
- W-Technologies stroke dampers allow more punching and blanking capacity without harming hydraulic system
- Custom Freight
STANDARD INDUSTRIAL 100 - 1000 Ton Four Column Presses
ITEM: 100 - 1000 Ton Four Column Presses
MANUFACTURER: STANDARD INDUSTRIAL
MODEL: AP SERIES
MODEL: AP SERIES
MODEL# AP100 / AP200 / AP300 / AP400 / AP500 / AP600 / AP1000
Manufacturer:
Standard Industrial
Machine Type
Machine Category:
Presses
Machine Sub-Category:
Four Column
Metalworking
Pressure:
100+ Tons
