- Description

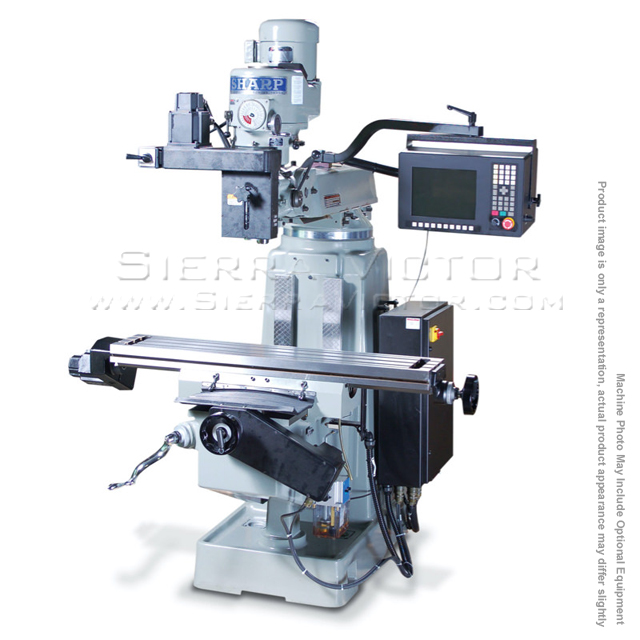

- 3 axis (X,Y, quill ) CNC Knee Mill with ACU-RITE MILLPWR control
- Model TMV/MP-3: 10” x 50” table, 15.5” x 31” travel, 3 HP, R-8, vari speed
- SHARP milling machines are constructed from certified MEEHANITE castings that provides high rigidity and excellent vibration dampening characteristics. The models are equipped with hard chromed dovetail ways or hardened and ground box ways for superior wear resistance . For almost 30 years, the SHARP mills have been one of the most reliable mills in the industry.
- A PC-based controlled 3 axis (table, saddle and quill) CNC vertical knee mill. The MILPWR System by Acu-Rite has a highly user-friendly conversational programming format that is powerful enough to handle any job and easy enough for anyone to operate. The system can be used as a full function digital readout, as a programmable CNC control, or both.
- MILLPWR 3 axis (table, saddle, quill) CNC system by Acu-Rite.
- Digital Servo drive systems for X ,Y and Z axes travel.
- Able to perform 3-D countour work.
- Precision-ground ballscrews with preloaded ball nut assemblies.
- 3 axis (table, saddle, quill) digital readout system.
- Automatic lubrication system.
- Safety hand wheels.

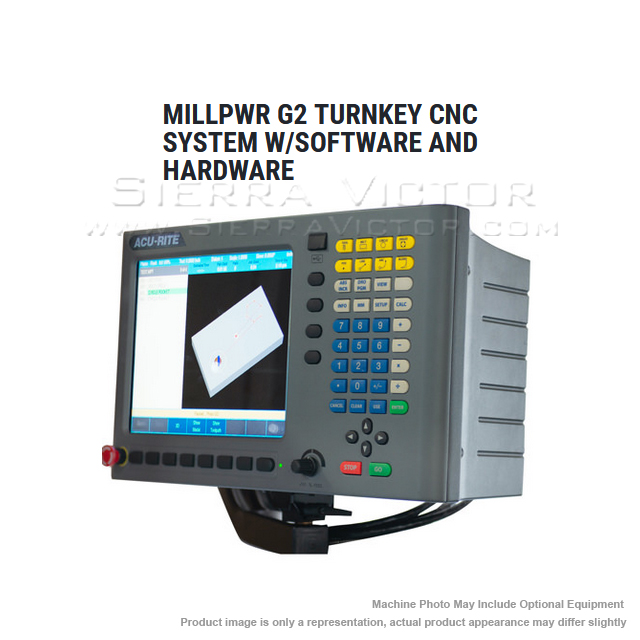

- MILLPWR CNC SYSTEM FEATURES HARDWARE:
- 10” flat-panel LCD display operator console
- 3-D, color keypad
- RS-232 port
- 3-1/2" floppy disk drive
- Emergency table stop button
- Remote stop-go switch
- Manufacturer
- Product Features
- 3 axis (X,Y, quill ) CNC Knee Mill with ACU-RITE MILLPWR control
- Model TMV/MP-3: 10” x 50” table, 15.5” x 31” travel, 3 HP, R-8, vari speed
- SHARP milling machines are constructed from certified MEEHANITE castings that provides high rigidity and excellent vibration dampening characteristics. The models are equipped with hard chromed dovetail ways or hardened and ground box ways for superior wear resistance . For almost 30 years, the SHARP mills have been one of the most reliable mills in the industry.
- A PC-based controlled 3 axis (table, saddle and quill) CNC vertical knee mill. The MILPWR System by Acu-Rite has a highly user-friendly conversational programming format that is powerful enough to handle any job and easy enough for anyone to operate. The system can be used as a full function digital readout, as a programmable CNC control, or both.
- MILLPWR 3 axis (table, saddle, quill) CNC system by Acu-Rite.
- Digital Servo drive systems for X ,Y and Z axes travel.
- Able to perform 3-D countour work.
- Precision-ground ballscrews with preloaded ball nut assemblies.
- 3 axis (table, saddle, quill) digital readout system.
- Automatic lubrication system.
- Safety hand wheels.
- MILLPWR CNC SYSTEM FEATURES HARDWARE:
- 10” flat-panel LCD display operator console
- 3-D, color keypad
- RS-232 port
- 3-1/2" floppy disk drive
- Emergency table stop button
- Remote stop-go switch
- SOFTWARE:
- User friendly conversational programming format. No prior programming
experience is necessary. - Standardized menus make it easy to program common features like lines, arcs, pockets, bolthole patterns, islands, spirals and ellipses. To add a feature to the program, simply press a function key and then follow the prompts.
- Perform complex calculations to solve geometry and trigonometry problems.
- Edit individual steps or merge whole or partial programs already created by using functions such as: Mirror/repeat/rotate, Explode, Reverse step, Reverse path, Change steps, Delete steps, Copy/move steps.
- Import geometry directly from a CAD file using the MILLPWR’s DXF file input-for faster programming and fewer errors.
- Preview each step with immediate-part-view graphics – the console automatically shows a graphic representation of each step once it is created in a program.
- Program to mill at or to a specified depth automatically.
- Able to import and run G-code files from CAD/CAM programs to machine full 3-D contoured parts.
- Automatically control spindle’s speed and/or direction of the machine

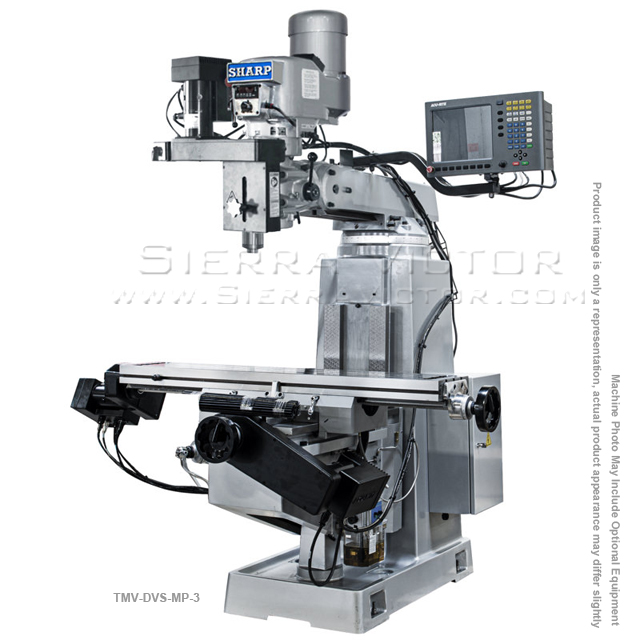

(machine has to be equipped with the DVS head-an optional item, plus the programmable speed option). - DVS head:
- High reliability with fewer moving parts than regular vari speed head
- Dynamic brake
- Low voltage control
- Large Digital rpm display
- Fully enclosed display unit
- Dependable Inverter Drive System
- Machine can run on single phase or 3 phase electricity
- Safety device prevents machine from self starting after power failure or after emergency stop being pushed
- Hardened and ground box ways
- Front and rear way covers
- Automatic lube system
- Tool Kit
- Specifications
- Options/Accessories
- DVS Head wired 220V
- 440V Transformer - 3HP
- 6” “Kurt” Vise with Swivel Base
- R-8 collet set.
- Clamping kit.
- Right angle milling attachment.
- Riser block. Power drawbar.
- Coolant System with Chip Pan At Base
- Power Draw Bar
- Halogen Work light
- Custom Freight
SHARP CNC Knee Mill with 3-Axis ACU-RITE MILLPWR TMV/MP-3
ITEM: 10" x 50" CNC Knee Mill with 3-Axis ACU-RITE MILLPWR
MANUFACTURER: SHARP
MODEL: TMV/MP-3
Manufacturer:
Sharp
STANDARD EQUIPMENT:
TABLE
|
Working surface
|
10” x 50"
|
T-slot number, size
|
3, 5/8"
|
|
CAPACITY
|
Table travel
|
15.5” x 31”
|
Ram travel
|
18.5"
|
|
Quill travel (Z-axis)
|
5"
|
|
Knee travel
|
15.3"
|
|
Spindle to column
|
9.8” - 28.3"
|
|
Spindle to nose to table
|
1-1/2” - 17”
|
|
SPINDLE
|
Motor
|
3 HP
|
Wiring voltage
|
220/440v, 3 phase, 60 Hz
|
|
Taper
|
R-8
|
|
Speed (vari-speed)
|
60-4,500 RPM
|
|
Quill feed (IPR)
|
0.0015”, 0.003”, 0.005"
|
|
Head swivel
|
360°
|
|
Head tilt; right-to-left (each way)
|
45°
|
|
Head tilt up-and-down
(each way) |
45°
|
|
DIMENSIONS & WEIGHT
|
Floor area (w x d)
|
101" x 74" x 87"
|
Approx. Net weight
|
3,650 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
