- Description
- This is a simple, easy to use 2 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming . The CNC system is built on the top quality SHARP vertical mills Model TMV and TMV-1 frame.
- (TMV-MP2) 10 x 54” table, 15.5 x 31x 5” travel, vari speed 3 HP, R-8 spindle
- (TMV-DVS-MP2) 10 x 54” table, 15.5 x 31x 5” travel, Digital Vari Speed 3 HP, R-8 spindle
- (TMV-1-MP2) 10 x 54” table, 15.5 x 31 x 5” travel, vari speed, 5 HP, #40 spindle
- AcuRite Millpwr G2 CNC 2 axes control (Longitudinal, Cross)
- G code and conversational type programming
- 2 axes precision ball screws
- Safety handwheels
- Auto lube system
- 3 axes Digital Readout System (table, saddle, quill)

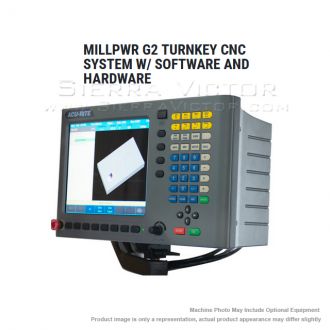

- Millpwr G2 Turnkey CNC System w/ Software and Hardware:
- Dimension Functions:
- ABS/INC, POLAR/CARTESIAN, INCH/METRIC.
- Programming:
- PROGRAM IN/OUT, POSITION/DRILL, MILL LINES, MILL ARC, BLEND (CORNER RADIUS)
- HOLES (BOLT CIRCLE, RECTANGULAR ARRAY, RECTANGULAR FRAM, LINE),
- CIRCLE (POCKET, FRAM, RING), RECTANGLE (POCKET, FRAME, SLOT, FACING) 9,999 STEPS OF PROGRAM SIZE
- Special Features:
- CUSTOM POCKETS, REPEAT, ROTATE, MIRROR IMAGE.
- Run Options:
- SINGLE STEP, DRY RUN, GRAPHICS ONLY, MANUAL POSITIONING.
- Calculator Functions:
- GEOMETRY, TRIG.
- HARDWARE
- Operator Console:
- EASY TO USE FORMAT. CONVERSATIONAL ENGLISH. THREE DIMENSIONAL HARD KEYS. 10” FLAT PANEL, COLOR LCD DISPLAY. REMOTE STOP/GO SWITCH.
- Controller Cabinet:
- HEAVY DUTY ENCLOSURE MODULAR CONSTRUCTION, 1 GHz Intel Celeron MICROPROCESSOR.
- USB AND RS232 INTERFACE
- 1” HIGH RESOLUTION DISPLAY WITH 3 D GRAPHICS
- 115VAC – 20 AMPS
- Dimension Functions:
- Millpwr G2 2 axes CNC system
- 2 axes ball screws and servo drives
- Auto lube system
- 3 axes Digital Readout system
- Cross Way cover
- Manufacturer
- Specifications
- Options/Accessories
- NT#30 SPINDLE IN LIEU OF NT#40
- Acu-Rite electrical edge finder
- 6” “Kurt” Vise with Swivel Base
- Drill chuck
- Sharp Power Kneel
- Coolant System with Chip Pan At Base
- Power Draw Bar
- R-8 Collet (Set of 11) – 1/8” – 3/4” by 1/16”
- Clamping Kit (52 pcs/steel rack)
- Halogen Work light
- Riser block 6
- 440 V transformer
- 4th axes Digital Readout System (on knee)
- Custom Freight
SHARP TMV-MP-2 Series 10" x 54" 2-Axis CNC Vertical Knee Mills
STANDARD ACCESSORIES:
ITEM: 10" x 54" 2-Axis CNC Vertical Knee Mills
MANUFACTURER: SHARP
MODEL: TMV-MP-2 / TMV-1-MP-2 / TMV-DVS-MP-2
Manufacturer:
Sharp
Machine Type
Machine Category:
Mills
Machine Sub-Category:
Vertical Knee
Control:
CNC
Position:
Vertical
Metalworking
Mill Capacity:
10" x 54"
MODEL
|
TMV-MP-2
|
|
CAPACITY |
Table Size |
10 x 54 in. |
T-slots (No., Size, Pitch) |
3 x 0.625 x 2.5 in. |
|
Table Travel : X Longitudinal |
31 in. |
|
Table travel : Y Cross |
15.5 in. |
|
Quill travel: Z Vertical |
5 in. |
|
Ram Travel |
18.5 in. |
|
Knee travel : Vertical |
15.3 in. |
|
Spindle Center to Column |
13~31.5 in. |
|
Spindle Nose to Table Top |
6.5~22.4 in. |
|
HEAD, SPINDLE |
Spindle Nose Taper |
R-8 |
Spindle Variable Speed Range |
60~4500 rpm |
|
Spindle Motor (220V/440V) |
3 HP |
|
Quill Feed (Inch/Min)(3 speeds) |
0.0015/0.003/0.006 in. |
|
Quill Diameter |
3.5 in. |
|
Head Tilt Angle (L/R) |
90° |
|
Head Tilt Angle (Up/Down) |
45° |
|
GENERAL |
Floor Area (W x D x H) |
6.9 x 6.6 x 9 ft. |
Approximate Weight |
3,500 lbs. |
|
Power Consumption (220V) |
3 KVA/8 amp |
|
Power Consumption (440V) |
3 KVA/4 amp |
MODEL
| TMV-1-MP-2
| |
CAPACITY | Table Size | 10 x 54 in. |
T-slots (No., Size, Pitch) | 3 x 0.625 x 2.5 in. | |
Table Travel : X Longitudinal | 31 in. | |
Table travel : Y Cross | 15.5 in. | |
Quill travel: Z Vertical | 5 in. | |
Ram Travel | 18.5 in. | |
Knee travel : Vertical | 15.3 in. | |
Spindle Center to Column | 13~31.5 in. | |
Spindle Nose to Table Top | 6.5~22.4 in. | |
HEAD, SPINDLE | Spindle Nose Taper | NT-40 |
Spindle Variable Speed Range | 60~4500 rpm | |
Spindle Motor (220V/440V) | 5 HP | |
Quill Feed (Inch/Min)(3 speeds) | 0.0015/0.003/0.006 in. | |
Quill Diameter | 3.5 in. | |
Head Tilt Angle (L/R) | 360° | |
Head Tilt Angle (Up/Down) | 90° | |
GENERAL | Floor Area (W x D x H) | 6.9 x 6.6 x 9 ft. |
Approximate Weight | 2,860 lbs. | |
Power Consumption (220V) | 3 KVA/8 amp | |
Power Consumption (440V) | 3 KVA/4 amp |
MODEL | TMV-DVS-MP-2
| |
CAPACITY | Table Size | 10 x 54 in. |
T-slots (No., Size, Pitch) | 3 x 0.625 x 2.5 in. | |
Table Travel : X Longitudinal | 31 in. | |
Table travel : Y Cross | 15.5 in. | |
Quill travel: Z Vertical | 5 in. | |
Ram Travel | 18.5 in. | |
Knee travel : Vertical | 15.3 in. | |
Spindle Center to Column | 9.8-28.3 in. | |
Spindle Nose to Table Top | 1.6-16.9 in. | |
HEAD, SPINDLE | Spindle Nose Taper | R-8 |
Spindle Variable Speed Range | 60~4500 rpm Digital Variable Speed | |
Spindle Motor (220V/440V) | 3 HP | |
Quill Feed (Inch/Min)(3 speeds) | 0.0015/0.003/0.006 in. | |
Quill Diameter | 3.5 in. | |
Head Tilt Angle (L/R) | 90° | |
Head Tilt Angle (Up/Down) | 45° | |
GENERAL | Floor Area (W x D x H) | 7.08 x 6.66 ft. |
Approximate Weight | 2,860 lbs. | |
Power Consumption (220V) | 3 KVA/15 amps | |
Power Consumption (440V) | 3 KVA/7.5 amps |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
