- Description
- 2-axis auto and manual down feed or 3-axes Auto with option of downfeed control
- 3HP Motor
- Spindle Speed 1,720 rpm
- 2-V Ways
- Extra Wide Bed
- Double Longitudinal “V” Ways and Cross “V” Ways

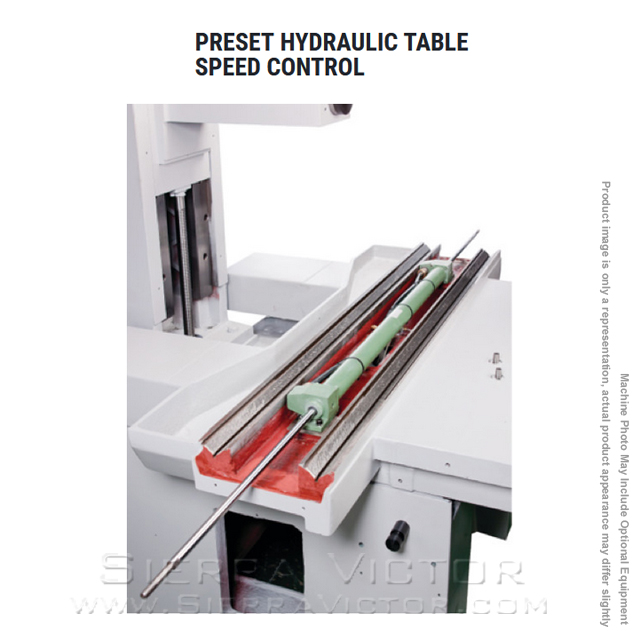

- Hydraulic Table (with Over Travel Protection)
- Auto Cross feed (Intermittent and Continuous Mode)
- Slide Ways are Hand Scraped and Turcite Coated

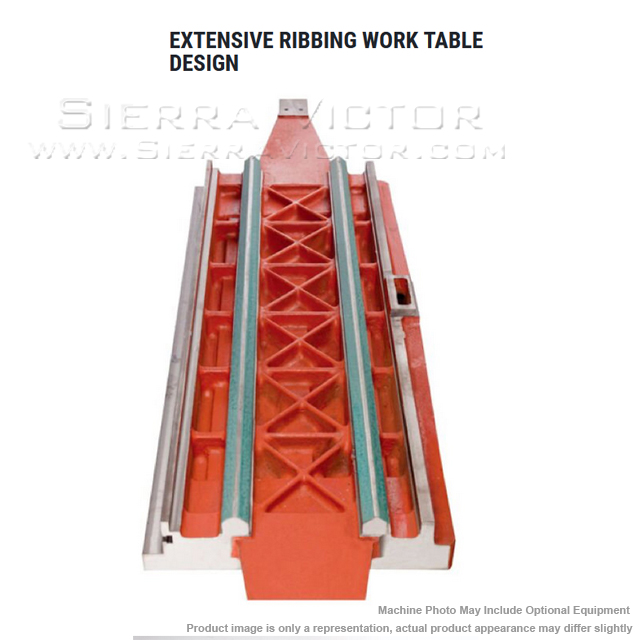

- Annealed Castings for Greater Machine Stability

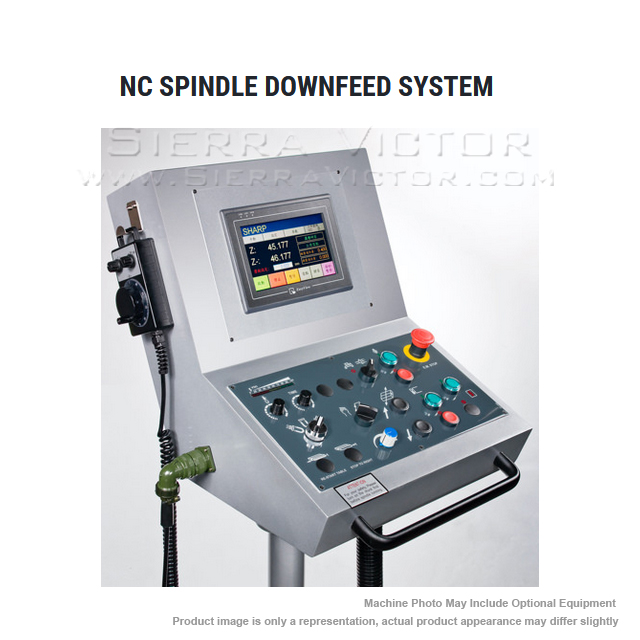

- An Optional Programmable Spindle Downfeed System with User Friendly Control
- Grinding wheel 14” x 1.25” x 5”
- Auto Lube System
- 12 Gal Coolant System
- Wheel Adapter/Flange
- Wheel Balancing Arbor
- Grinding wheel balancing stand
- Diamond Dresser
- Splash guard both front and back (not shown on photo)
- Tool Kit includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screw driver, oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

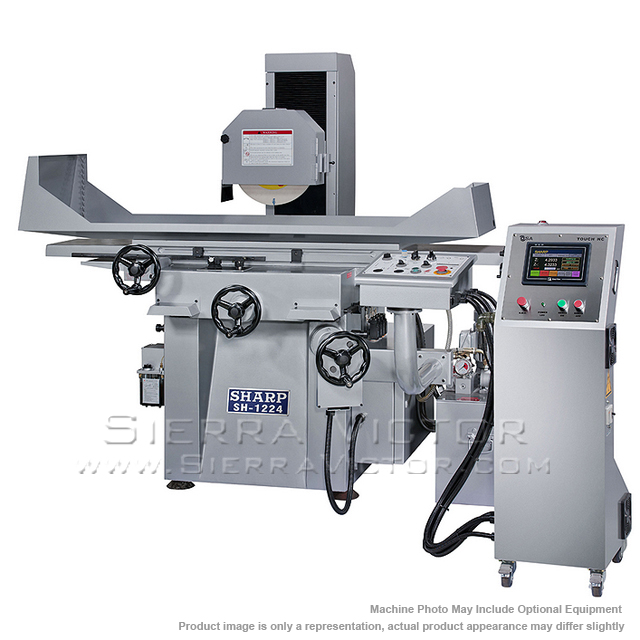

SHARP 12" x 24" Automatic Surface Grinder SH-1224
STANDARD EQUIPMENT:
ITEM: 12" x 24" Automatic Surface Grinder
MANUFACTURER: SHARP
MODEL: SH-1224
Manufacturer:
Sharp
|
CAPACITY
|
Table travel
|
14" x 27.6"
|
|
Spindle center to table surface
|
19.3"
|
|
|
TABLE
|
Working Surface (W x L)
|
11.6" x 23.6"
|
|
Longitudinal hydraulic table feed (ft/min)
|
6.6-82 IPM
|
|
|
FEED
|
Intermittent cross feed (in./min)
|
0.004-0.4 IPM
|
|
Continuous Cross Feed (in/min)
|
39 IPM
|
|
|
Number of graduations on dial
|
200
|
|
|
Feed per graduation
|
0.0005”
|
|
Feed per revolution |
0.1" |
|
|
Rapid Down feed (optional)
|
18.9 IPM
|
|
|
VERTICAL TRAVEL
|
Number of graduations
|
500
|
|
Feed per graduation
|
0.0001”
|
|
|
Feed per revolution
|
0.05”
|
|
|
Rapid down feed (optional)
|
18.9 IPM
|
|
|
SPINDLE AND WHEEL
|
Wheel size (OD x Width x ID)
|
14" x 1.25" x 5"
|
|
Spindle motor
|
3 HP
|
|
GENERAL |
Coolant system motor
|
1/8 HP
|
Approximate Weight
|
4,000 lbs.
|
|
Dimensions
|
76.8" x 73.6" x 71"
(L xW xH) |
|
|
TOTAL POWER CONSUMPTIONS
|
220V
|
5.4KVA/25 amps
|
|
440V
|
5.4KVA/12.5 amps
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
|
PART #
|
ITEM
|
|
440T4
|
440V Transformer - 3HP (for Micro Control Down feed System) 3KVA
|
|
KET-3060
|
12” x 24” Kanetsu Electromagnetic Chuck w/control
|
|
KESL-3060
|
12” x 24” Kanetsu Electromagnetic Chuck w/control (Fine Pole)
|
|
LBP-1224
|
12” x 24” Walker Electromagnetic Chuck w/control (Fine Pole)
|
|
SH-011A
|
Touch screen Programmable Microprocessor Control Spindle /
Down feed System with Z axis motion control |
|
—
|
Dresser Compensation package installed, needs to purchase with SH-50, SH-011 – Down feed System Control
|
|
SH-07
|
Parallel Dresser (Manual)
|
|
SH-08
|
Parallel Dresser (Semi-Automatic)
|
|
SH-09
|
Radius and Angle Dresser
|
|
WL-110V55W
|
Halogen Work light
|
|
CS&DC
|
Coolant System w/Dust Collector (25 Gal)
|
|
CS&PF
|
Coolant System w/Paper Filter (25 Gal)
|
|
CS&PF&MS
|
Coolant System w/Paper Filter & Magnetic Separator (25 Gal)
(for SH-920 & SH-1224) |
|
DC
|
Dust Collector Only
|
|
PF
|
Paper Filter Refill
|
|
SH-FLANGE 1124
|
Spare Wheel Adaptor (Flange) SH-920 – SH1224
|
|
SH-13
|
Radius Forming Attachment
|
|
SH-14
|
Angle Forming Attachment
|
|
SH-15
|
Rapid Traverse up/down wheel head
|
|
SH-16
|
Creep Feed
|
|
MTR-SH1224-5HP
|
5 HP in lieu of 3 HP motor (factory order only)
|
|
—
|
*** CE mark ( factory order only)
|
|
FG-SH1224
|
Fagor 20i D.R.O.
|
|
FG-40i-SH1224
|
Fagor 40i D.R.O.
|
|
AR-SH1224
|
Acu-Rite 200S D.R.O.
|
|
NW-SH1224
|
Newall DP700 D.R.O.
|
|
—
|
Factory Installation - D.R.O. System
|
***All Magnetic Chucks Includes Free Installation***
