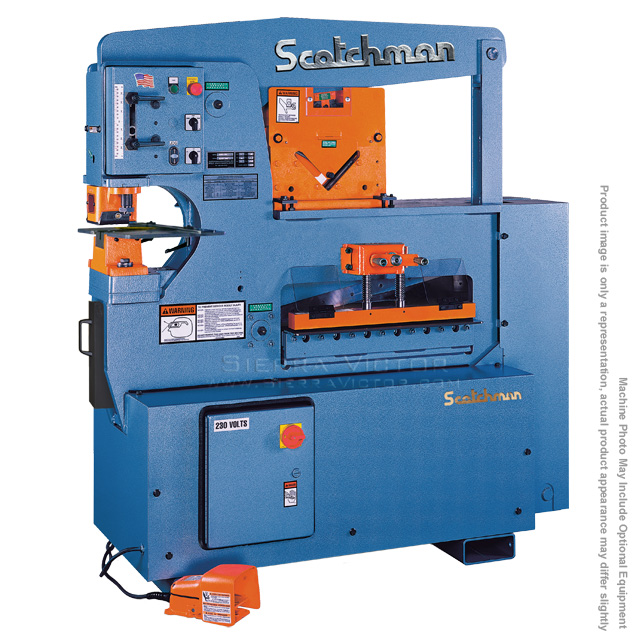

SCOTCHMAN 65 Ton Hydraulic Ironworker 6509-24M

• If you are in the metal working or custom fabrication industry, the Scotchman 6509-24M is a must have for your shop. This 65-ton hydraulic ironworker can punch 1-1/16” in 3/4” thick, 65,000 tensile plate. It has the largest flat bar shear capacity (1″ x 6″, 1/2" x 12″ and 1/4″ x 24″) and the largest angle shear capacity (6” x 6” x 3/8” and 5″ x 5″ x 1/2″) of any machine in its class. Combining this machine's large capacity with its large open tool table (which accepts up to a 24” press brake and up to a 5” channel shear) makes this machine the most versatile and flexible machine on the market. Like all of Scotchman Industries ironworkers, the 6509-24M is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.
• Single Operator, 4 Stations
• 65 Ton Punch Station (1-1/16" in 3/4")
• Keyed Punch Ram for Safety
• 9" Throat Depth
• Punch Gauging Table w/Fence and Scale
• Die Holder Complete with 2" Die Insert
• Punch Nut with Wrench and Stripper
• One Round Punch & Die: Max. Dia. 1-1/4"
• Punch Jog Control
• Adjustable Electric Stroke Control with Scale
• Electric Remote Foot Pedal
• 24" Flat Bar Shear with 4-Way Reversible Blade (1" x 6", 1/4" x 24")
• Shear Table with Miter Fence
• Angle Shear Capacity at 90° 6" x 6" x 3/8" and 5" x 5" x 1/2"
• Tool Table Work Area
• Slug Receptacle
• Two-Stage Hydraulic Pump
• Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
• 230/460 volt /3 Phase Electrics (must specify voltage)
• All Guards Necessary to Comply with ANSI B 11-5 Standards
• Forklift Accommodations
• Made in the USA
