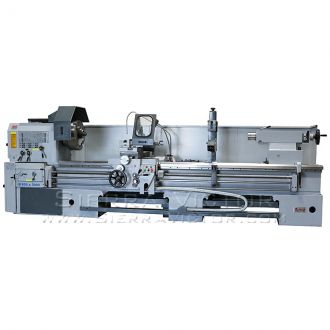

LION 32" x 196" Engine Lathe 32-CU-196

Name: LION 32" x 196" Engine Lathe 32-CU-196
Brand: Lion
SKU: 32-CU-196
Availability: InStock
Rating: 4.9 (8 reviews)

32" x 120"+

Availability: Call for Availability

Prices and Inventory are subject to change without notice.
Call or email us to verify prior to order.

* Interest rates based on credit approval and are subject to change.

Swing Over Bed	32"
Swing Over Cross Slide	21"
Swing In The Gap	38"
Length In Gap From Face Plate	8"
Distance Between Centers	196"
Spindle Nose	D1-15
Spindle Bore	6-1/16"
Spindle Bearings	SKF
Number Of Spindle Speeds	16
Range Of Speeds	5.6 - 1000 RPM
Number Of Threads	64
Range Of Inch Threads	60 - 1/4 TPI
Range Of Metric Threads	120 - .5
Number Of Feeds	64
Range Of Longitudinal Feeds	.0019 - .447
Range Of Cross Feeds	.0015 - .351
Lead Screw Diameter	2"
Lead Screw Pitch	2 TPI
Max. Traverse Of Cross Slide	19"
Max. Traverse Of Top Slide	10"
Taper Turning Working Length	15 - 3/4"
Maximum Taper	+ / - 10°

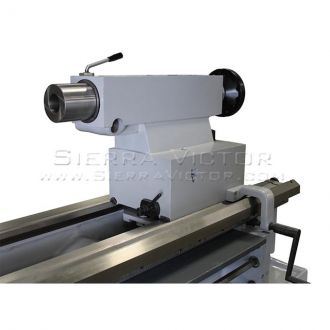

Quill Diameter	4-7/8"
Quill Taper Bore	6 MT
Maximum Quill Stroke	10"
Lateral Stroke Of Tailstock	+ / - 3/8”
Width Of Bed	22"
Ways	Hardened & Ground
Motor Power	20 H.P.
Electrics	3 Phase, 220V
Length	276"
Width	69"
Height	69"
Overall Weight Lbs. (approx.)	18,300
