- Description
- The H310 M is a gravity feed autocut bandsaw capable of mitering 45 to the left and 60 degrees to the right.
- The cycle start button is located in the trigger switch for safety.
- The blade will tun off at the end of the cut. The solenoid will hold the sawframe where lifted. The Autocut will insure that each cut is feed exactly at the same rate, eliminating the need to open and close the valve each cut.

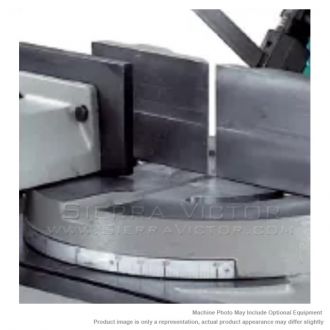

- The vise is mounted in a t slot with a quick release handle it can be moved from either side of the cut.
- Easy operator controls
- Large easy to read scale ensures accurate miters
- Carbide guides w/ rollers
- One Bi-metal sawblade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight
KMT SAW 10" AutoCut Mitering Band Saws H310M
STANDARD EQUIPMENT:
ITEM: 10" AutoCut Mitering Band Saw
MANUFACTURER: KMT SAW
MODEL: H310M
Manufacturer:
KMT Saw
MODEL
|
H310M
|
|
0 Degrees
|
Round
|
10"
|
Square
|
9-1/2"
|
|
Rectangle
|
7" x 11"
|
|
45 Degrees Right
|
Round
|
8-1/4"
|
Square
|
7-1/2"
|
|
Rectangle
|
6-1/4" x 7-3/4"
|
|
45 Degrees Left
|
Round
|
17"
|
Square
|
6-1/4"
|
|
Rectangle
|
3-3/4" x 7"
|
|
60 Degrees Right
|
Round
|
5-1/4"
|
Square
|
4-1/4"
|
|
Rectangle
|
3-3/4" x 5"
|
|
Blade Drive HP
|
2
|
|
Available Electrics
|
230/3 or 220/1 - 460/3 (please specify)
|
|
Blade Speeds
|
60-360 fpm
|
|
Blade Size
|
H 1" x s .035" x L 9' 1"
|
|
Material Working Height
(from floor to table top) |
37"
|
|
Vise Opening
|
12"
|
|
Machine Weight
|
850 lbs.
|
|
Machine Dimensions
|
W 38" x L 66"
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
AC200 |
5' x 15" wide freestanding conveyor (additional 5' sections can bolt together) |
AC250 |
5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together) |
AC102 |
6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray |
AC103 |
Additional 6' connecting to AC102 |
