- Description
- The CT 350 Series Machines are high speed circular saws for aluminum extrusions and other non-ferrous materials. These machines feature swiveling capability for mitering and swiveling/tilting capability for compound mitering.
- Model CT 350 SA - Semi-automatic operation, with air over hydraulic system providing optimum sawing rates with minimum effort by the operator. Optimum cutting rates are yielded with controls over the sawing pressure and sawing speed. Air vises are equipped with infinitely variable clam-ping pressure to prevent distortion of structurals.
- Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
- One Carbide tipped saw blade
- Low voltage control
- TEFC 3 phase drive motor
- Spray Mist Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

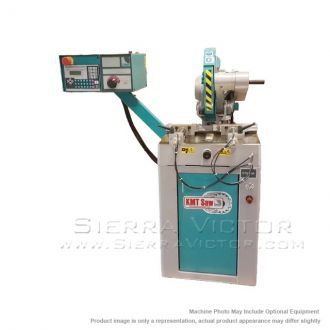

KMT SAW 14" Semi-Automatic High Speed Circular Saw CT350SA
STANDARD EQUIPMENT:
ITEM: 14" Semi-Automatic High Speed Circular Saw
MANUFACTURER: KMT SAW
MODEL: CT 350 SA
Manufacturer:
KMT Saw
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Control:
Semi-Automatic
Metalworking
Saw Capacity:
14"+
|
Capacities:
|
Round:
|
Square:
|
Rectangular:
|
|
|
0 deg
|
4.5"
|
4"
|
3" x 7.75"
|
|
|
45 deg. right
|
4.5"
|
4"
|
3" x 5.75"
|
|
|
45 deg. left
|
4.5"
|
4"
|
3" x 5.75"
|
|
|
45 deg. vert. left
|
2.5"
|
2.25"
|
2" x 7"
|
|
|
Blade Specifications
|
14" (350 mm)
|
|||
|
Motor
|
2.5 HP
|
|||
|
Blade Speeds (2 speed)
|
1,800/3,600 RPM
|
|||
|
Electricals (specify)
|
220V/3 or 460V/3 (specify)
|
|||
|
Max Vise Opening
|
8"
|
|||
|
Work Height
|
34.25"
|
|||
|
Coolant Capacity
|
2 gallons
|
|||
|
Net Weight
|
700 lbs.
|
|||
|
Machine Dimensions
|
Across front
|
43" W
|
||
|
Front to back
|
36" L
|
|||
Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
AC200 |
5' x 15" wide freestanding conveyor (additional 5' sections can bolt together) |
AC250 |
5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together) |
AC102 |
6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray |
AC103 |
Additional 6' connecting to AC102 |
AC121 |
Top Clamp |
AC132 |
Chip Vac |
